Home >> Lexus >> 2002 >> SC 430 >> Repair and Diagnosis (Single Page) >> Brakes >> Anti-Lock Brakes >> Abs With EBD & BA & TRAC & VSC System - Diagnosis >> Location

Abs With EBD & BA & TRAC & VSC System - Diagnosis: Location

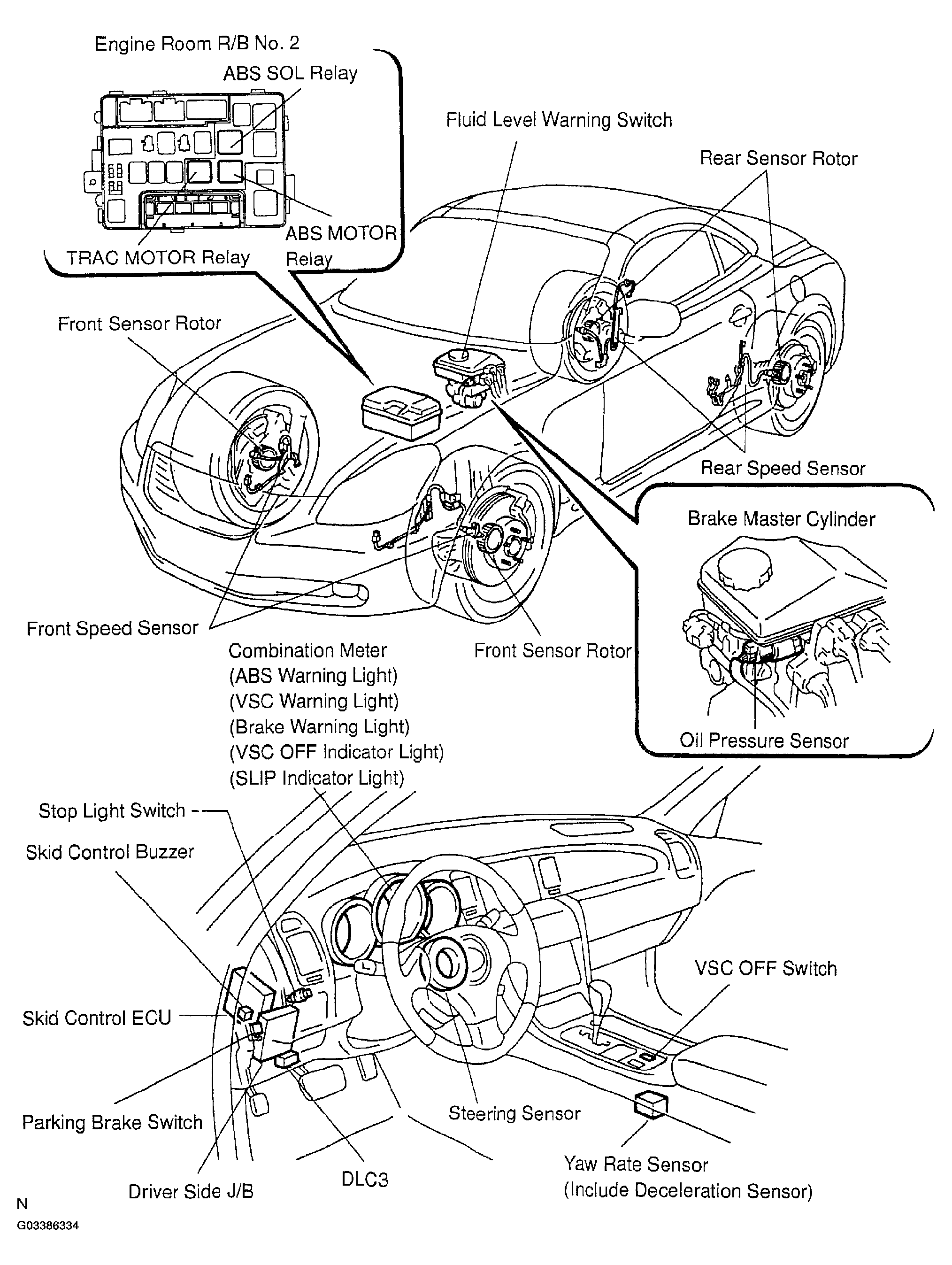

Fig 1: Locating ABS With EBD & BA & TRAC & VSC System Components

G03386334

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
