DTC C1336/39: Zero Point Calibration Of Deceleration Sensor Undone: Wiring Diagram

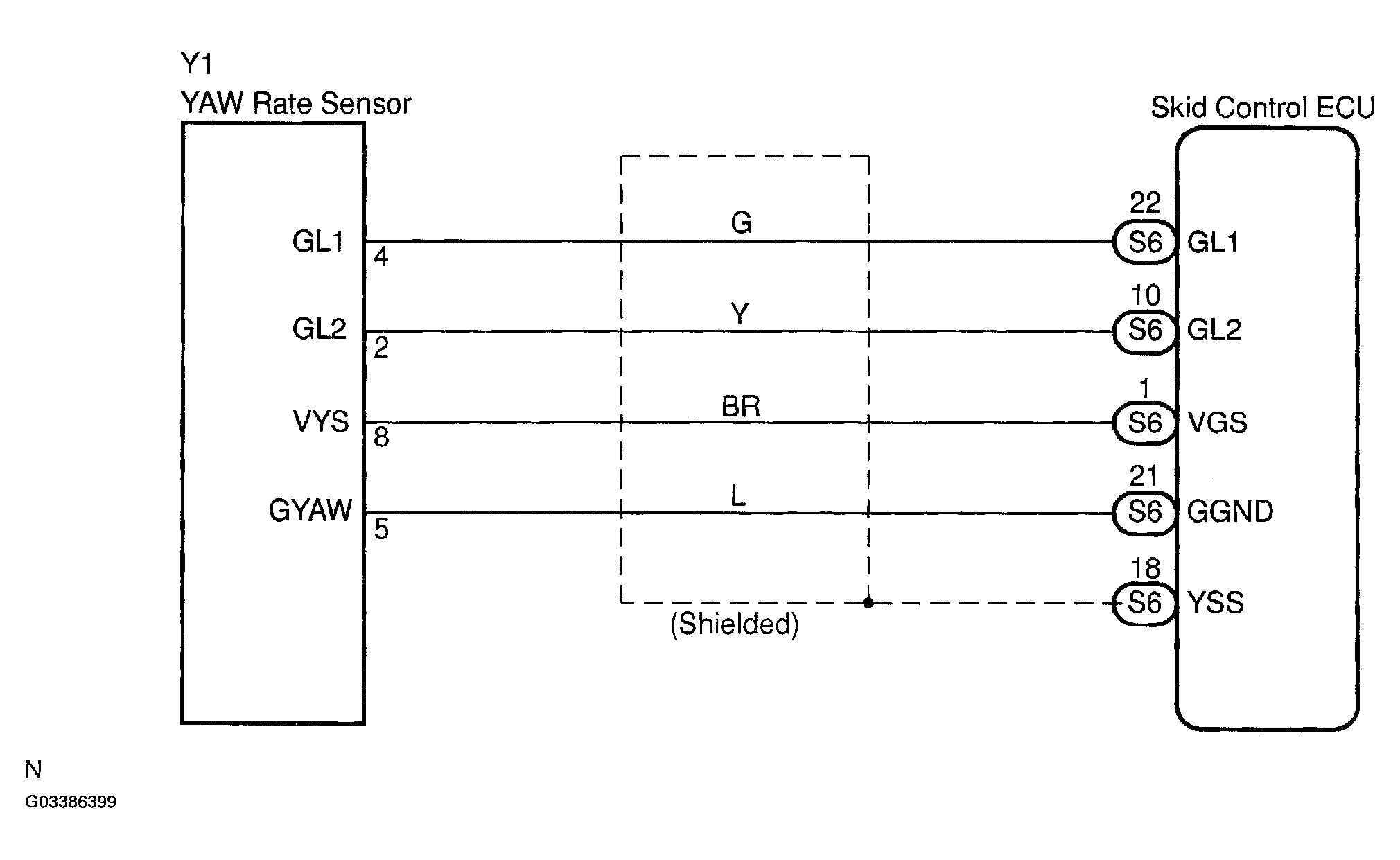

Fig 1: Yaw Rate Sensor Wiring Diagram

G03386399

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
