DTC C1246/46: Master Cylinder Pressure Sensor Circuit: Wiring Diagram

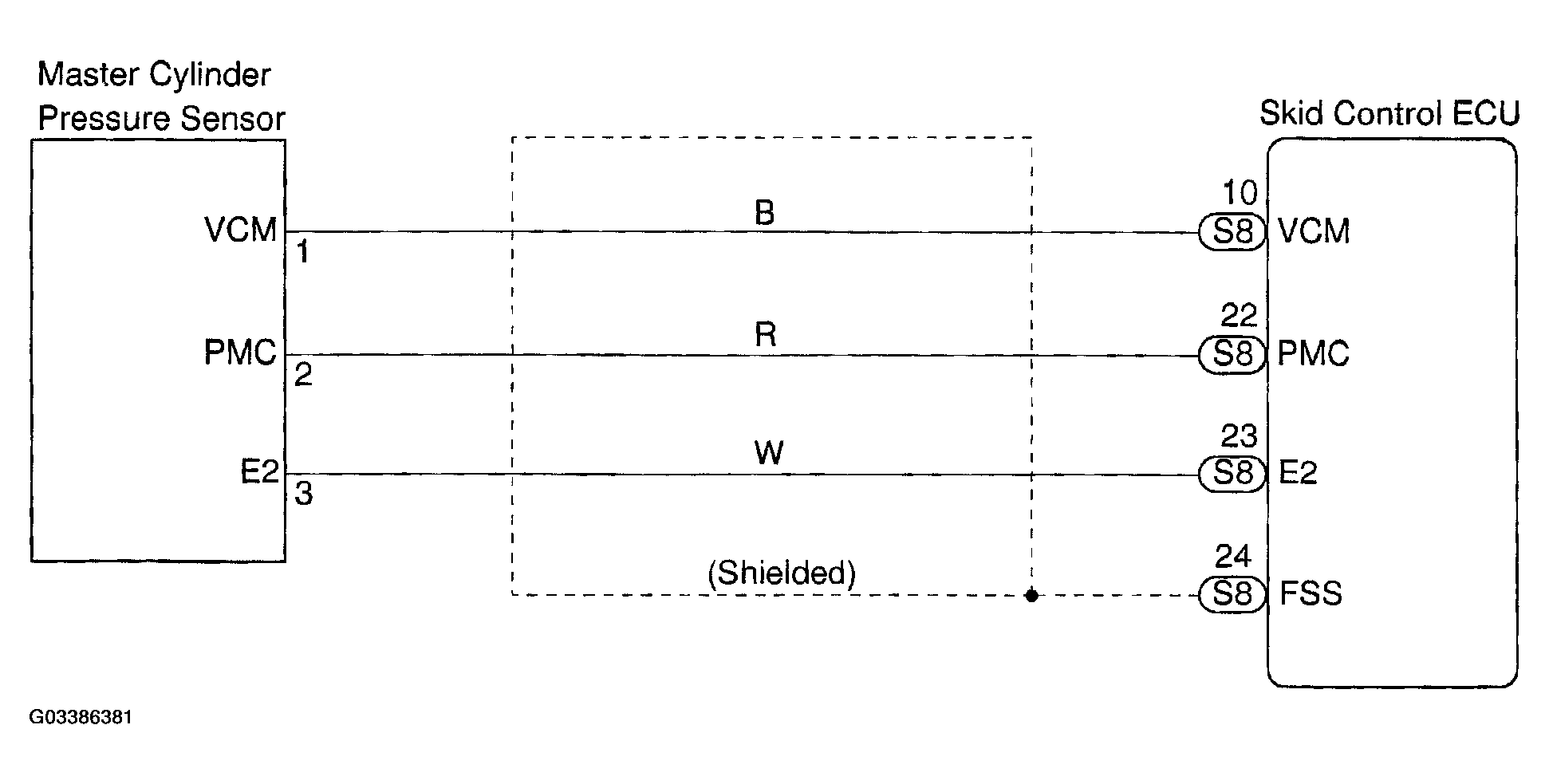

Fig 1: Master Cylinder Pressure Sensor Wiring Diagram

G03386381

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
