DTC C1242/42: IG2 Power Source Circuit: Wiring Diagram

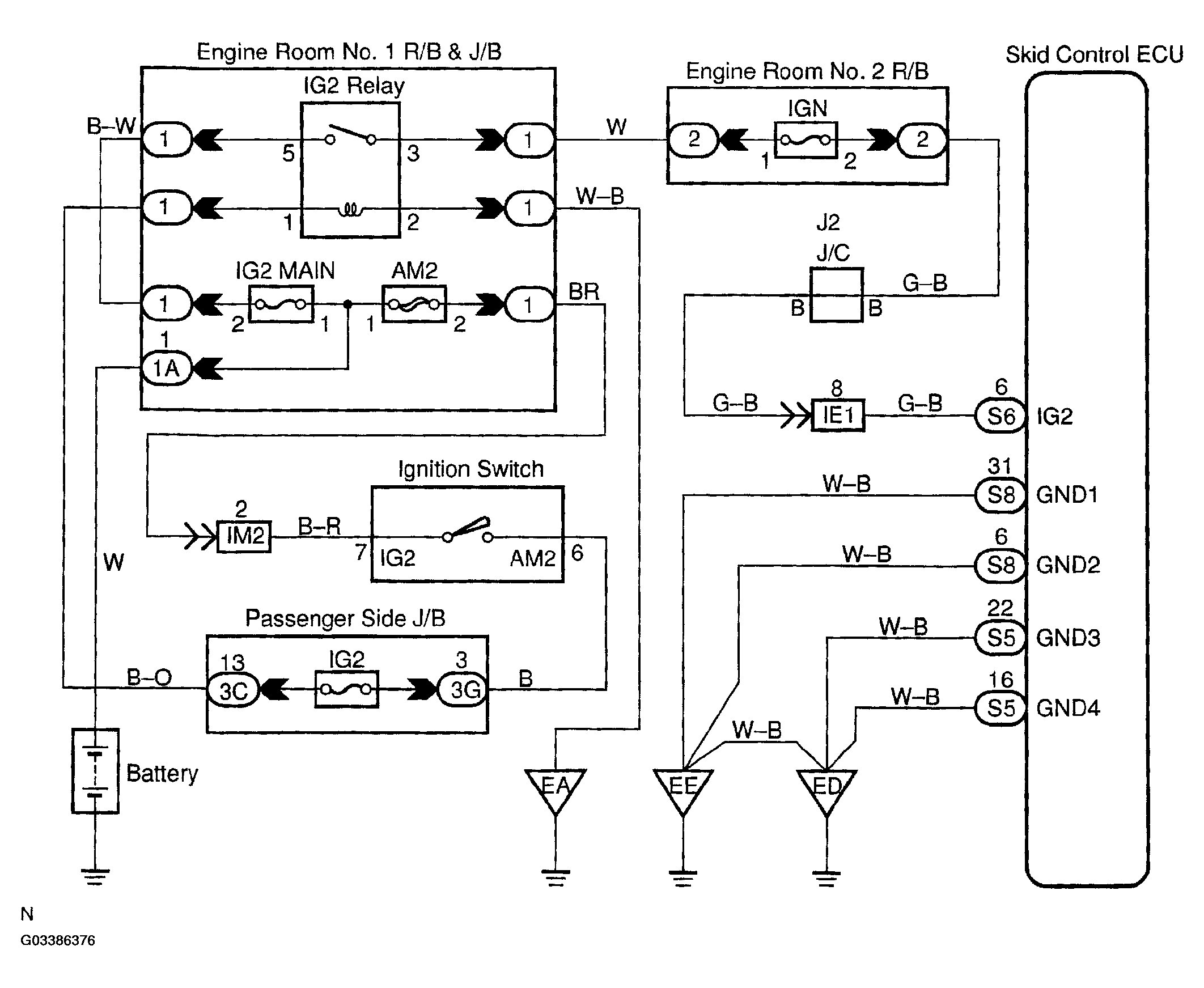

Fig 1: Wiring Diagram - IG2 Power Source

G03386376

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
