DTC C1241/41: IG Power Source Circuit, DTC C1257/57: IG Power Source: Wiring Diagram

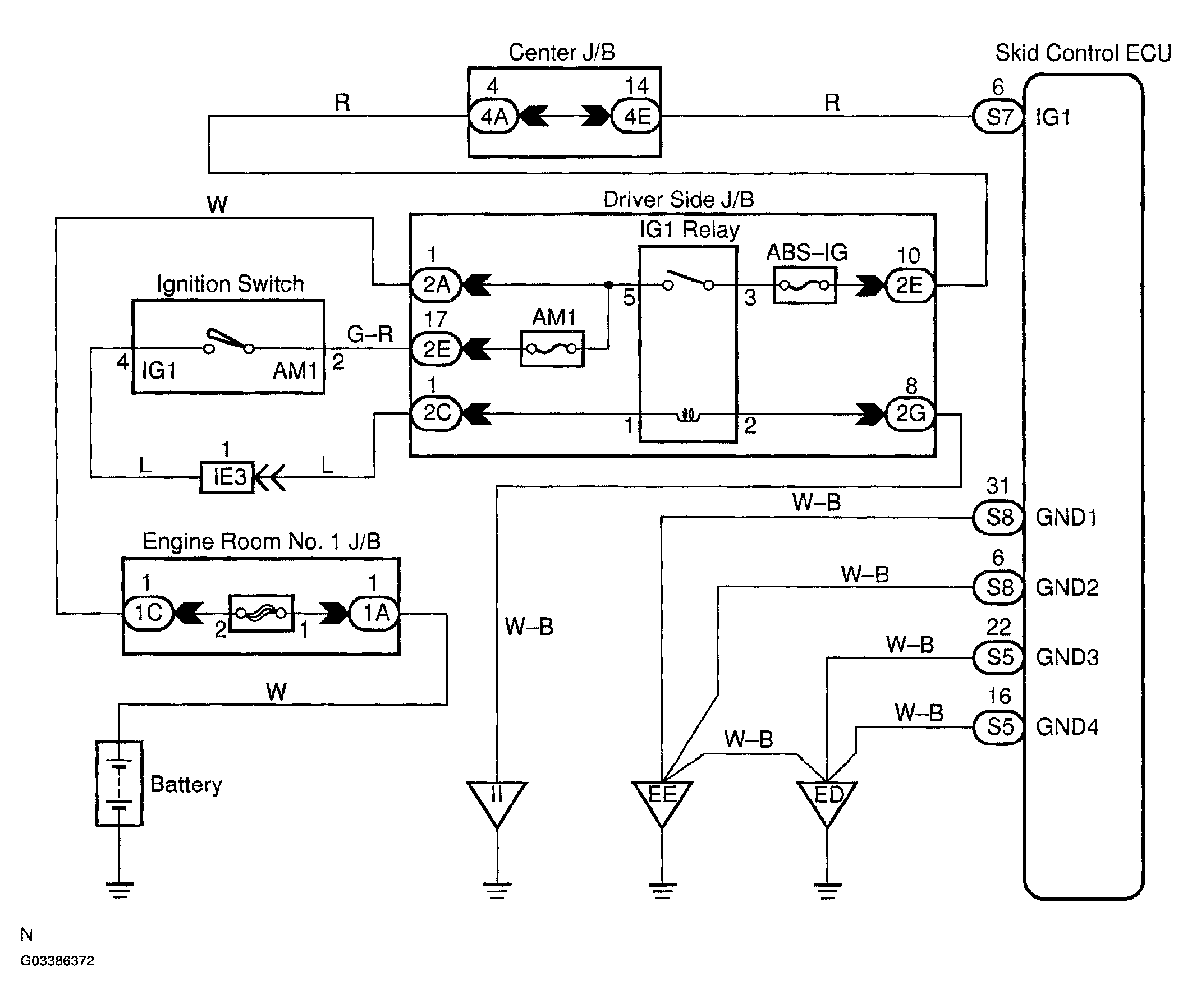

Fig 1: Wiring Diagram - IG Power Source

G03386372

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
