DTC C1210/36: Zero Point Calibration Of Yaw Rate Sensor Undone: Wiring Diagram

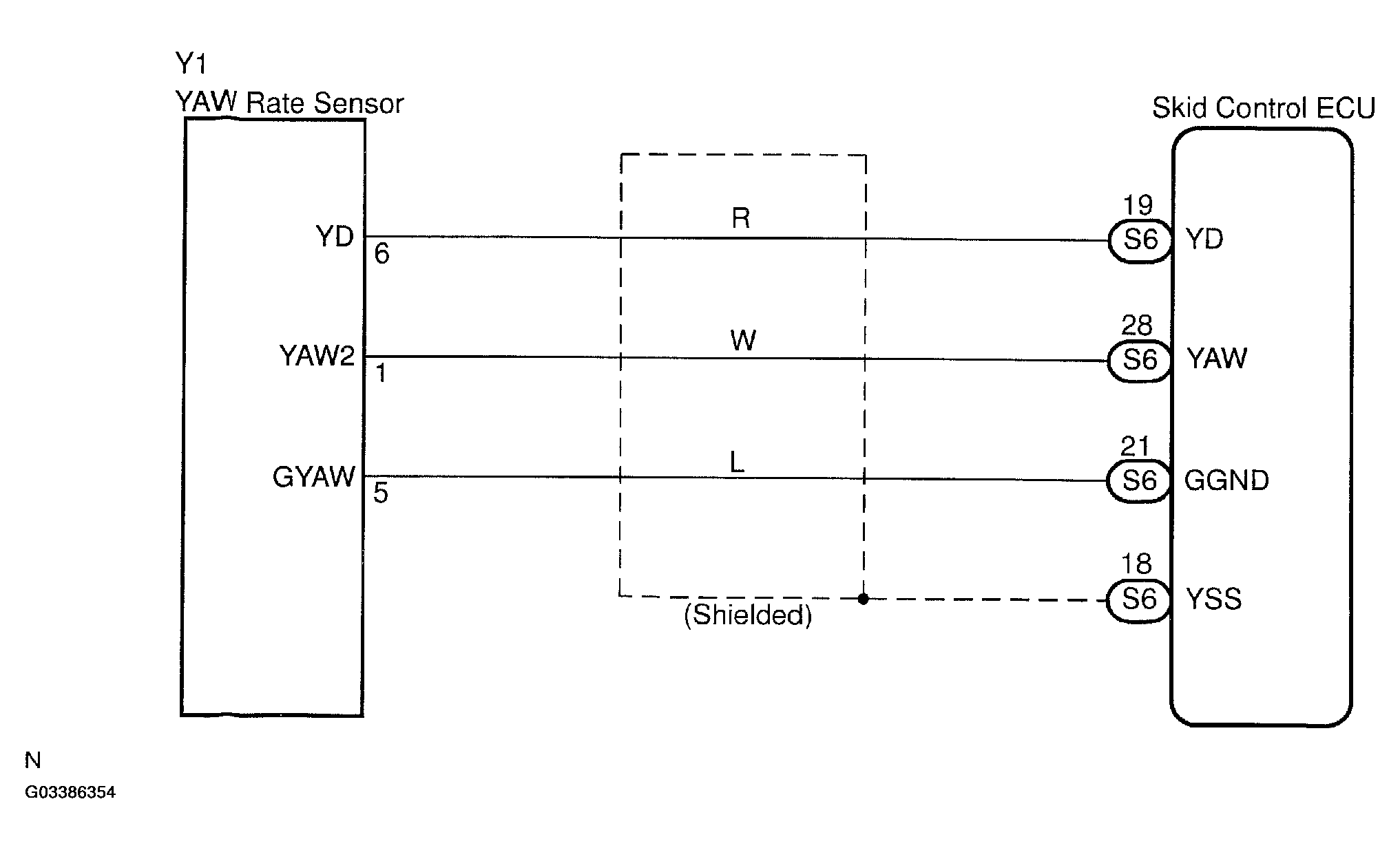

Fig 1: Yaw Rate Sensor Zero Point Calibration Done - Wiring Diagram

G03386354

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
