Brake Warning Light Circuit: Wiring Diagram

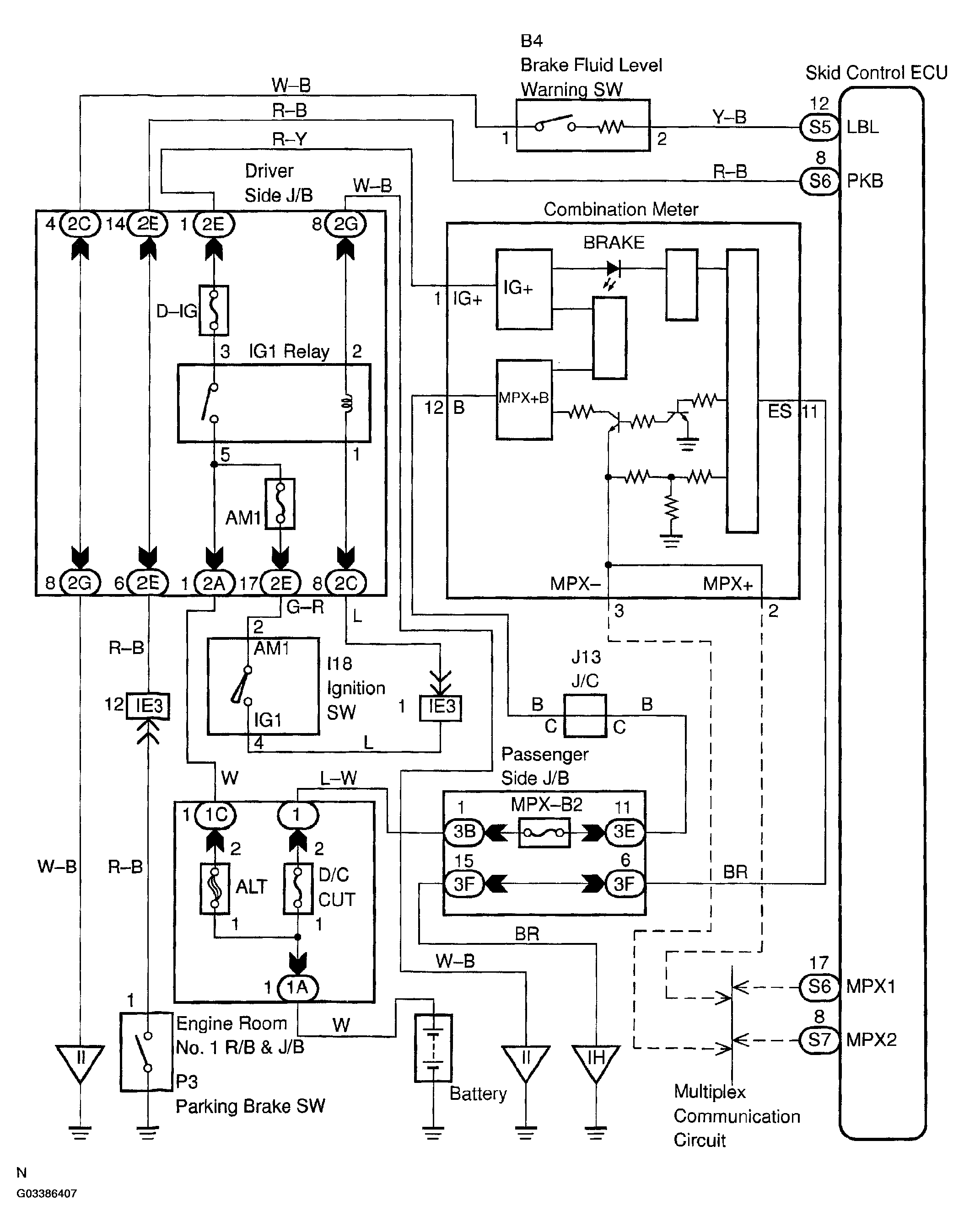

Fig 1: Brake Warning Light Wiring Diagram

G03386407

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
