Abs Warning Light Circuit (Does Not Light Up): Wiring Diagram

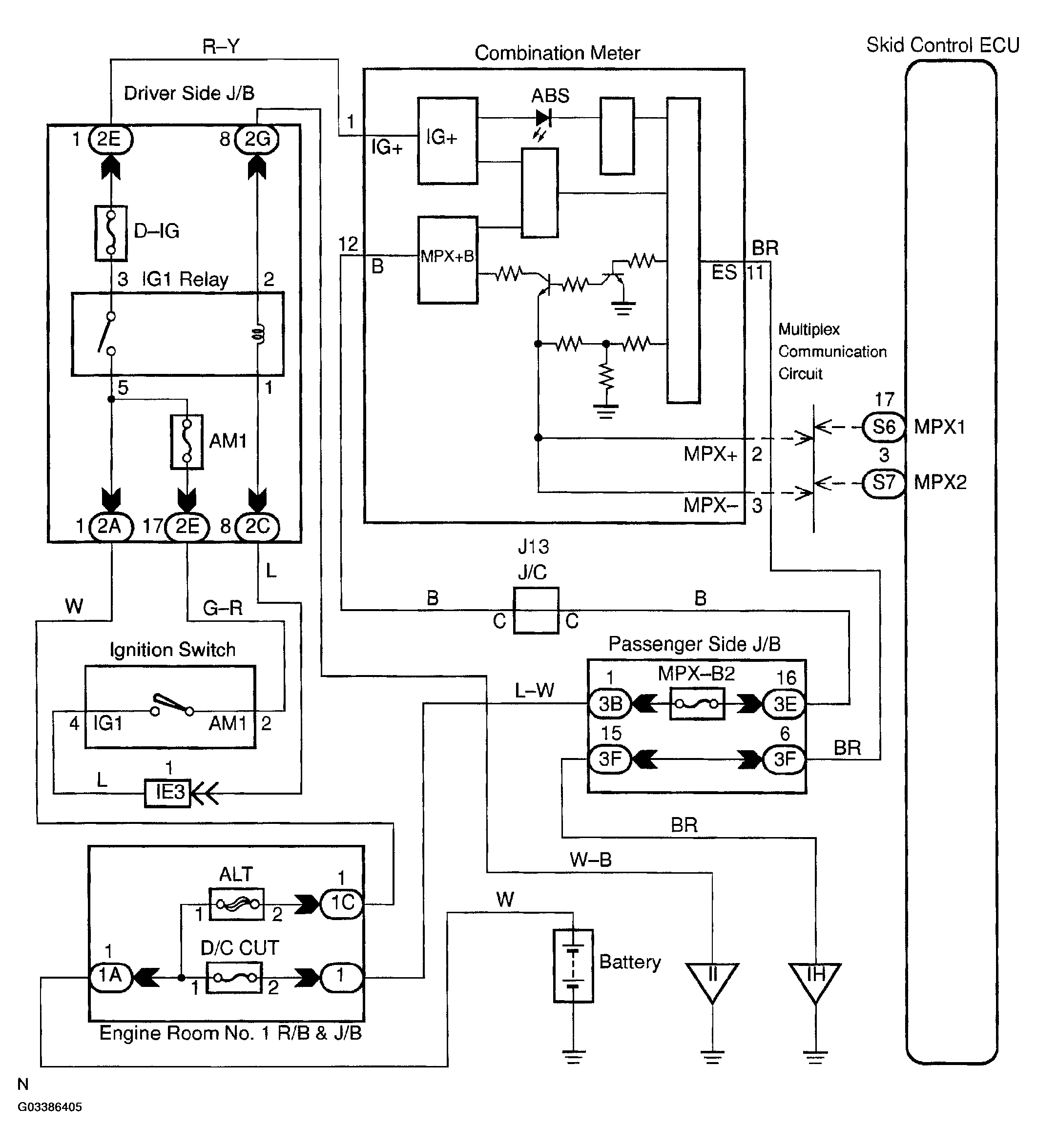

Fig 1: ABS Warning Light Wiring Diagram

G03386405

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
