DTC B2528: Luggage Door Close Switch Malfunction: Wiring Diagram

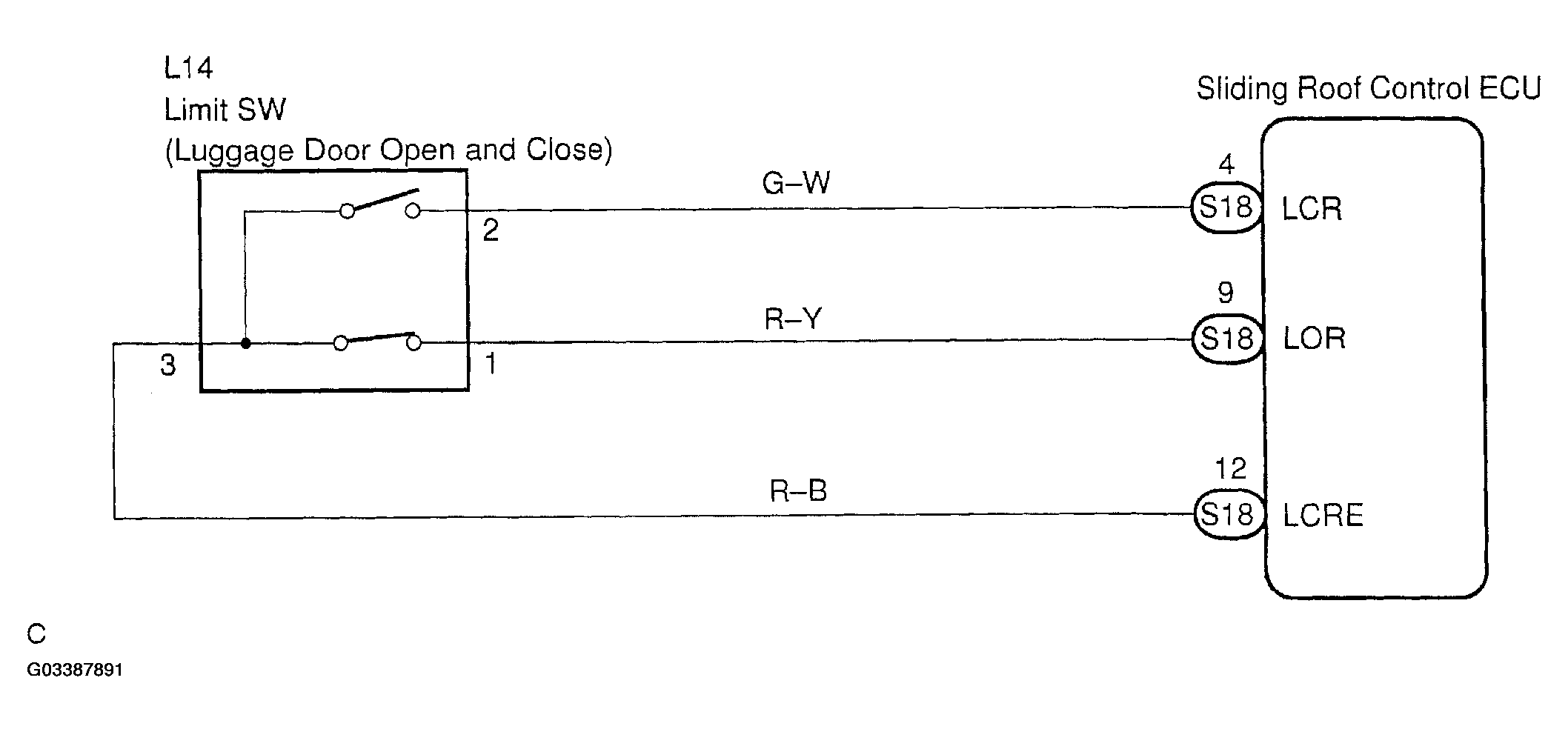

Fig 1: Luggage Door Close Switch Malfunction Wiring Diagram

G03387891

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
