DTC B2514: Short In Luggage Closer Motor LH Circuit: Wiring Diagram

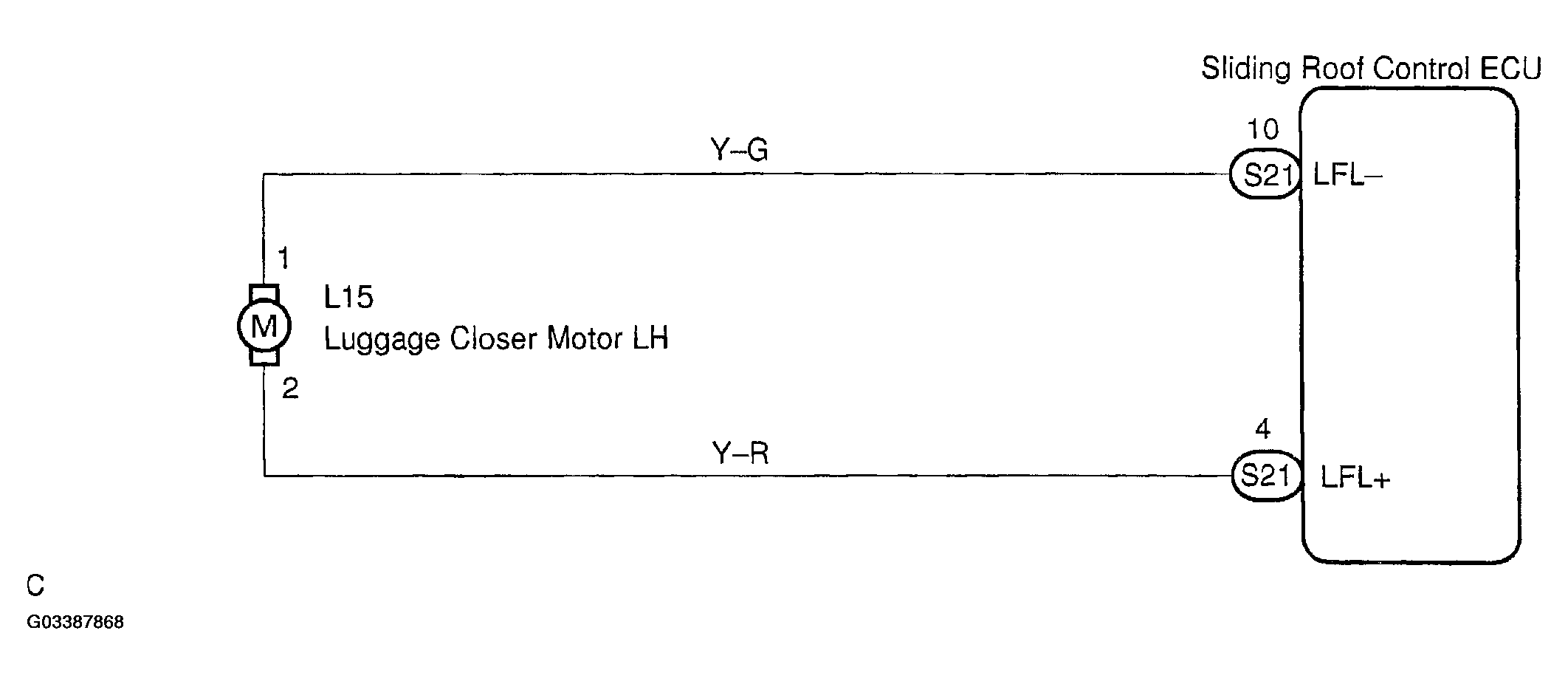

Fig 1: Short In Luggage Closer Motor LH Circuit Wiring Diagram

G03387868

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
