DTC B2505: Short In Luggage Door Drive Motor RH Circuit: Wiring Diagram

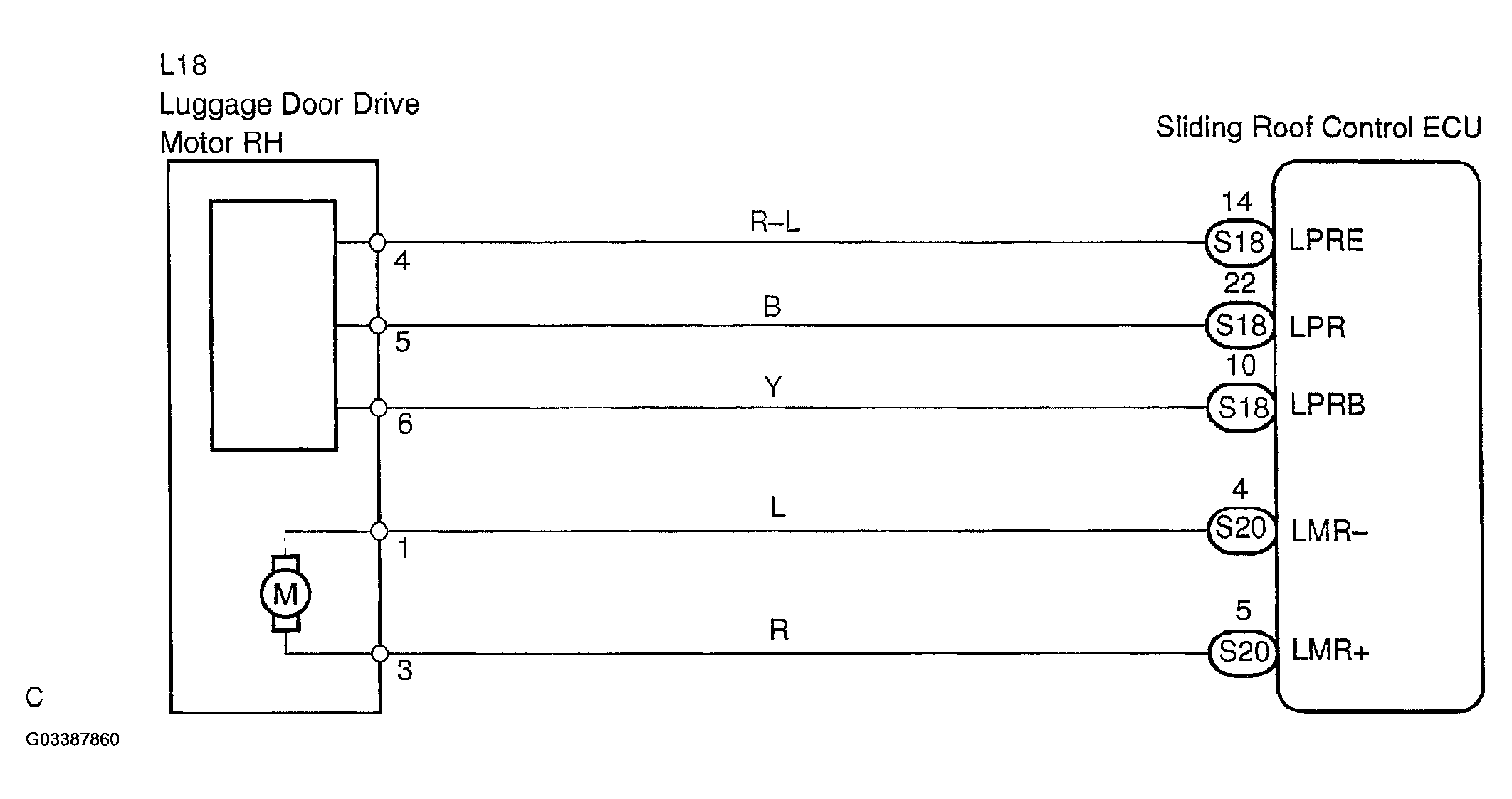

Fig 1: Short In Luggage Door Drive Motor RH Circuit Wiring Diagram

G03387860

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
