DTC B2501: Short In Roof Drive Motor RH Circuit: Wiring Diagram

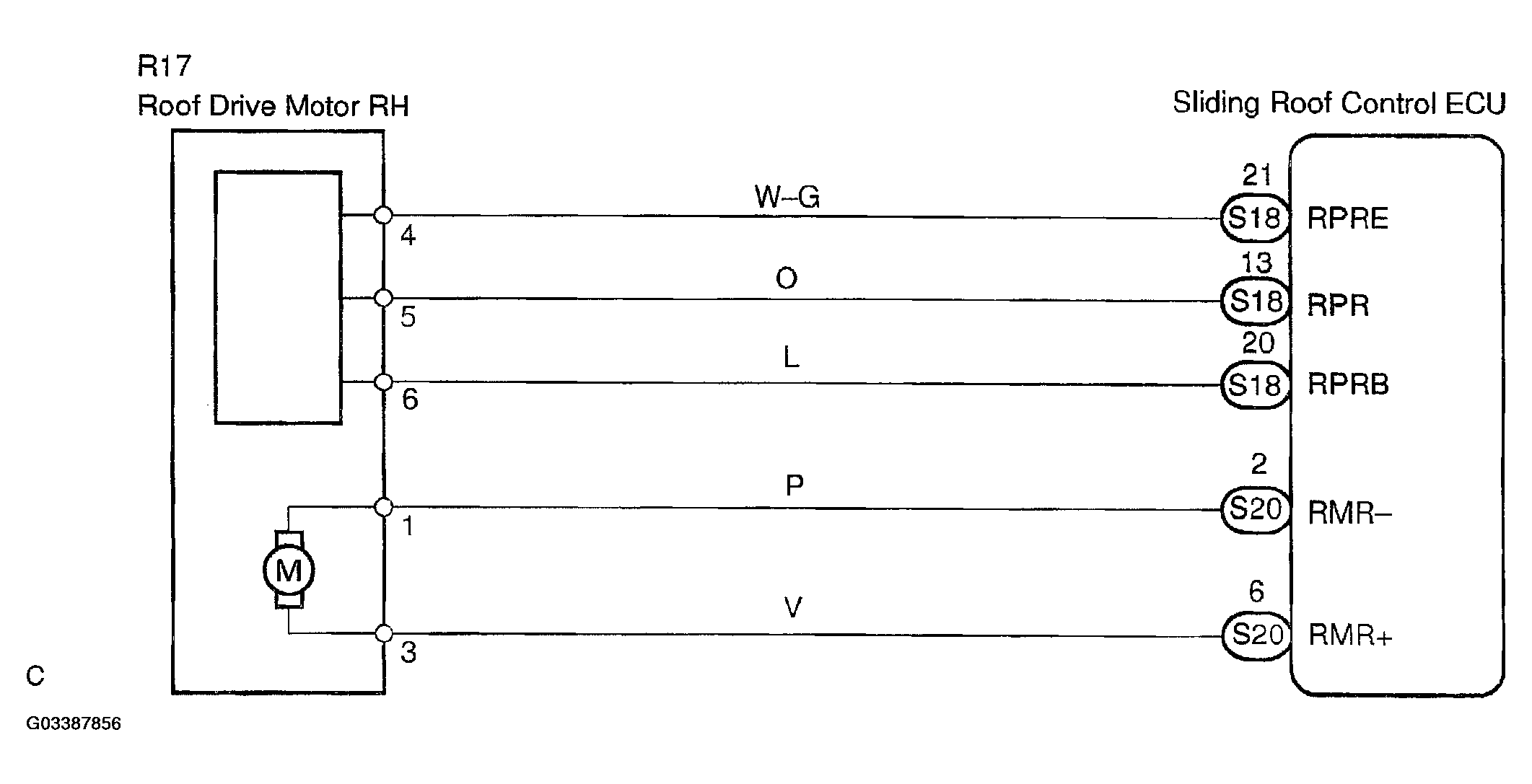

Fig 1: Short In Roof Drive Motor RH Circuit Wiring Diagram

G03387856

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
