Luggage Door Opening Switch Circuit: Wiring Diagram

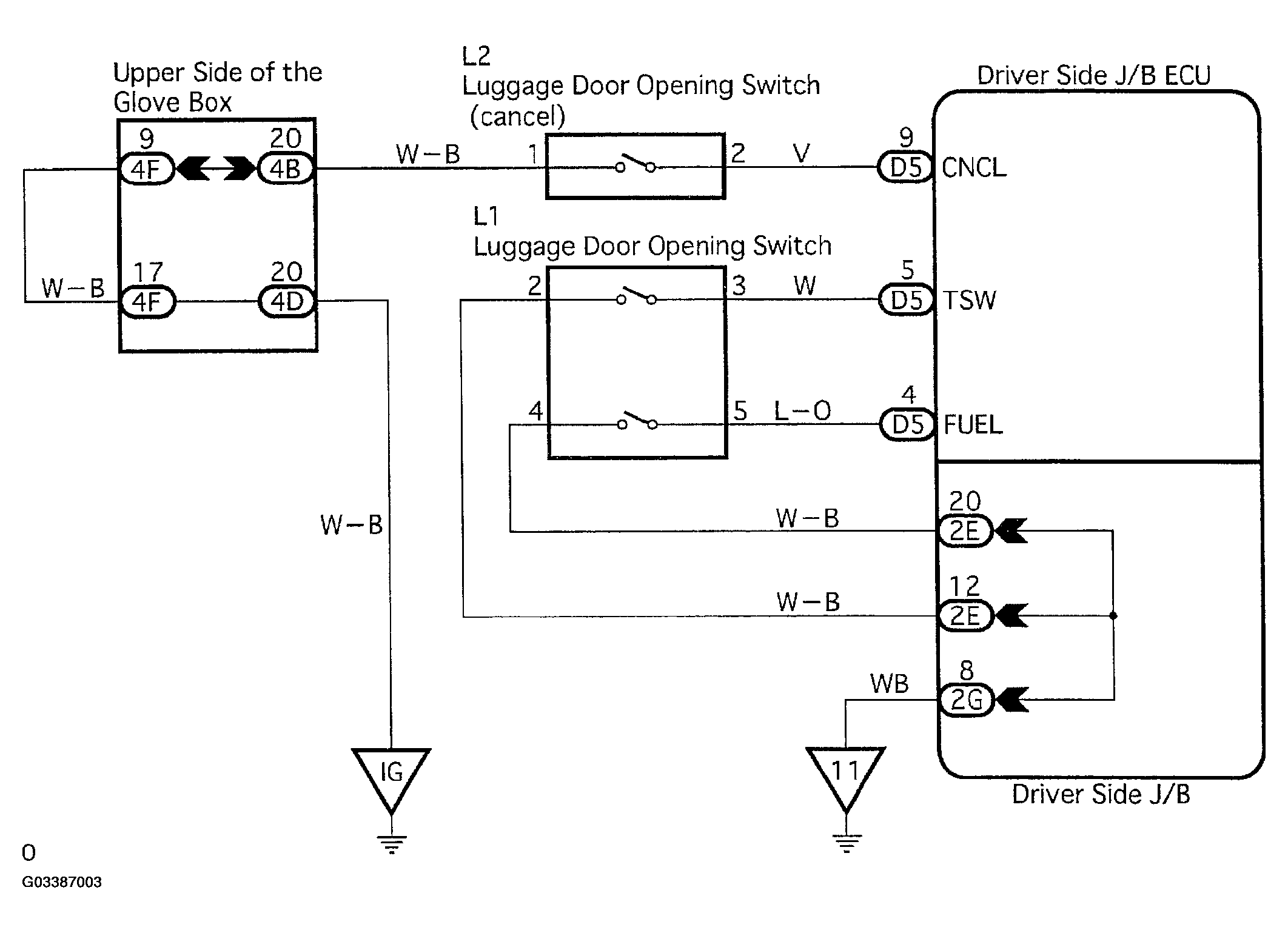

Fig 1: Luggage Door Opening Switch Circuit Wiring Diagram

G03387003

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
