Luggage Compartment Door Lock Circuit: Wiring Diagram

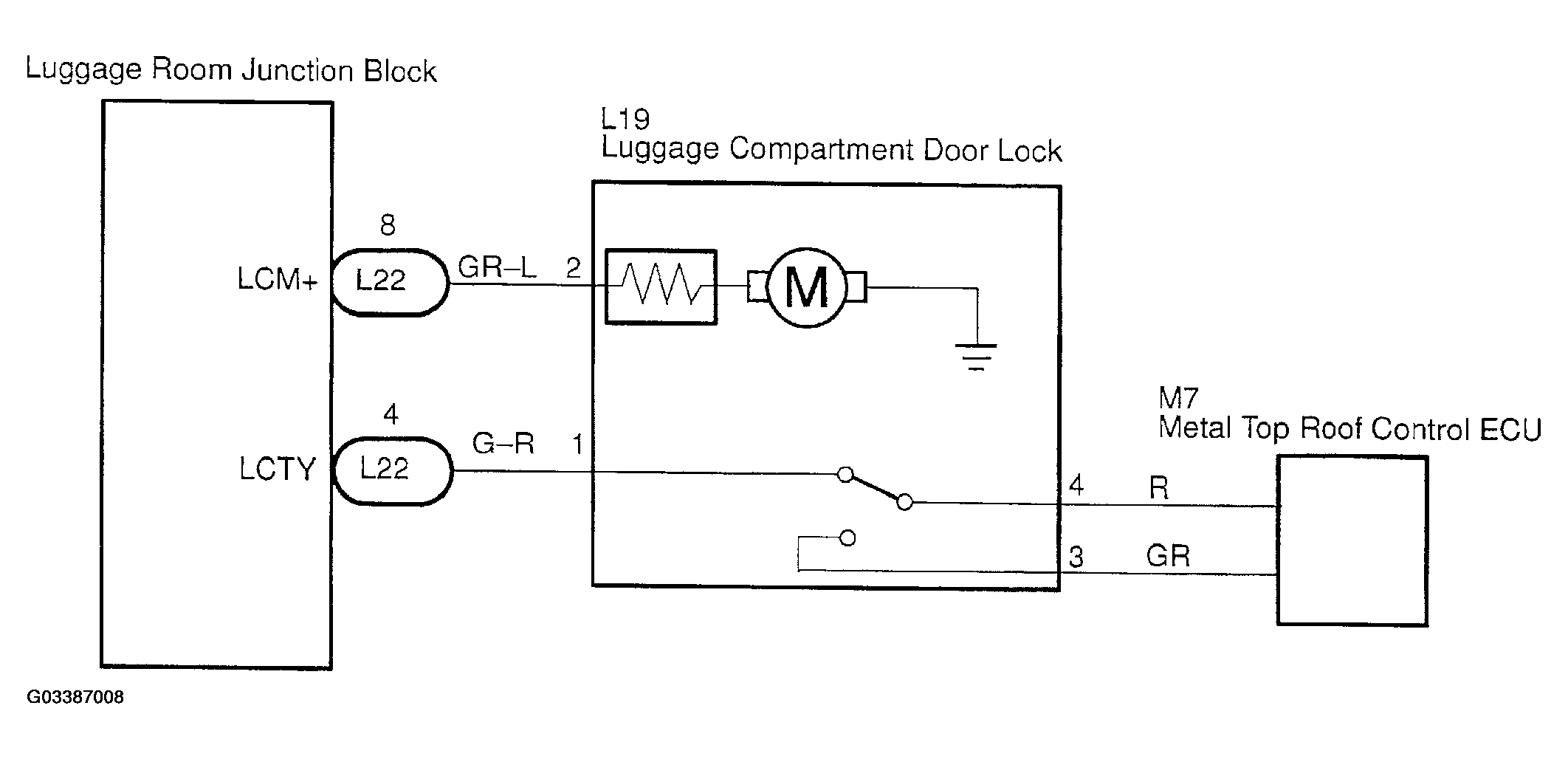

Fig 1: Luggage Compartment Door Lock Circuit Wiring Diagram

G03387008

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
