DTC B2796: No Communication In Immobiliser System & DTC B2798: Communication Malfunction No.2: Wiring Diagram

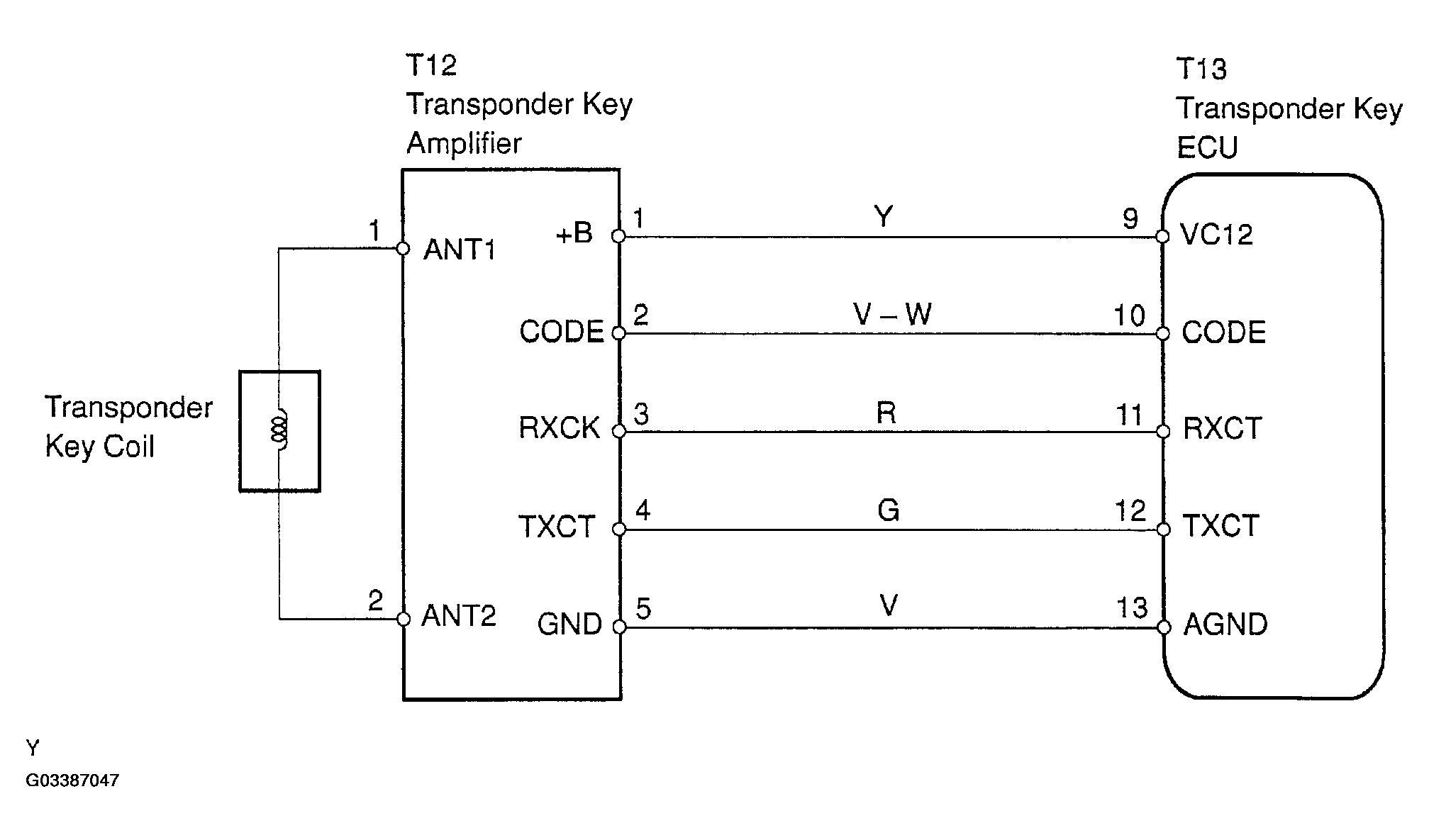

Fig 1: No Communication In Immobilizer System Wiring Diagram
G03387047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
