Seat Belt Warning Lamp For Driver's Seat Does Not Operate: Wiring Diagram

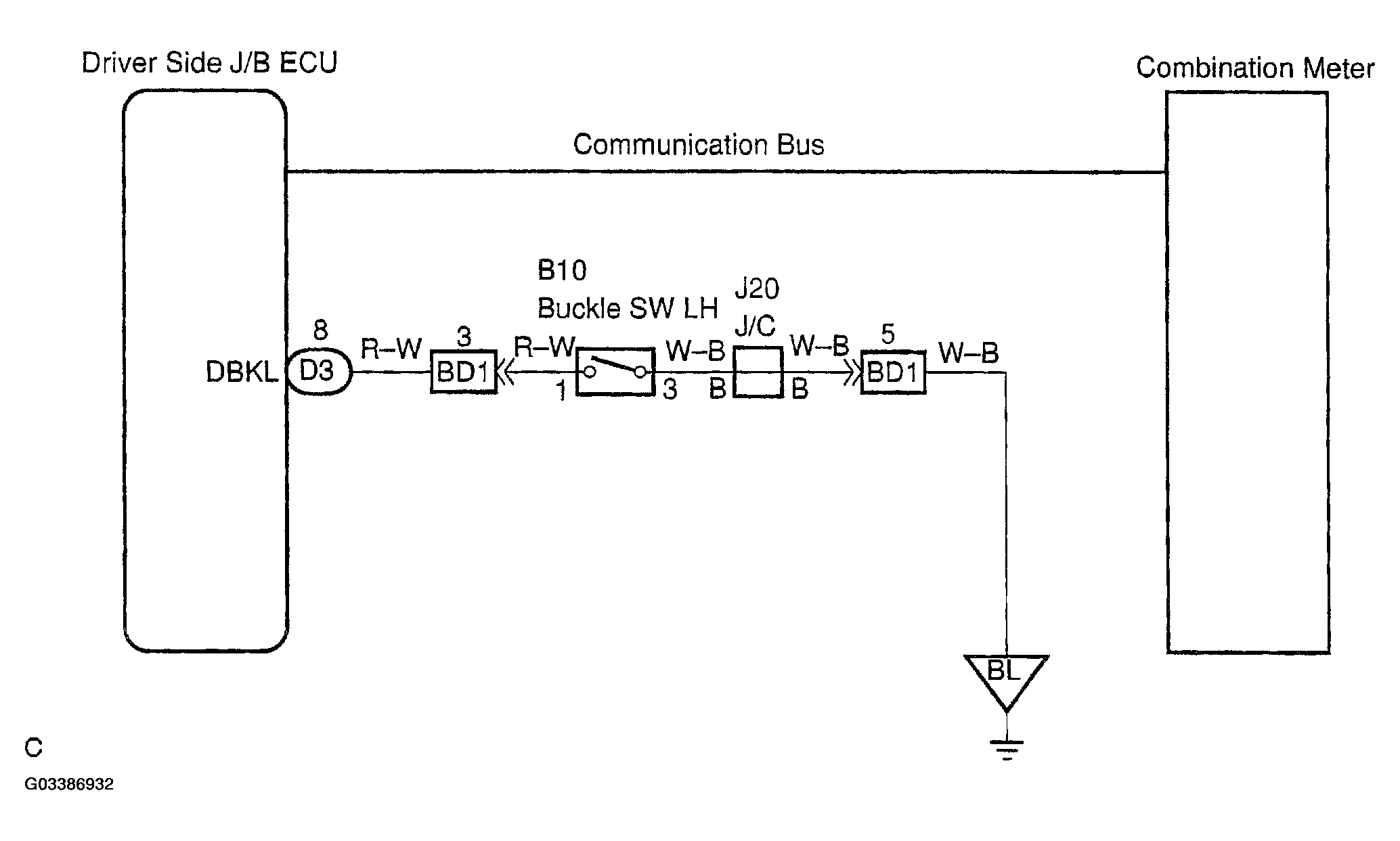

Fig 1: Seat Belt Warning Lamp For Driver's Seat Does Not Operate Wiring Diagram
G03386932Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
