Malfunction In Tachometer: Wiring Diagram

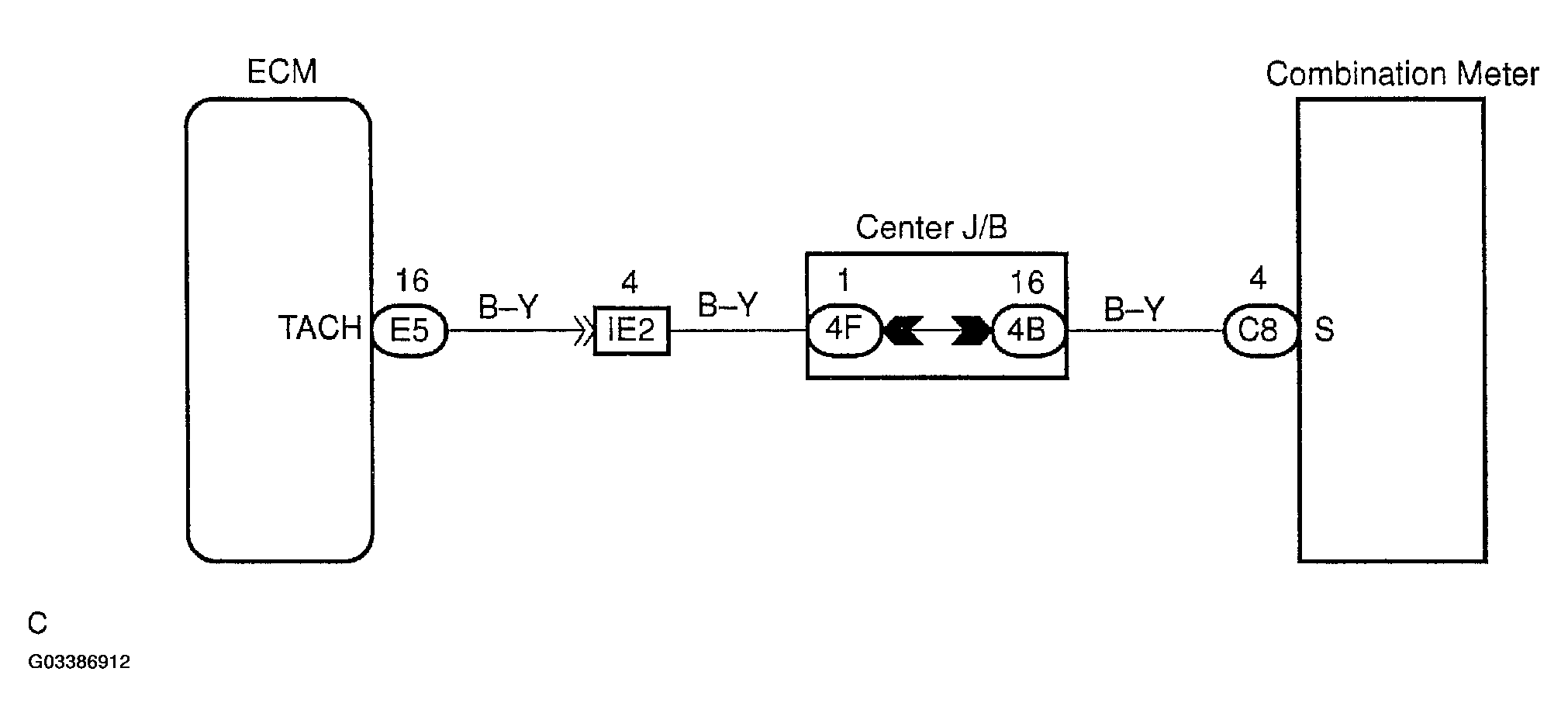

Fig 1: Malfunction In Tachometer Wiring Diagram

G03386912

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
