Malfunction In ODO/Trip Meter: Wiring Diagram

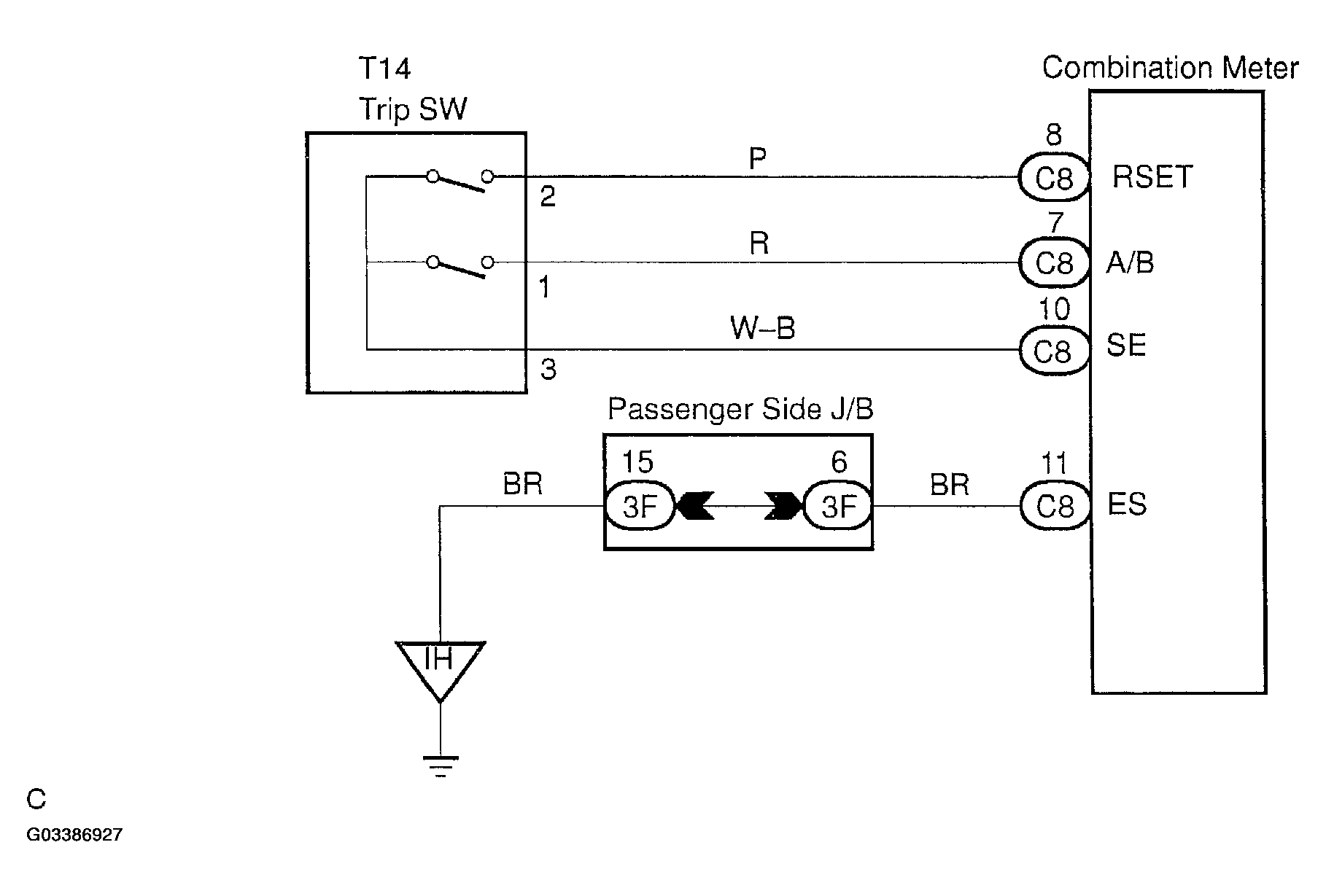

Fig 1: Malfunction In ODO/Trip Meter Wiring Diagram

G03386927

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
