Combination Meter - Diagnosis: Location

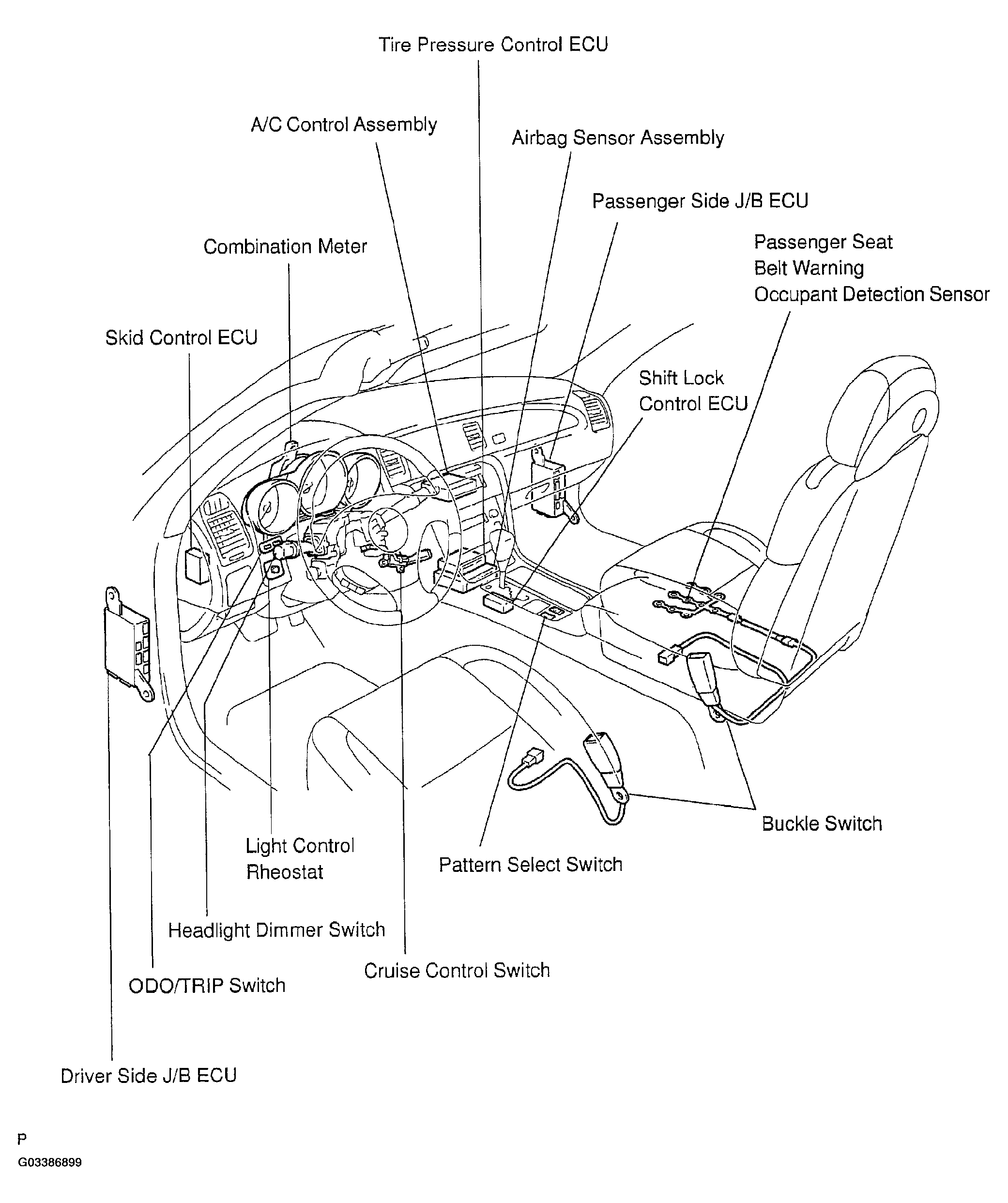

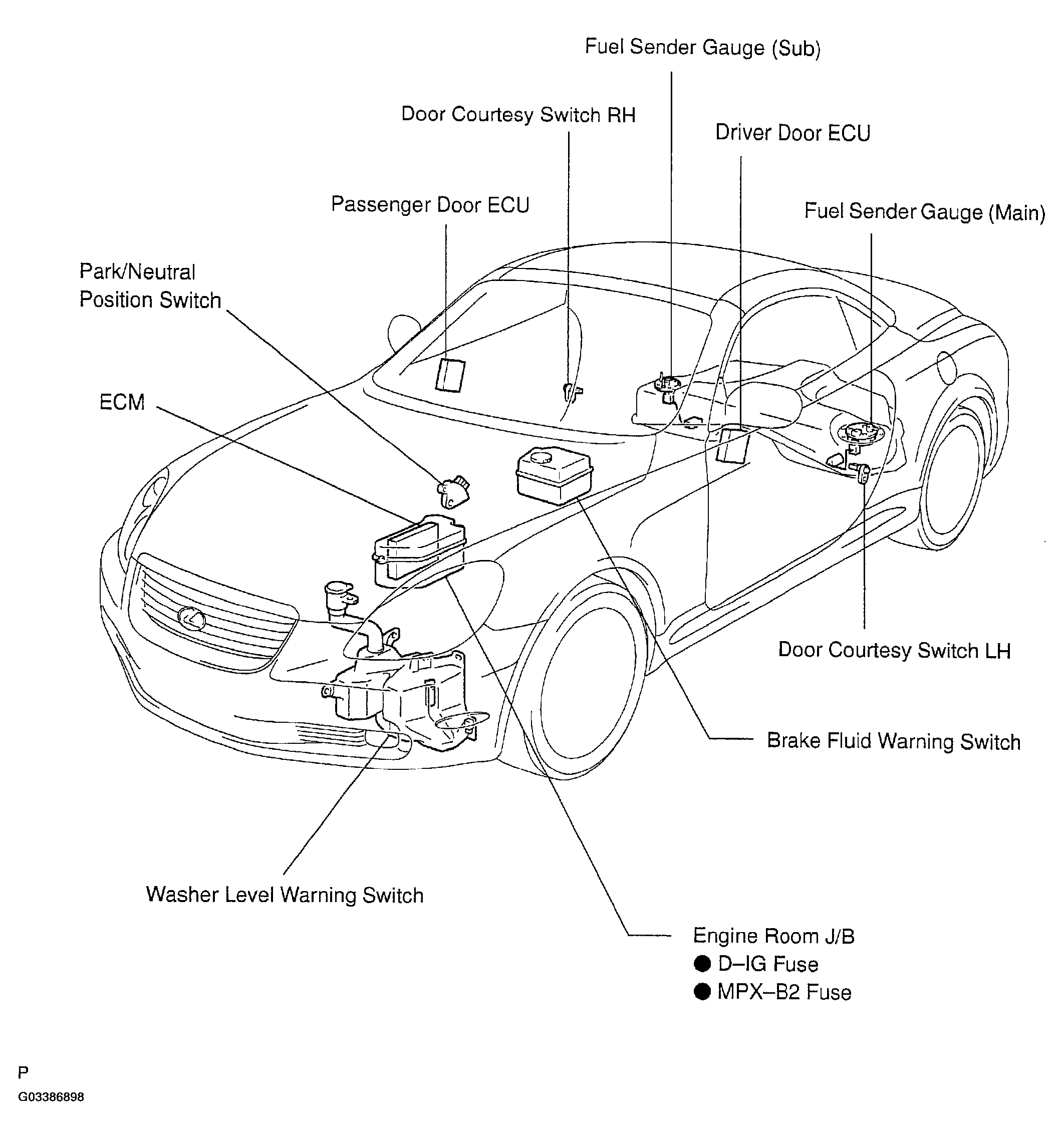

Fig 1: Identifying Combination Meter Components (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Identifying Combination Meter Components (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

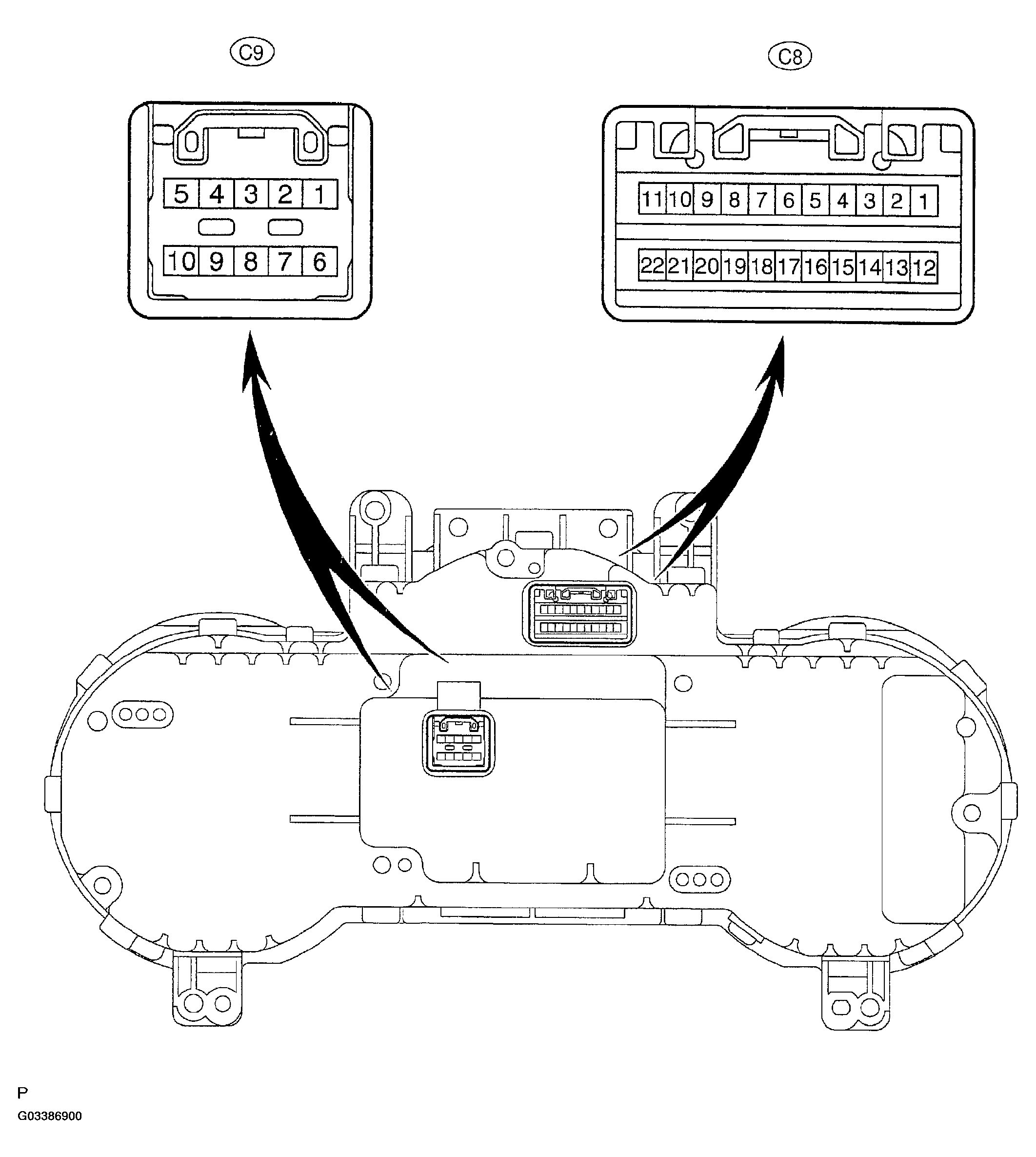

Fig 3: Identifying Connector C8 & C9

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

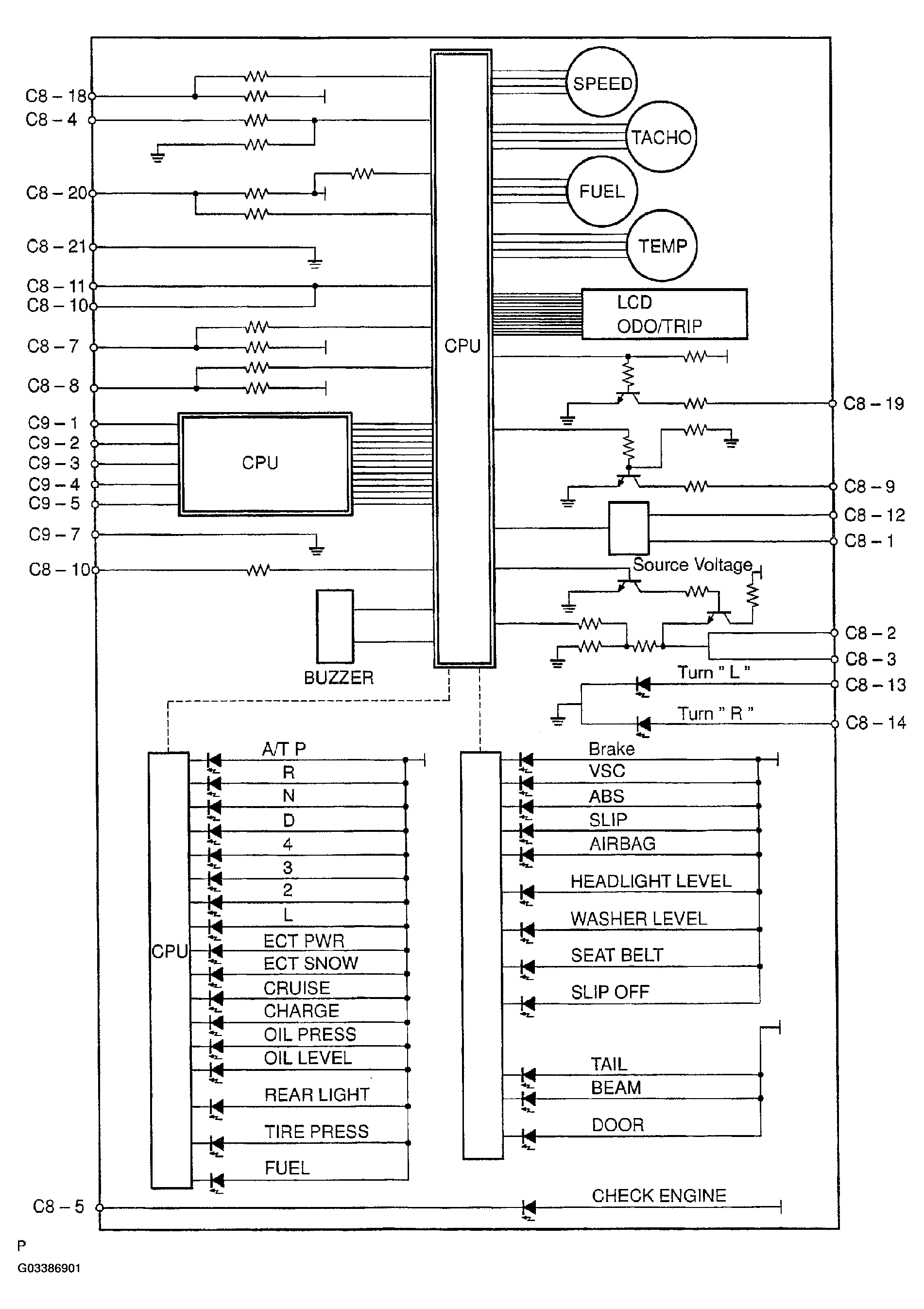

Fig 4: Connector Circuit Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

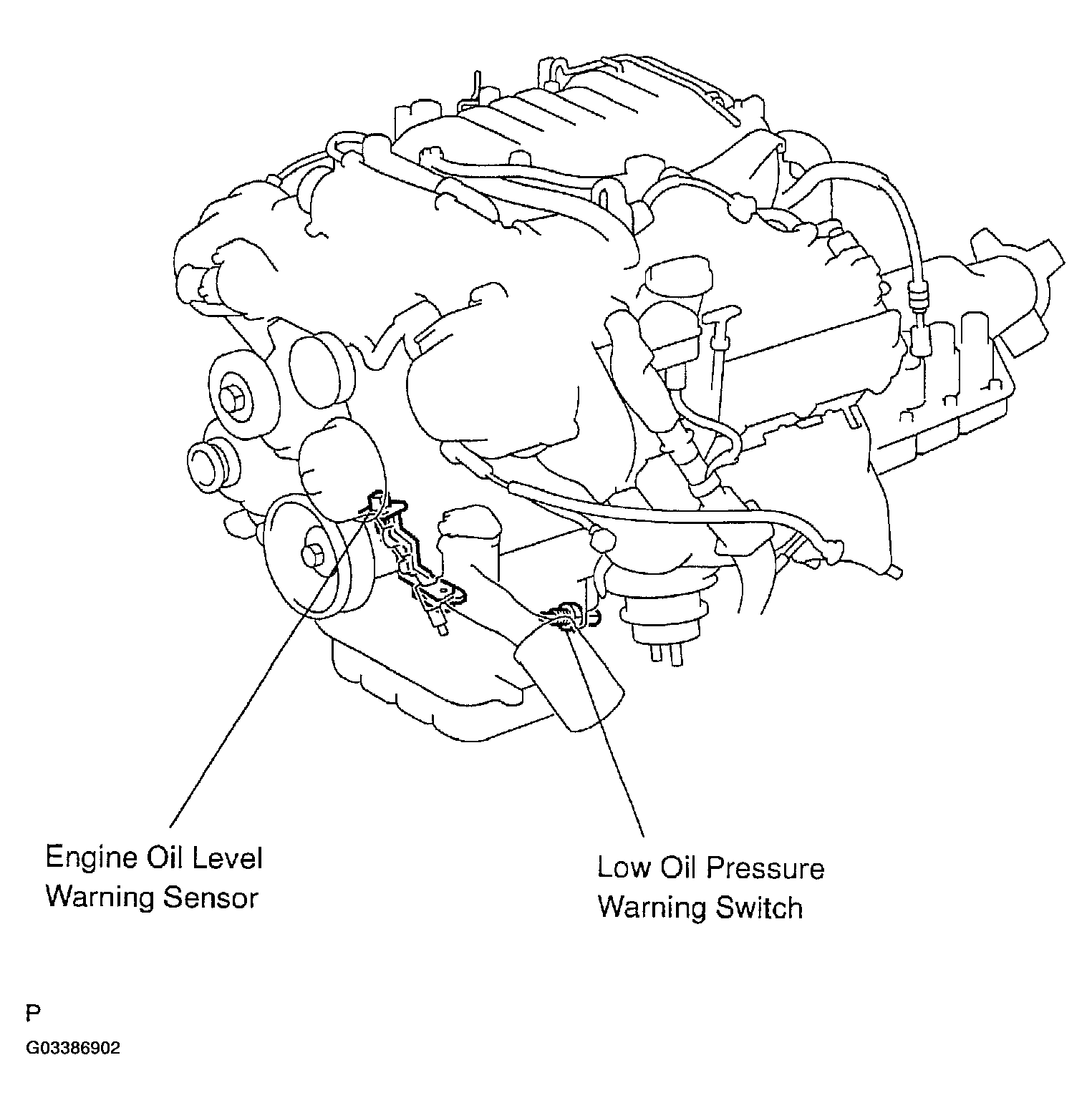

Fig 5: Identifying Engine Oil Level Warning Sensor

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

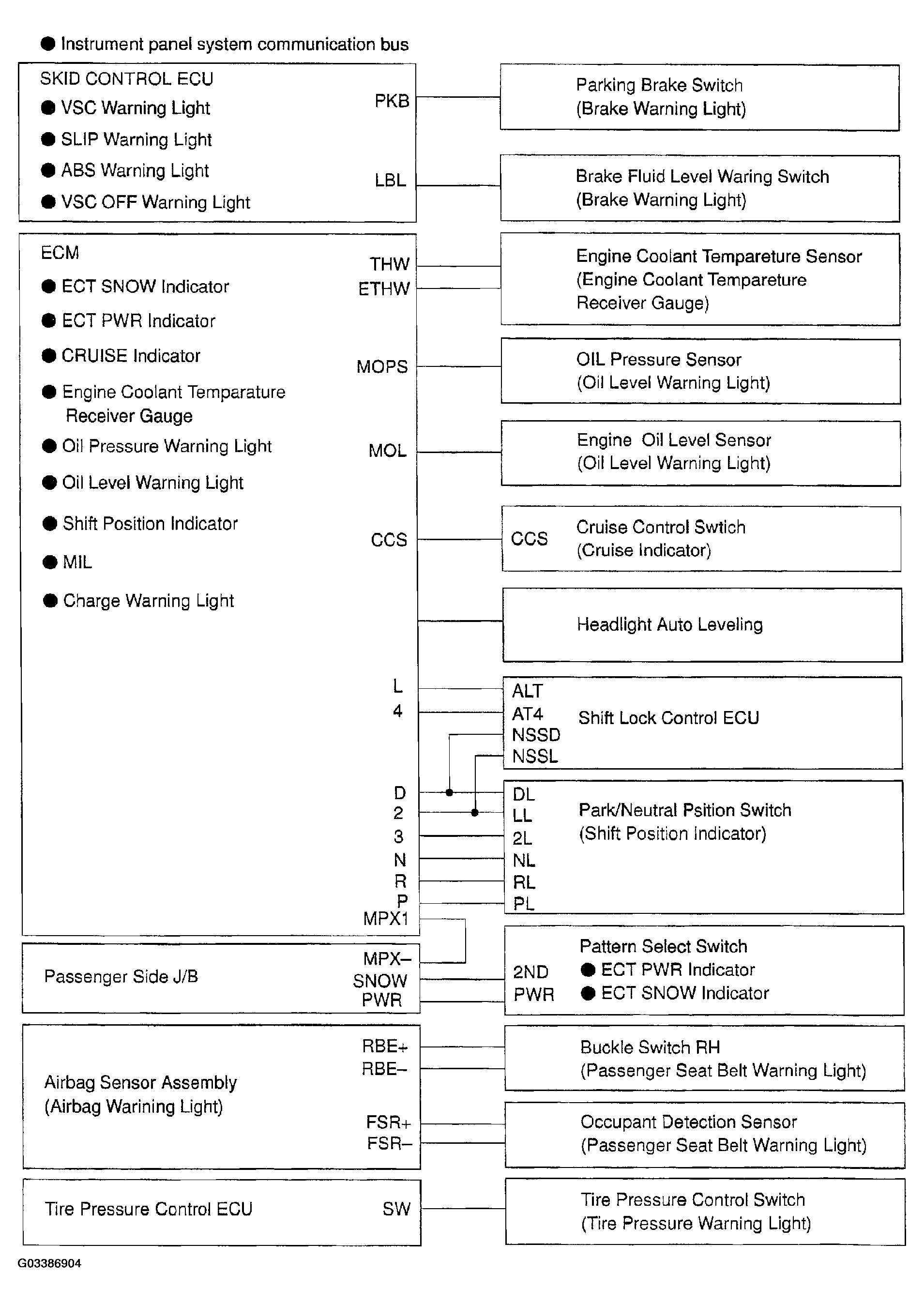

Fig 6: Terminal Chart (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

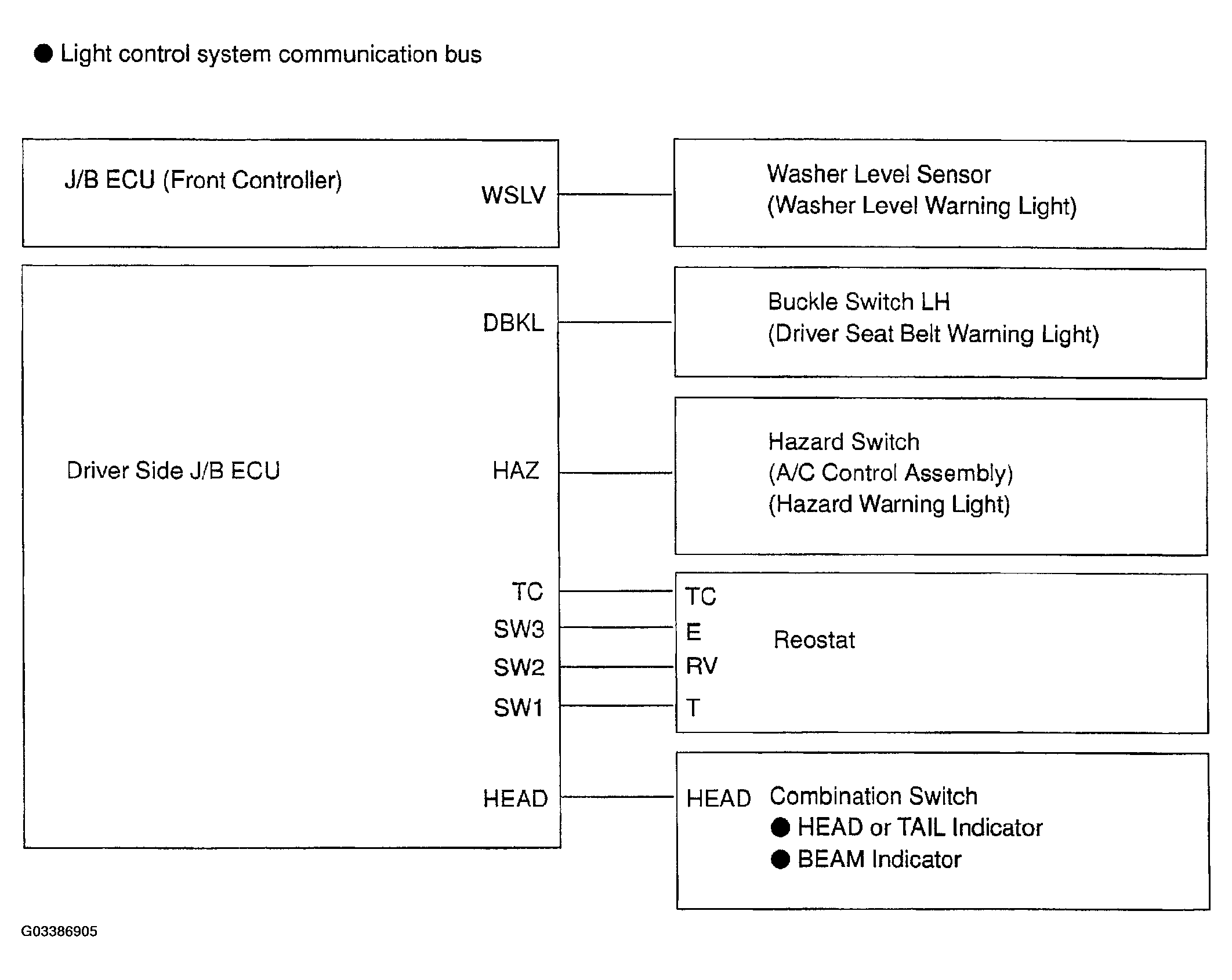

Fig 7: Terminal Chart (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

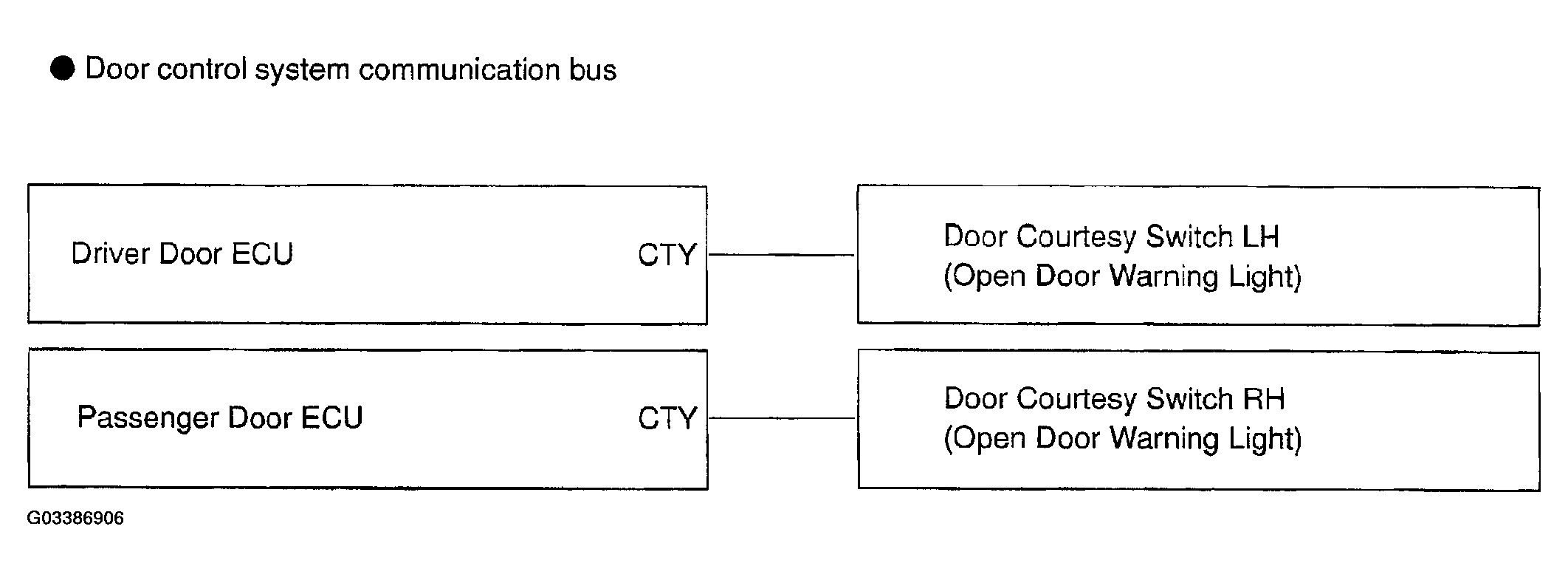

Fig 8: Terminal Chart (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

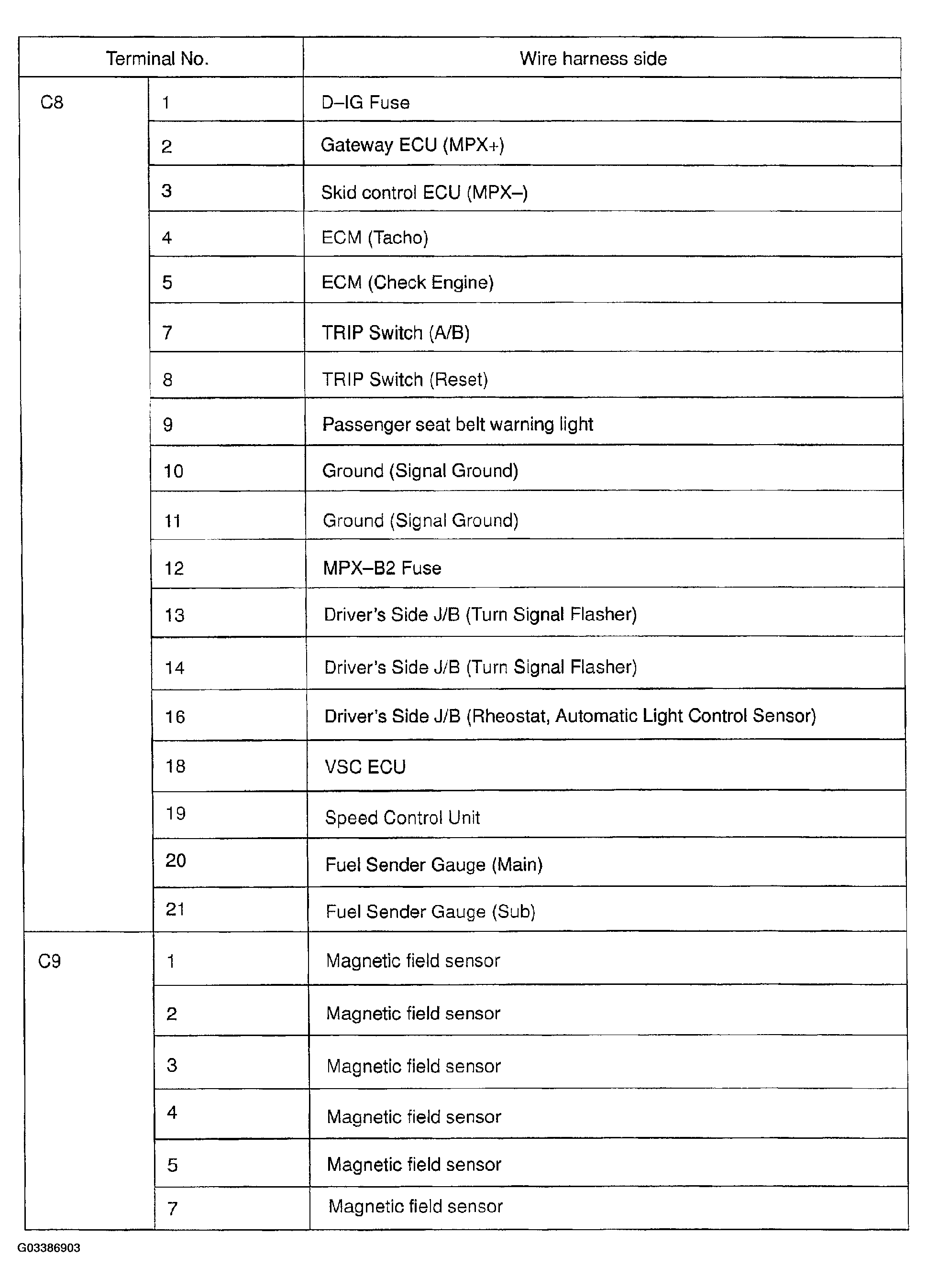

Fig 9: Terminal Chart (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
