Entire Combination Meter Does Not Operate: Wiring Diagram

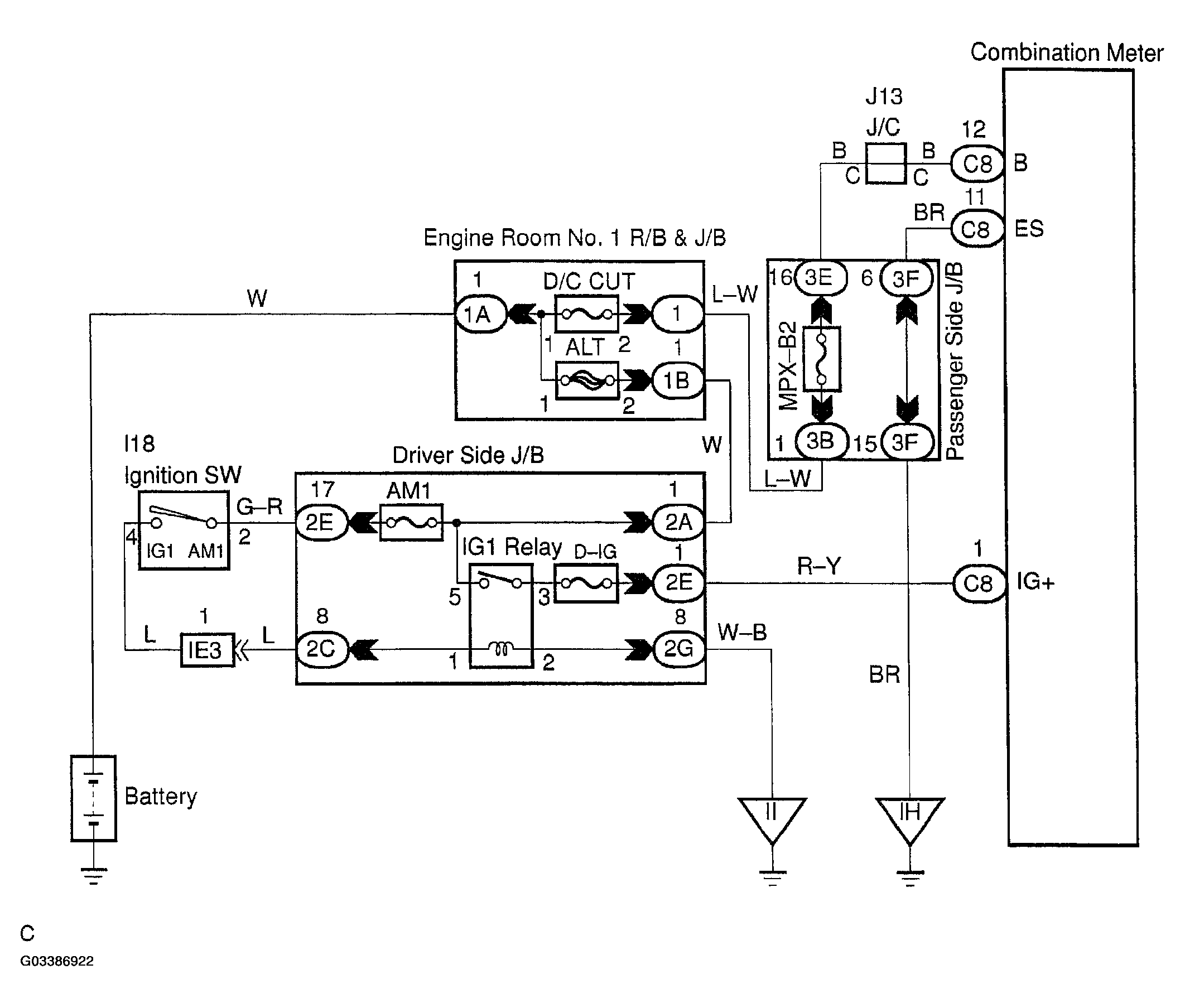

Fig 1: Entire Combination Meter Does Not Operate Wiring Diagram

G03386922

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
