Rear Side Marker Light Circuit: Wiring Diagram

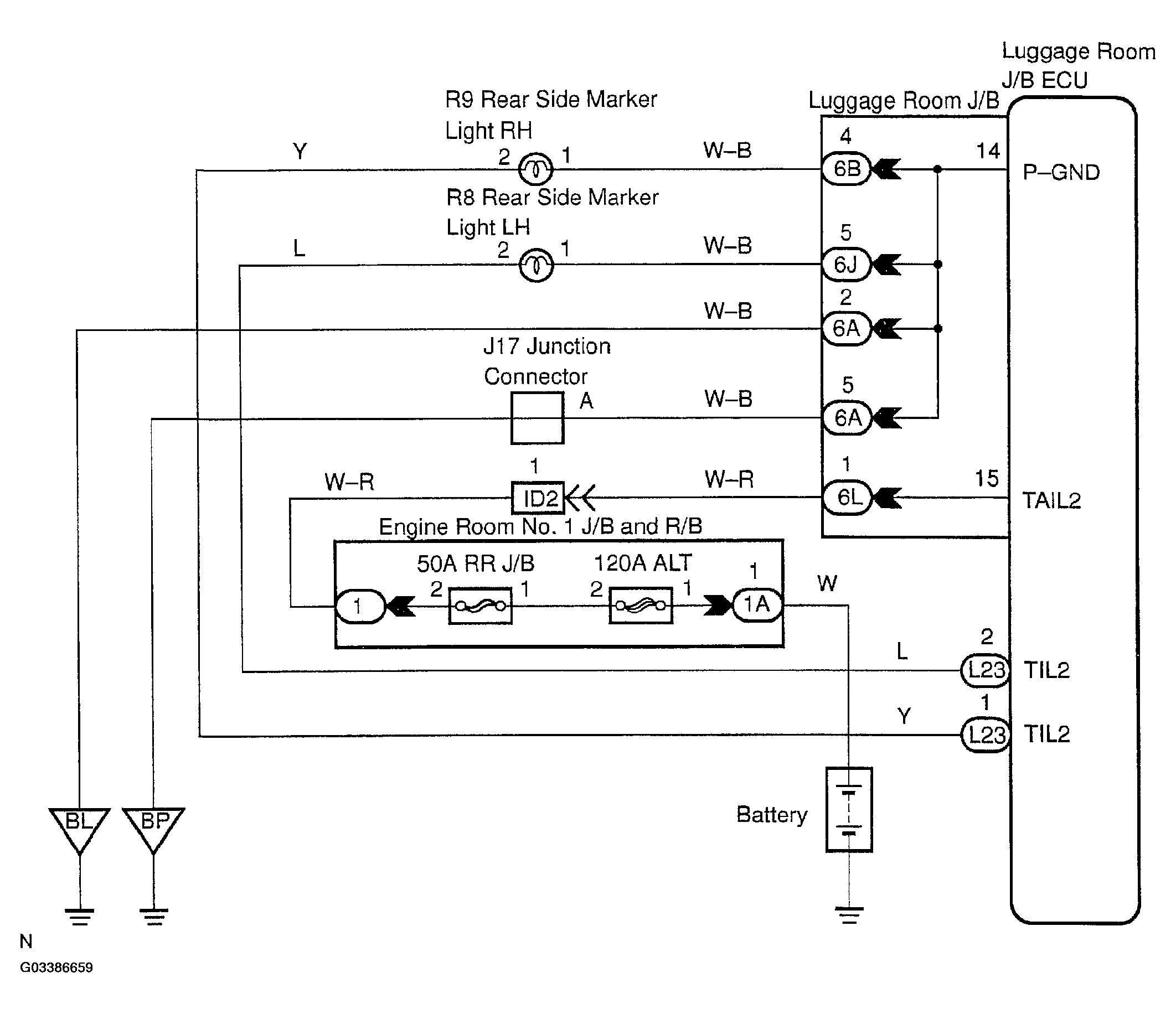

Fig 1: Identifying Rear Side Marker Light Circuit Wiring Diagram

G03386659

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
