Luggage Room Light Circuit: Wiring Diagram

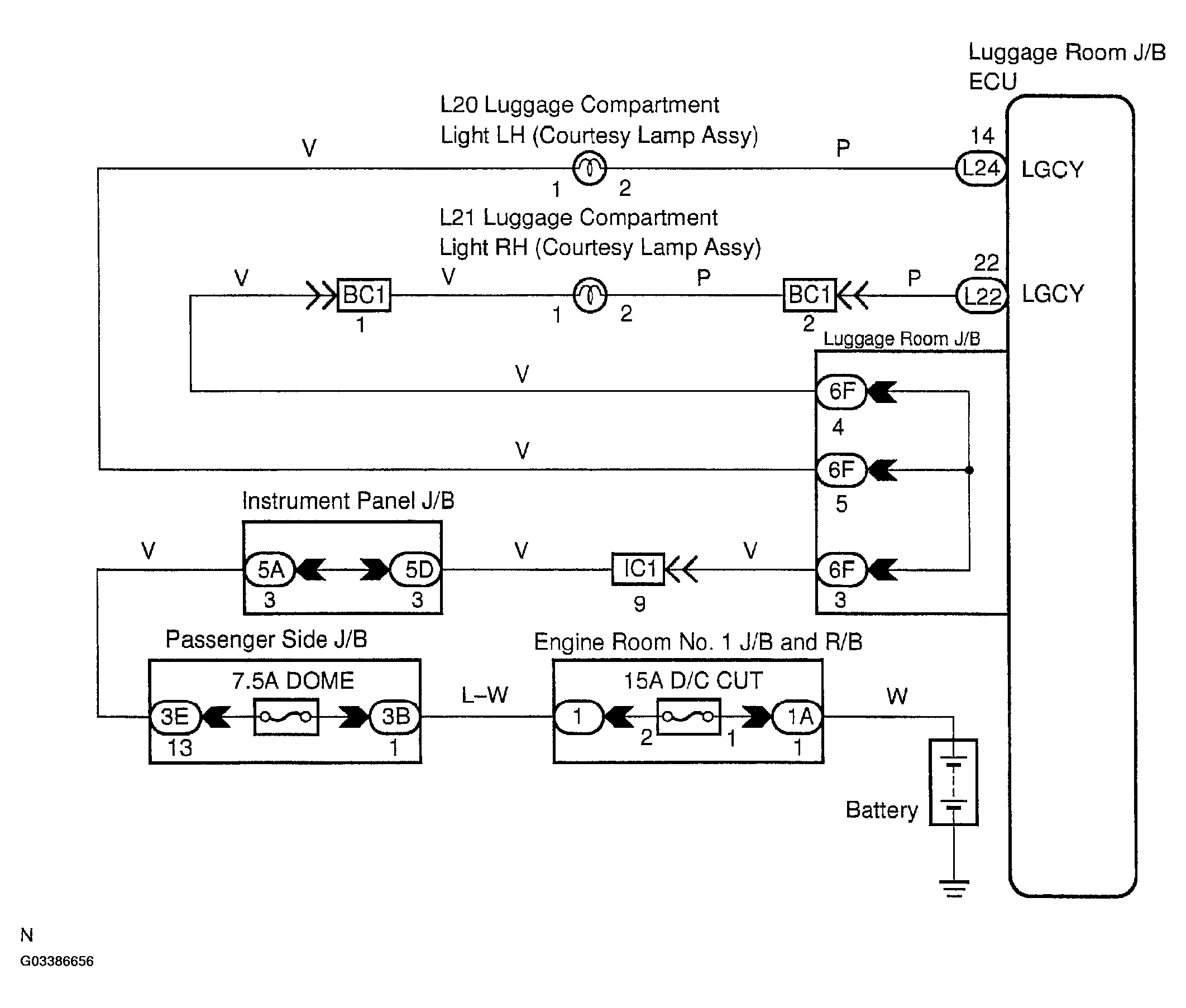

Fig 1: Identifying Luggage Room Light Circuit Wiring Diagram

G03386656

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
