Luggage Compartment Door Courtesy Switch Circuit: Wiring Diagram

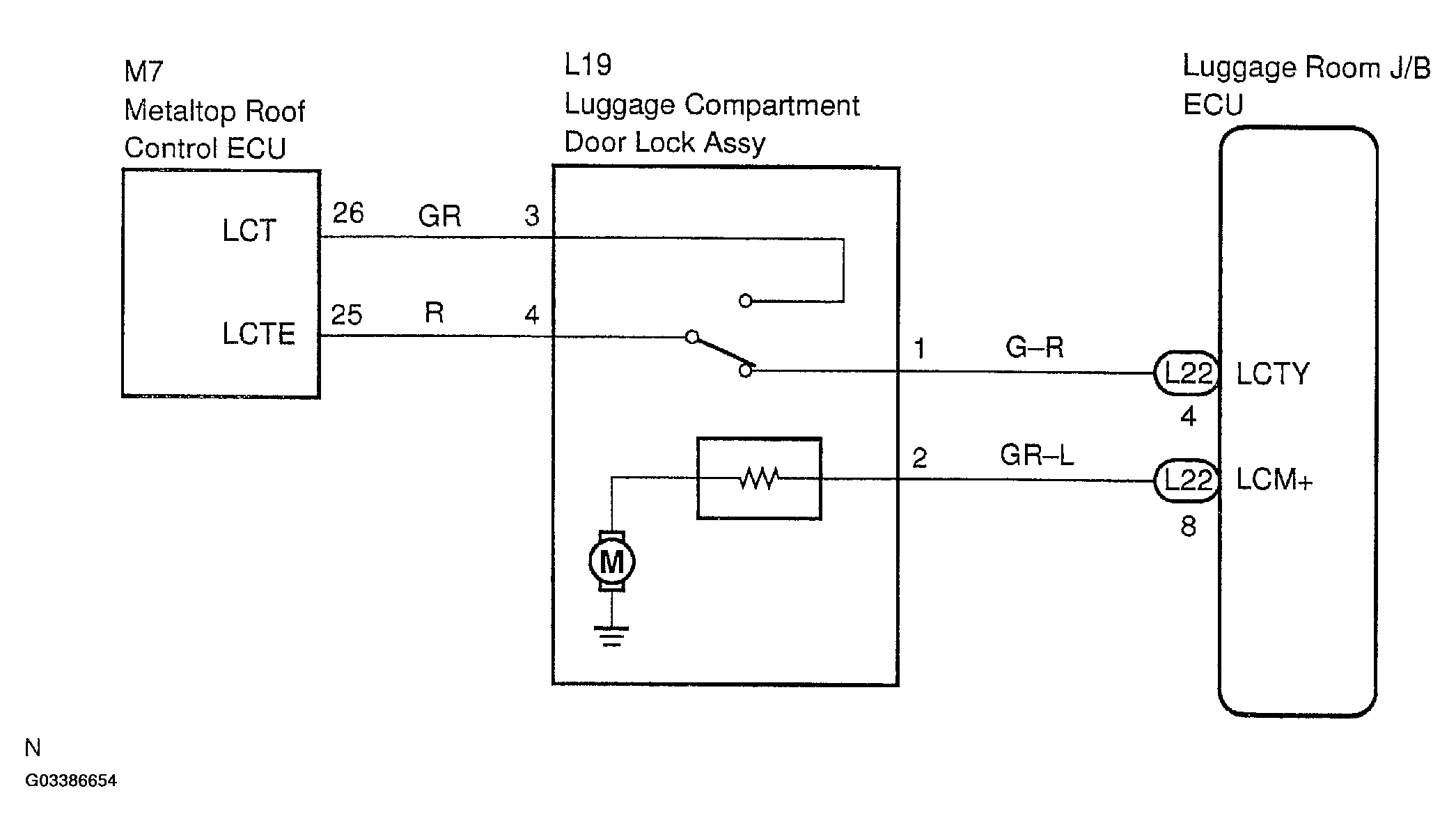

Fig 1: Identifying Luggage Compartment Door Courtesy Switch Circuit Wiring Diagram

G03386654

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
