Illumination Circuit: Wiring Diagram

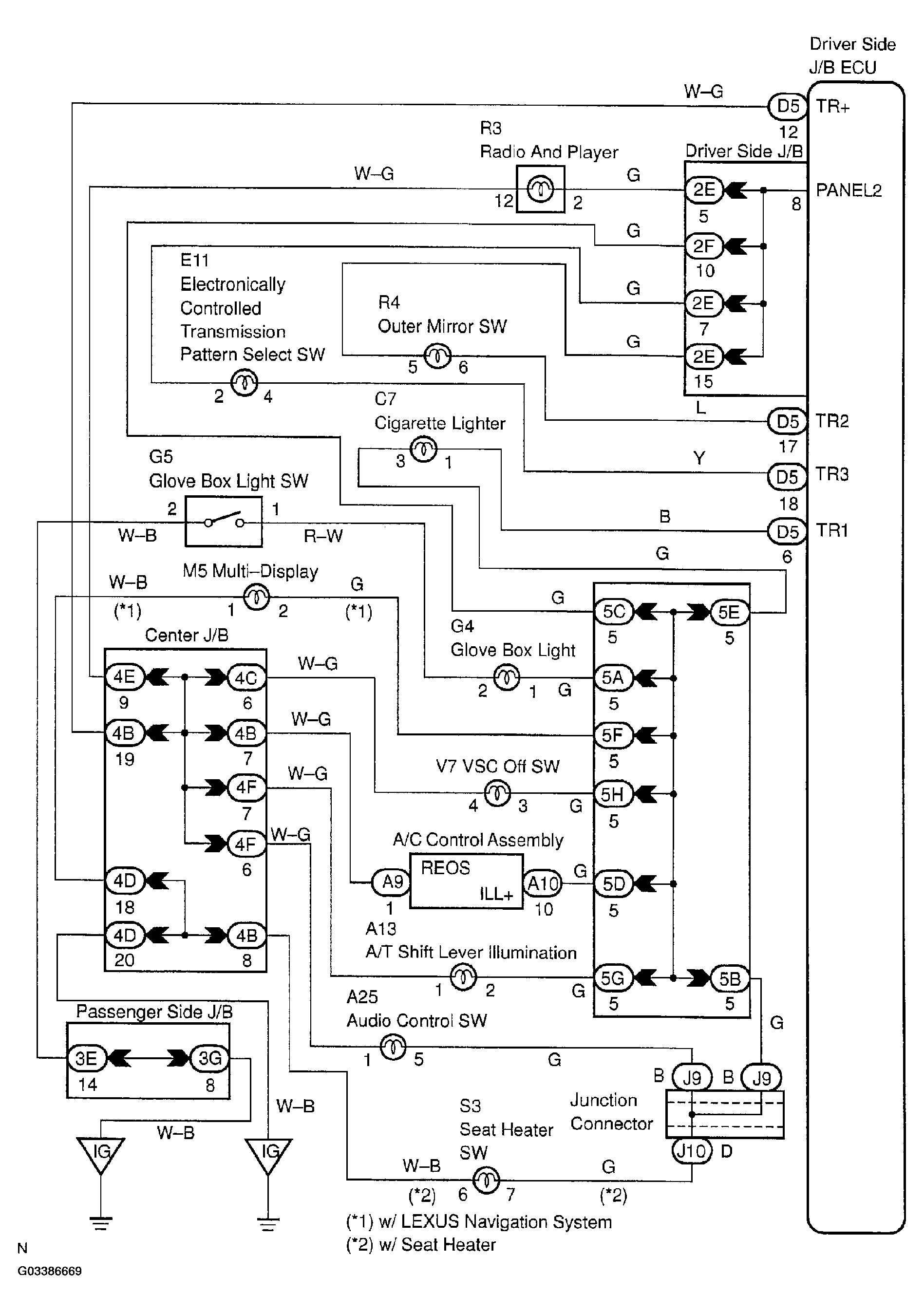

Fig 1: Identifying Illumination Circuit Wiring Diagram

G03386669

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
