DTC B1268: Back-Up Communication Bus Malfunction: Wiring Diagram

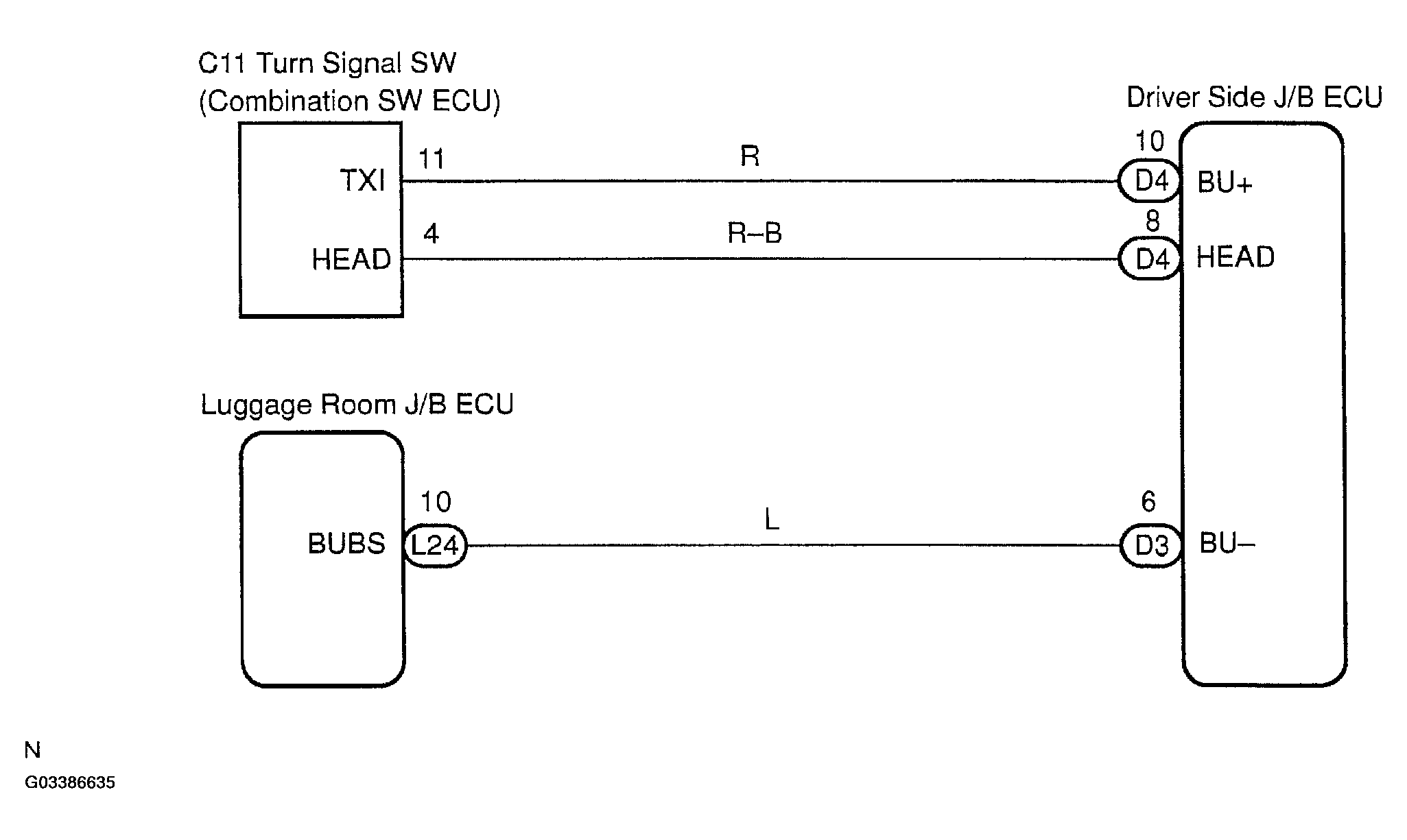

Fig 1: Identifying DTC B1268 Back-Up Communication Bus Malfunction Wiring Diagram

G03386635

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
