Although "Power" Is Pressed, No Sound Is Heard (Nothing Is Shown On Display): Wiring Diagram

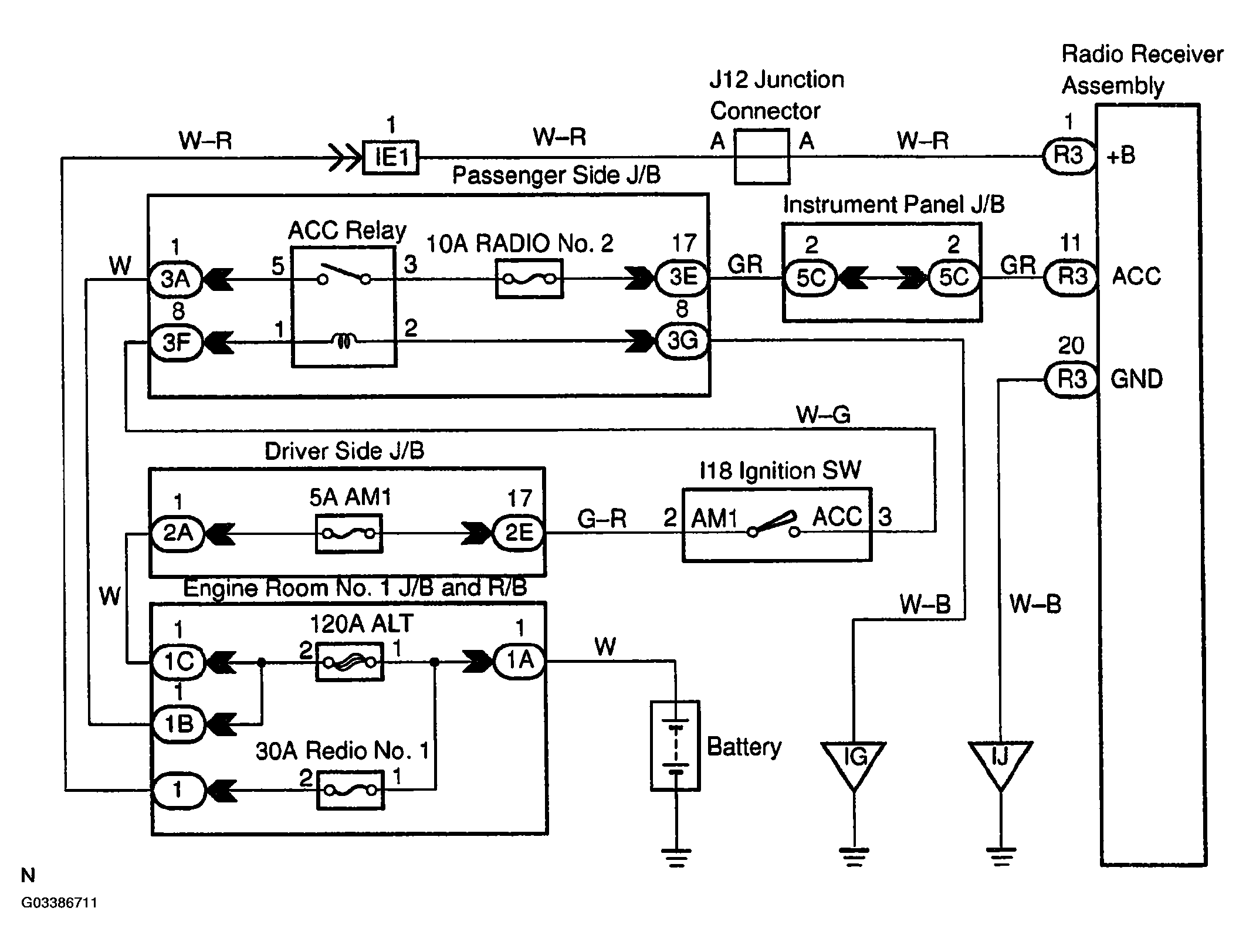

Fig 1: Wiring Diagram - Although "Power" Is Pressed, No Sound Is Heard

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
