DTC B1212: Front Passenger Door Ecu Communication Stop: Wiring Diagram

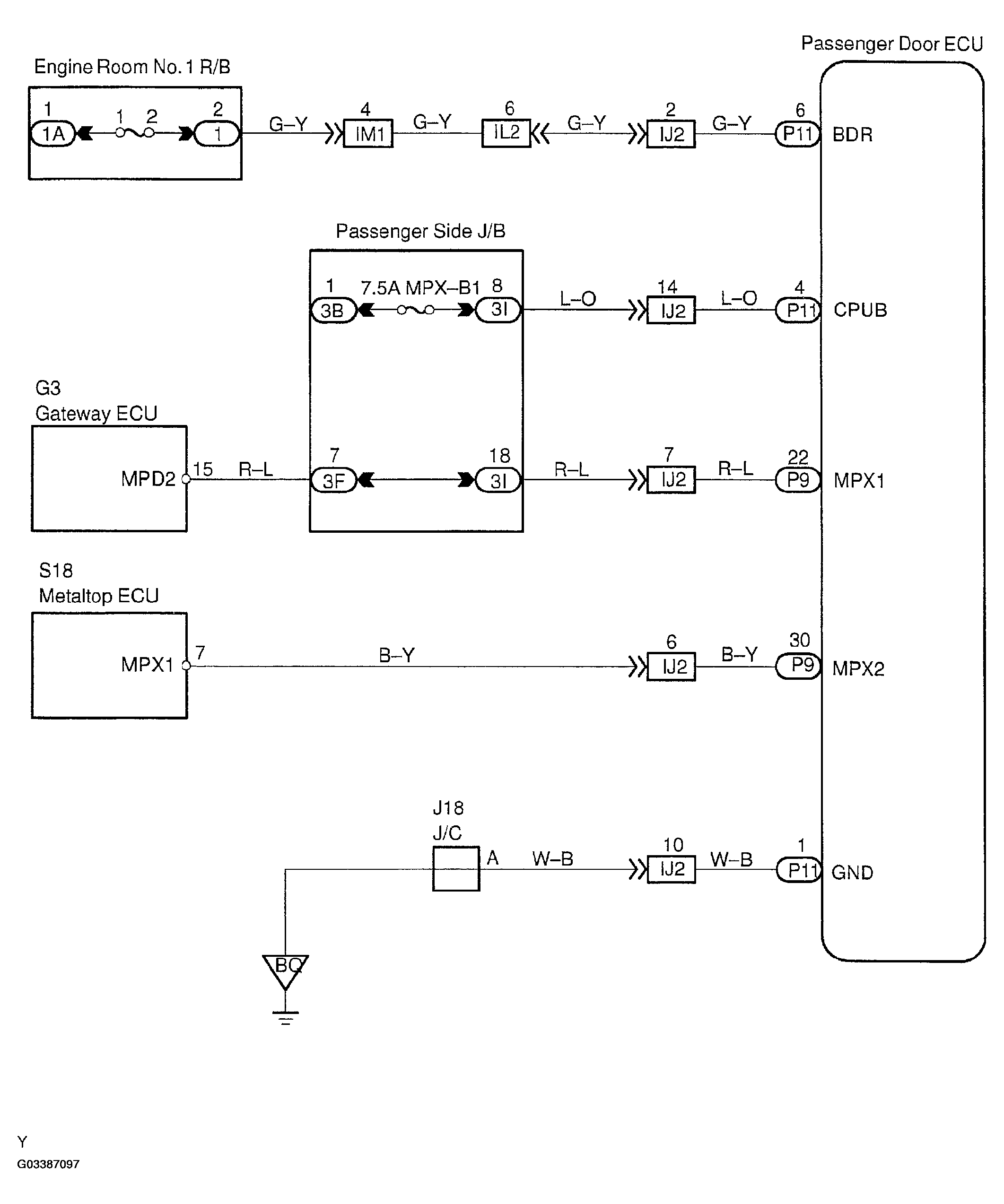

Fig 1: Front Passenger Door ECU Communication Stop Wiring Diagram

G03387097

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
