Brake Pedal Height & Free Play
- Measure pedal height from floor board to face of pedal pad. See BRAKE PEDAL HEIGHT & FREE PLAY SPECIFICATIONS . If pedal height is incorrect, go to next step.
- On ES 300, IS 300, LS 430 and RX 300, remove undercover panel, lower pad and air duct.
- On GS 300 and GS 430, remove left side under cover, end pad, safety pad and heater to register duct.
- On SC 430, remove instrument lower finish panel.

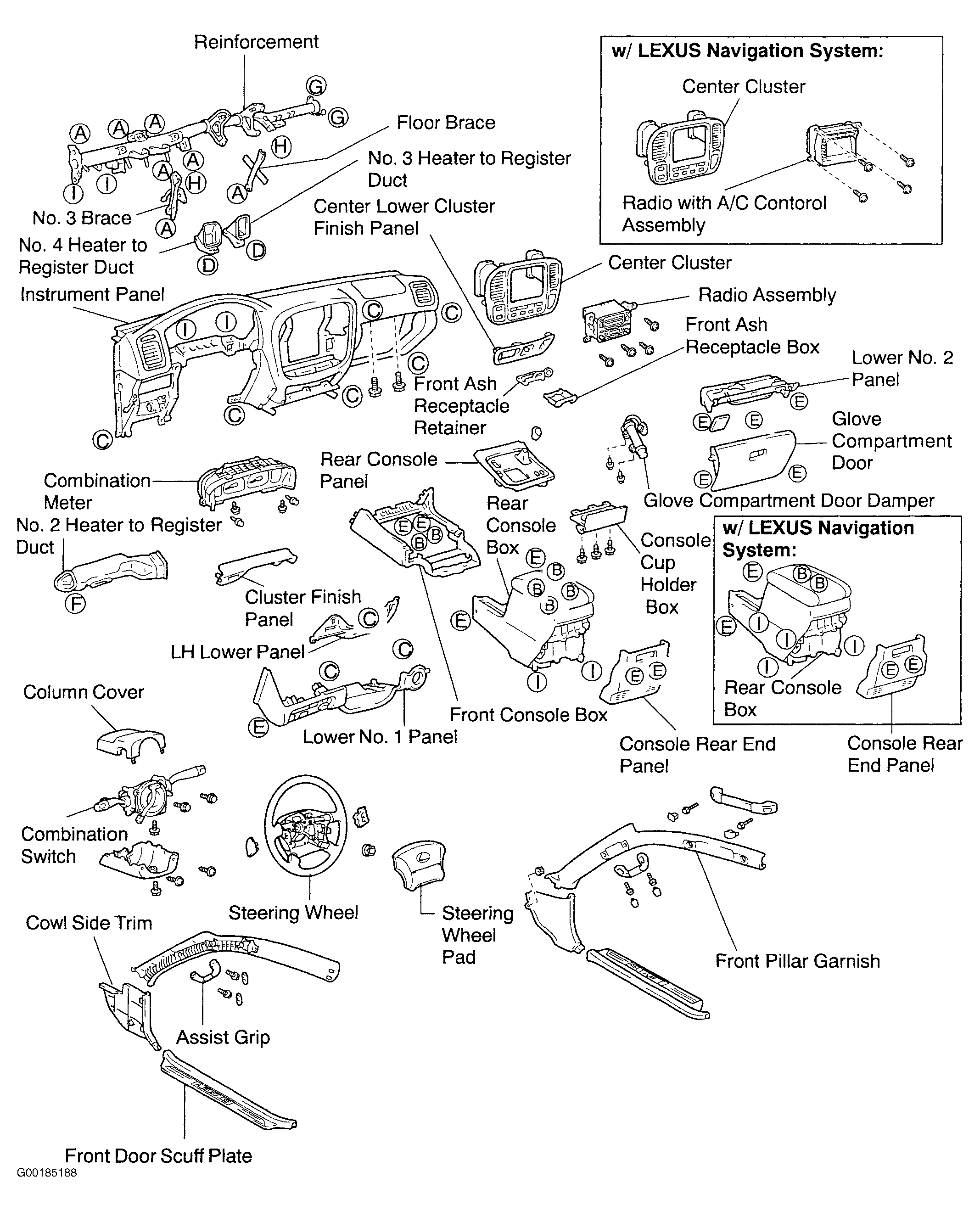

- On LX 470, remove the scuff plate, cowl side trim, lower No. 1 panel, left lower panel, and No. 2 heater to register duct. See Fig 1. Remove the steering wheel pad, steering wheel lower No. 2 and No. 3 covers, steering wheel, combination switch, column upper and lower covers, steering column assembly and thrust stopper. See appropriate STEERING COLUMNS article in STEERING.
- On all models, disconnect stop light switch harness connector. Loosen stoplight switch lock nut, and remove stoplight switch.
- Loosen brake pedal-to-power brake unit push rod lock nut.
- Adjust pedal height by turning brake pedal push rod.
- Tighten push rod lock nut to specification. See TORQUE SPECIFICATIONS .
- Install stop light switch and connect brake light switch harness connector.
- Push in brake pedal .2-.59" (5-15 mm) and turn stop light switch to lock the nut in position where brake light goes off.
- After installation, push in brake pedal .2-.59" (5-15 mm) and check that brake light illuminates.
- Stop engine. Depress brake pedal several times until power brake unit is depleted. Push brake pedal by hand until a second point of resistance is felt, then measure the difference. Ensure pedal free play is as specified. See BRAKE PEDAL HEIGHT & FREE PLAY SPECIFICATIONS .
- If incorrect, check stop light switch clearance. See STOP LIGHT SWITCH CLEARANCE . If clearance is OK, trouble shoot brake system.
- Install steering and instrument panel components as necessary.
BRAKE PEDAL HEIGHT & FREE PLAY SPECIFICATIONS
| Application | In. (mm) | |
|---|---|---|
| Brake Pedal Height | ||
| ES 300 | 5.673-6.067 (144.1-154.1) | |
| IS 300 & SC 430 | 6.063-6.457 (154-164) | |
| GS 300 & GS 430 | 5.906-6.299 (150-160) | |
| LS 430 | 6.654-7.047 (169-179) | |
| LX 470 | 7.232-7.626 (183.7-193.7) | |
| RX 300 | 7.598-7.992 (193.0-203.0) | |
| Brake Pedal Free Play | ||
| ES 300, IS 300, RX 300 & LX 470 | 0.04-0.24 (1-6) | |
| GS 300, GS 430, LS 430 & SC 430 | .008-.079 (.2-2) | |
STOP LIGHT SWITCH CLEARANCE
| Application | In. (mm) |
|---|---|
| ES 300 | .02-.098 (.5-2.5) |
| IS 300 | .059-.098 (1.5-2.5) |
| GS 300 & GS 430 | .02-.1 (.2-2) |
| LX 470 | .075 (1.9) |
| SC 430 | .02-.094 (.5-2.4) |
