Cooling Fan Relay No. 1

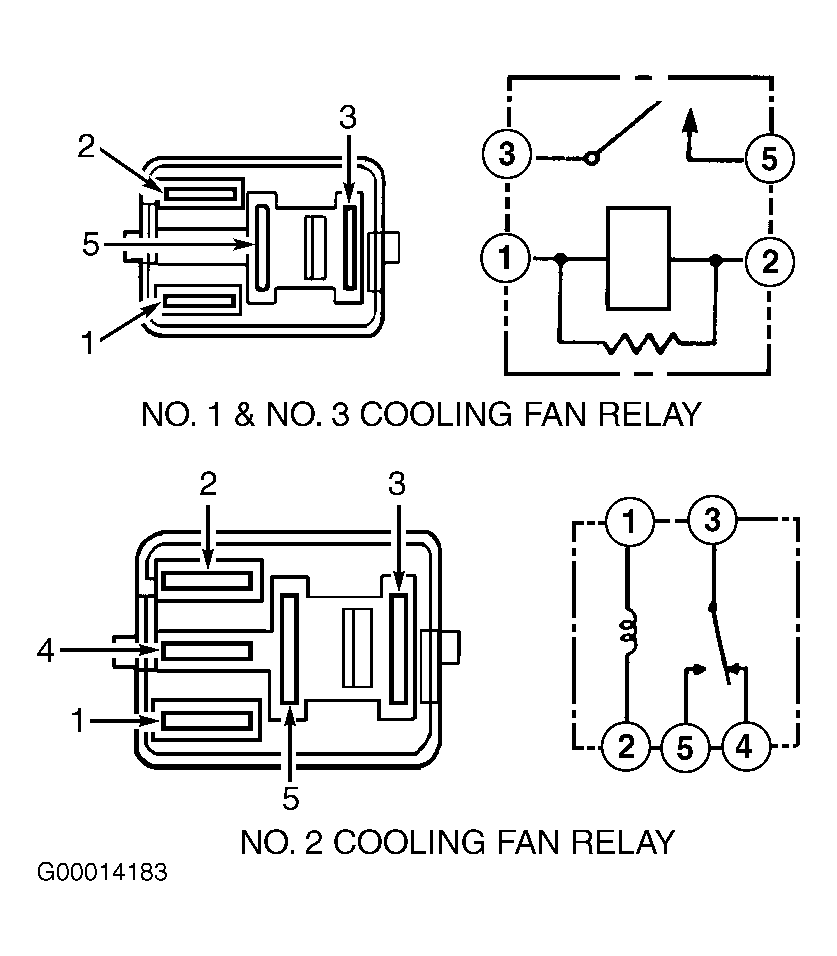

  1. Disconnect negative battery cable. Remove cooling fan relay No. 1 from fuse/relay box. See COMPONENT LOCATIONS . Using an ohmmeter, check for continuity between relay terminals No. 1 and 2, and No. 3 and 4. See Figure. If no continuity exists, replace relay.
  2. To check relay operation, connect positive battery voltage to terminal No. 1 and ground to terminal No. 2. Check that no continuity exists between relay terminals No. 3 and 4. If continuity exists, replace relay. Reinstall cooling fan relay No. 1.
