Hydraulic Brake Booster

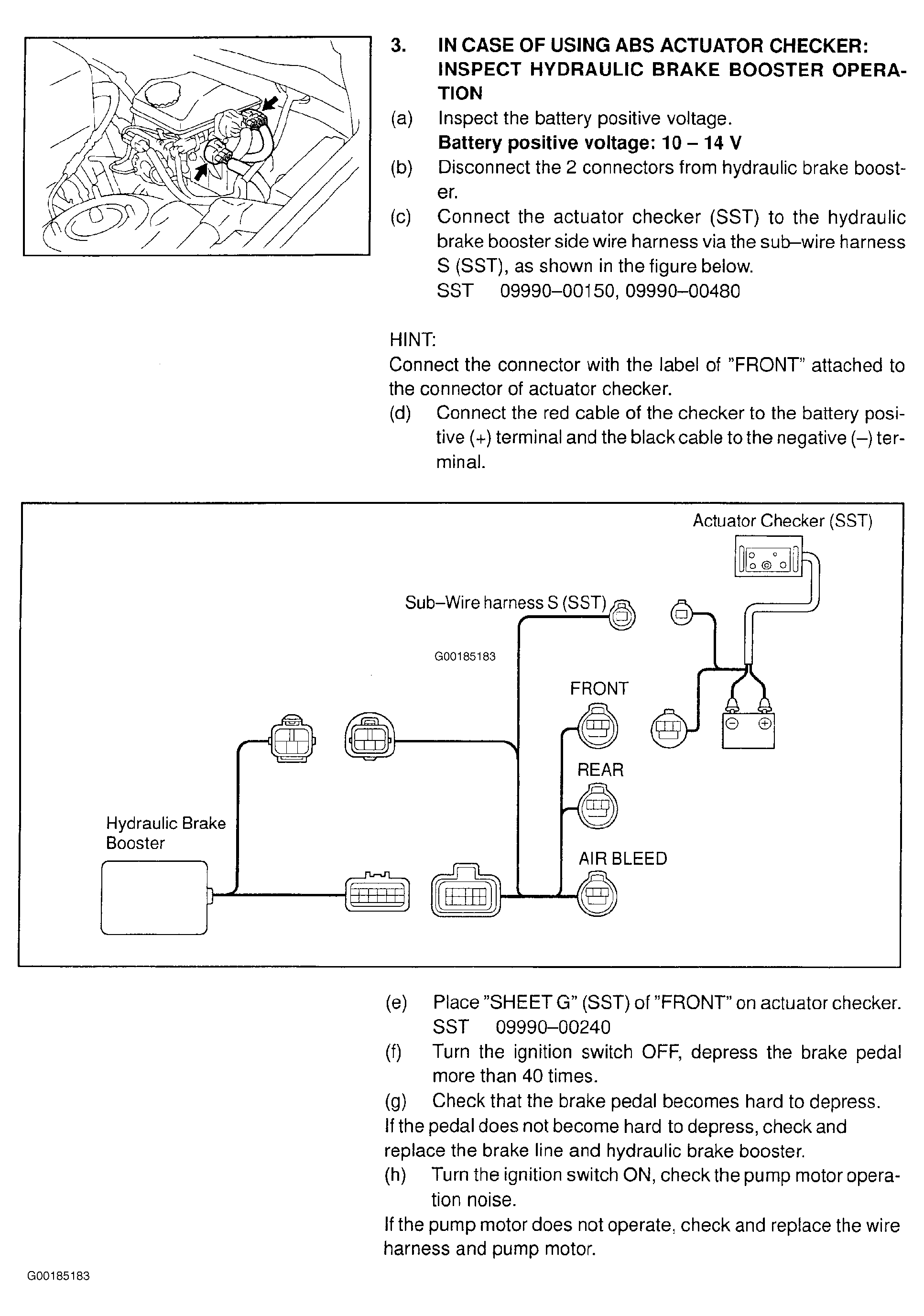

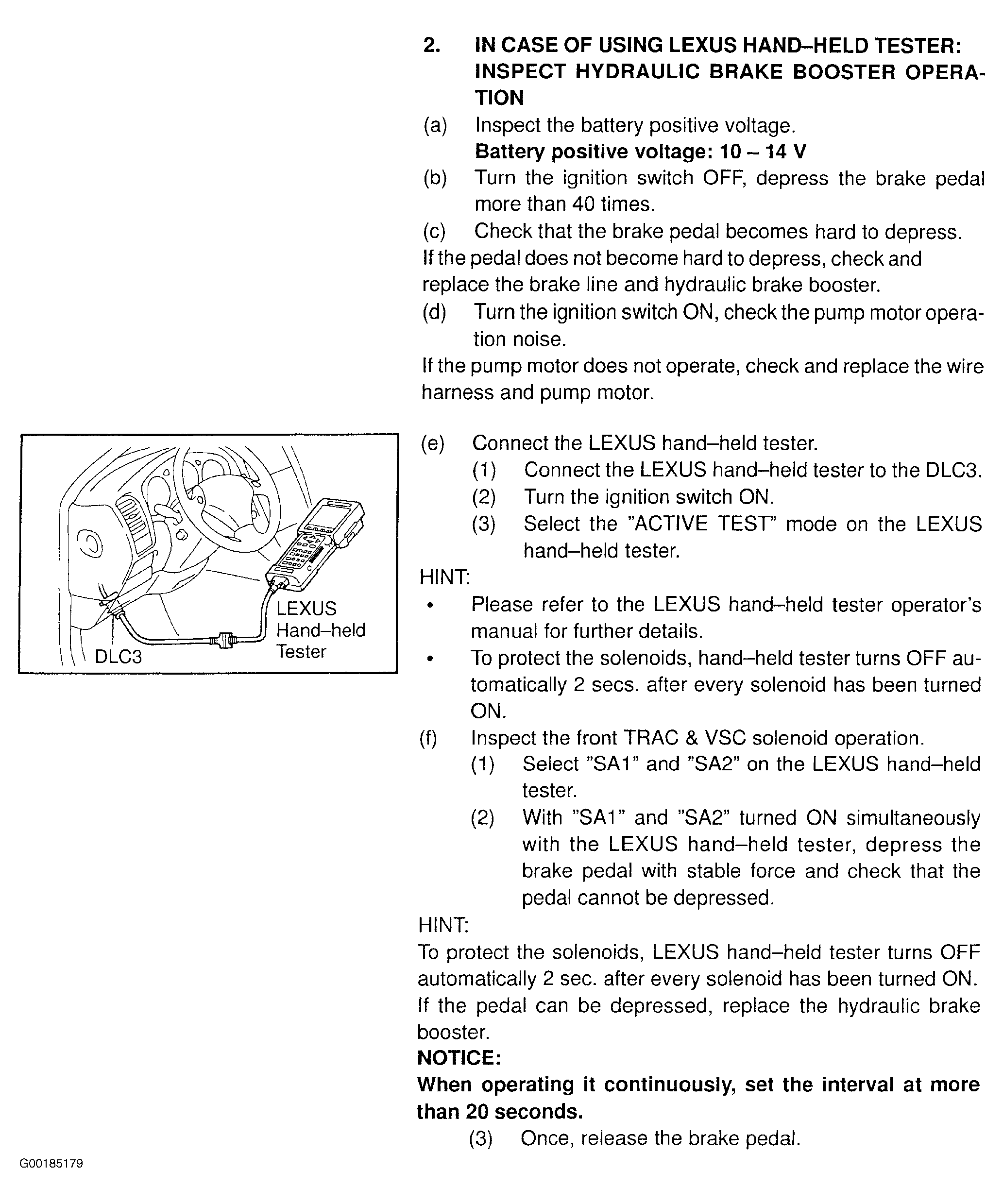

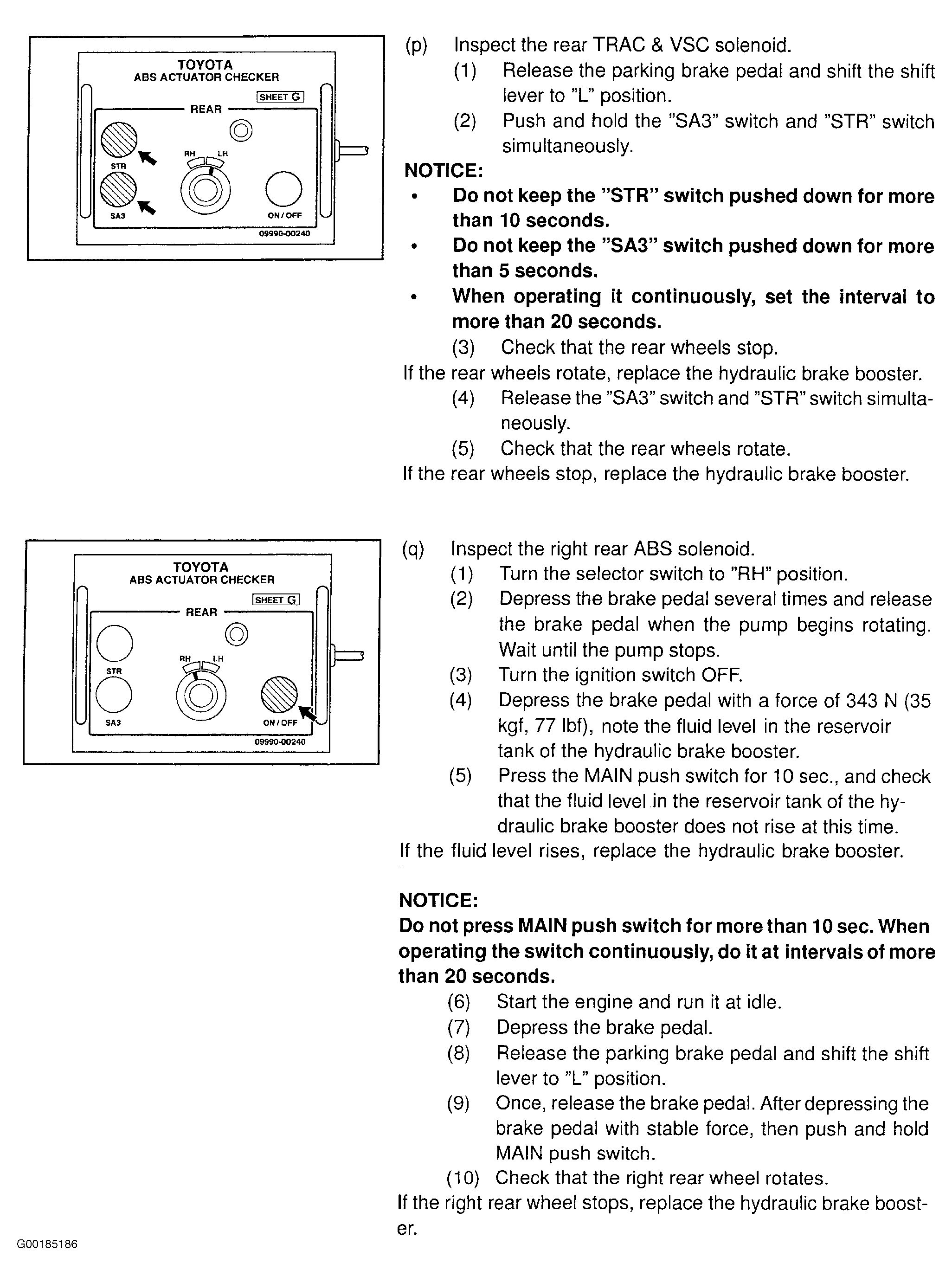

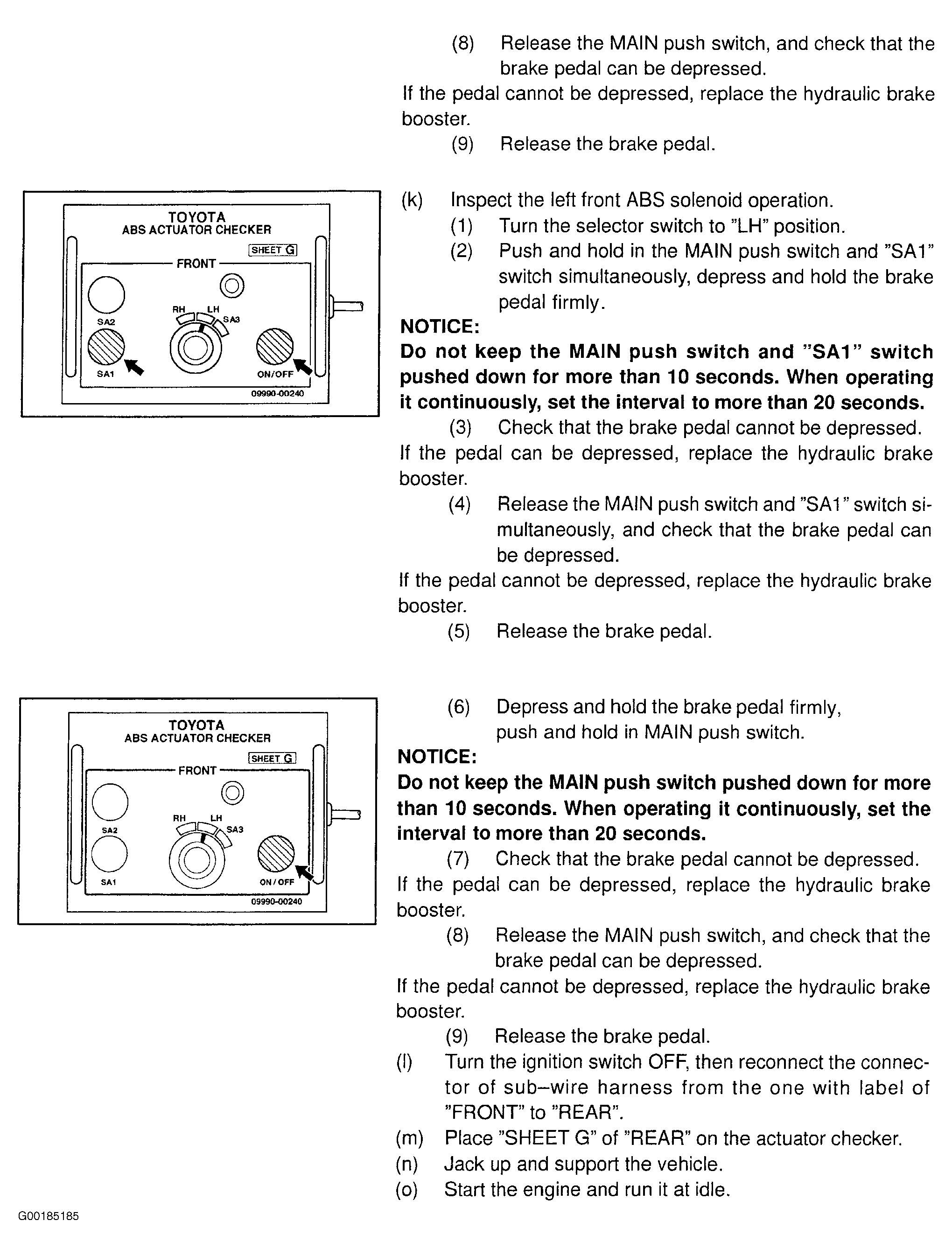

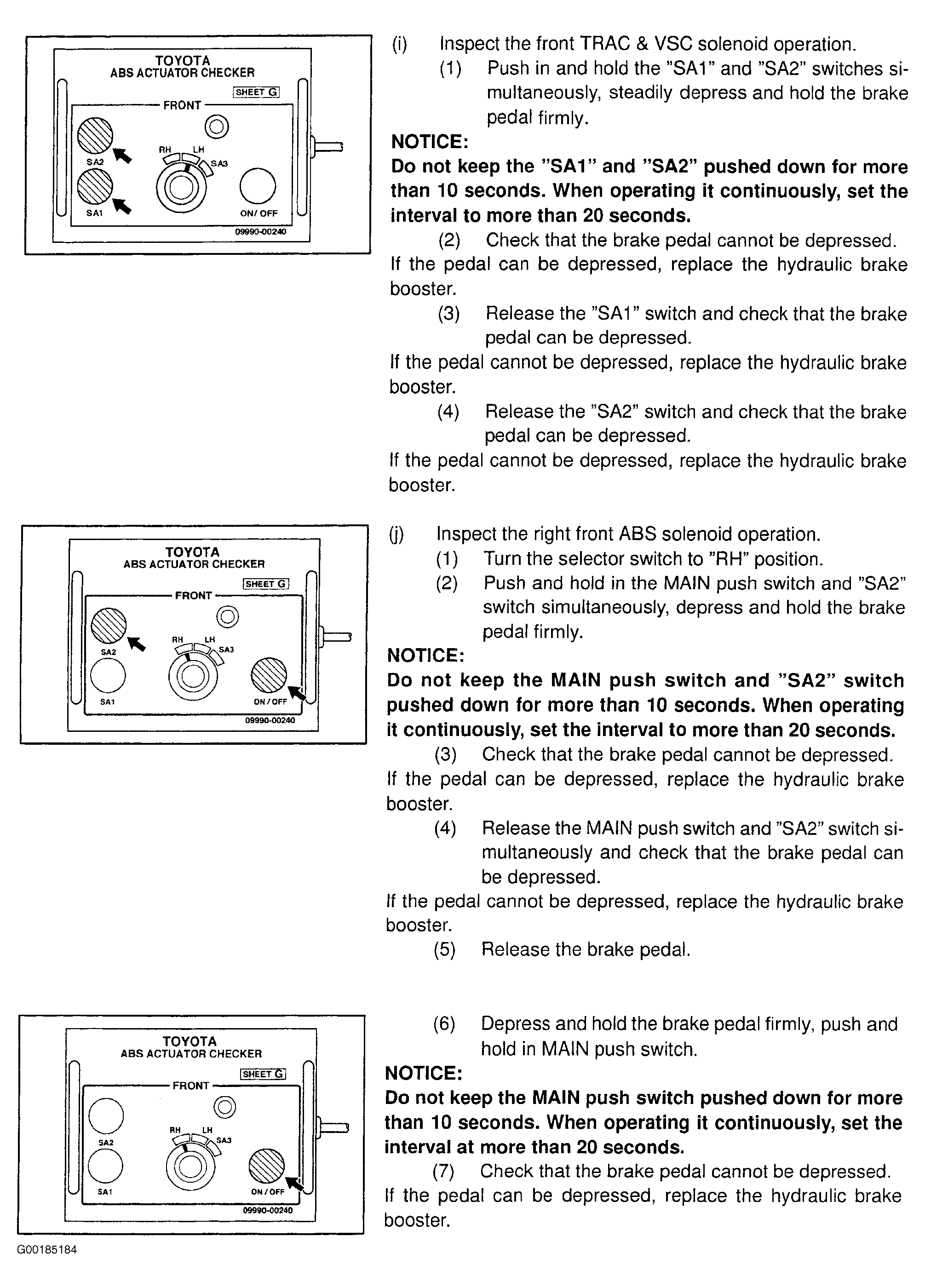

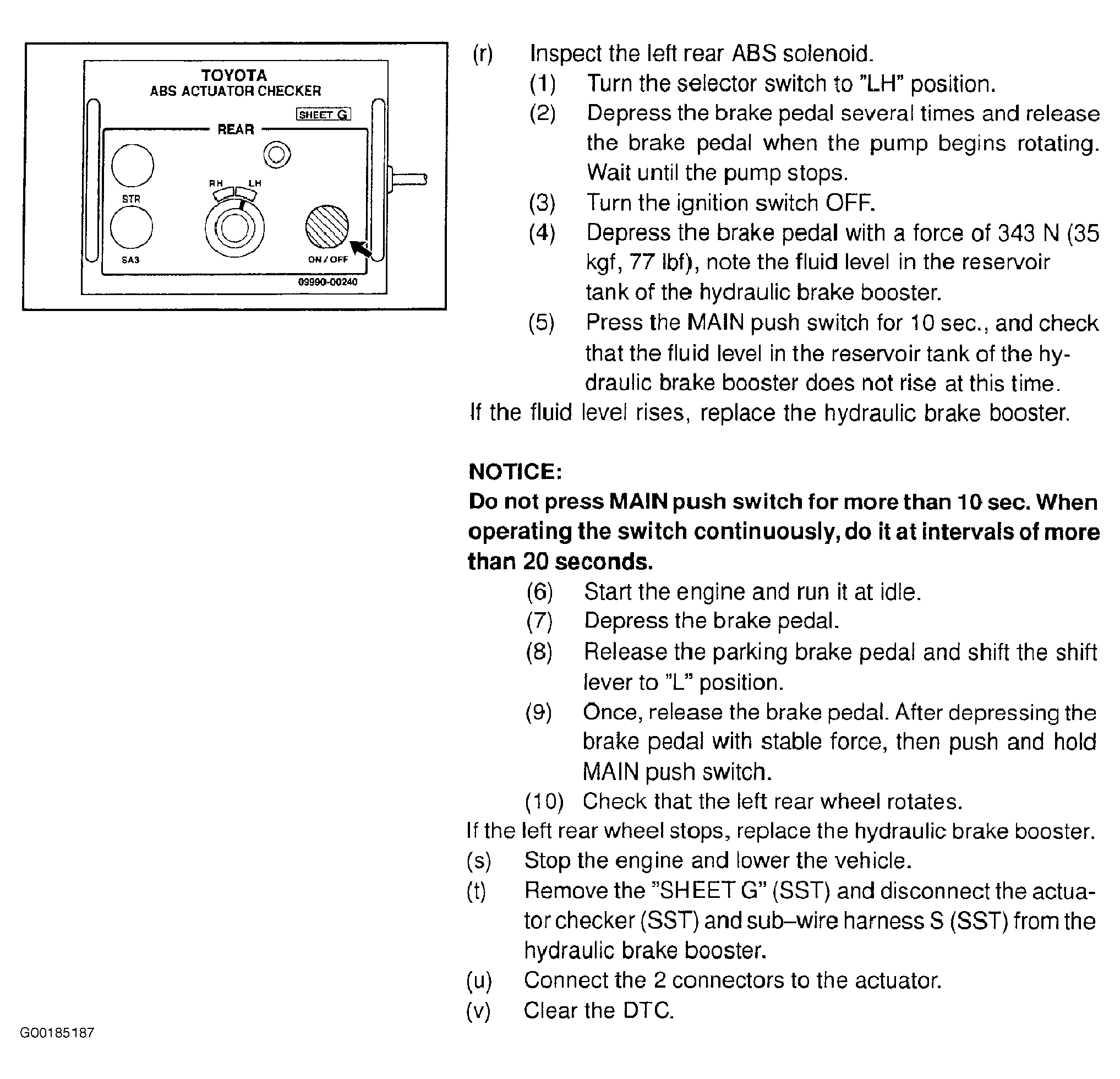

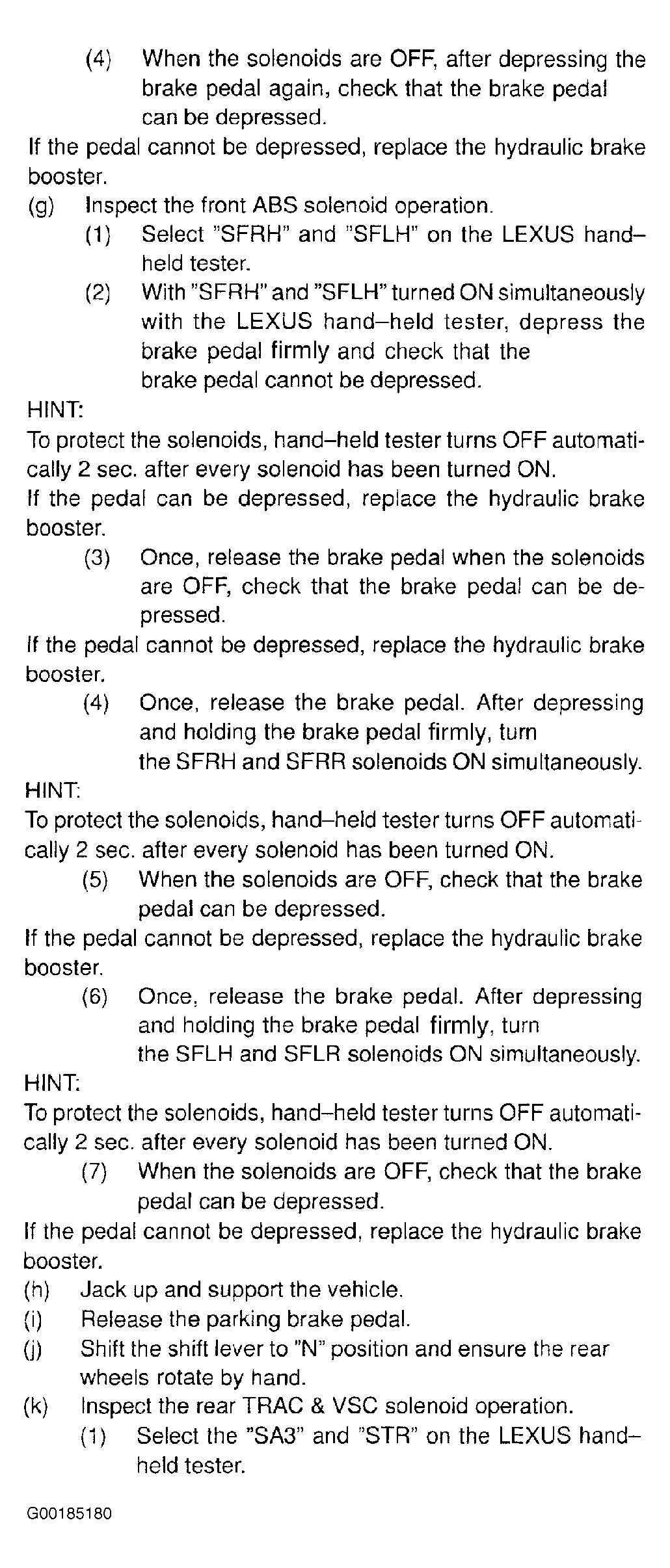

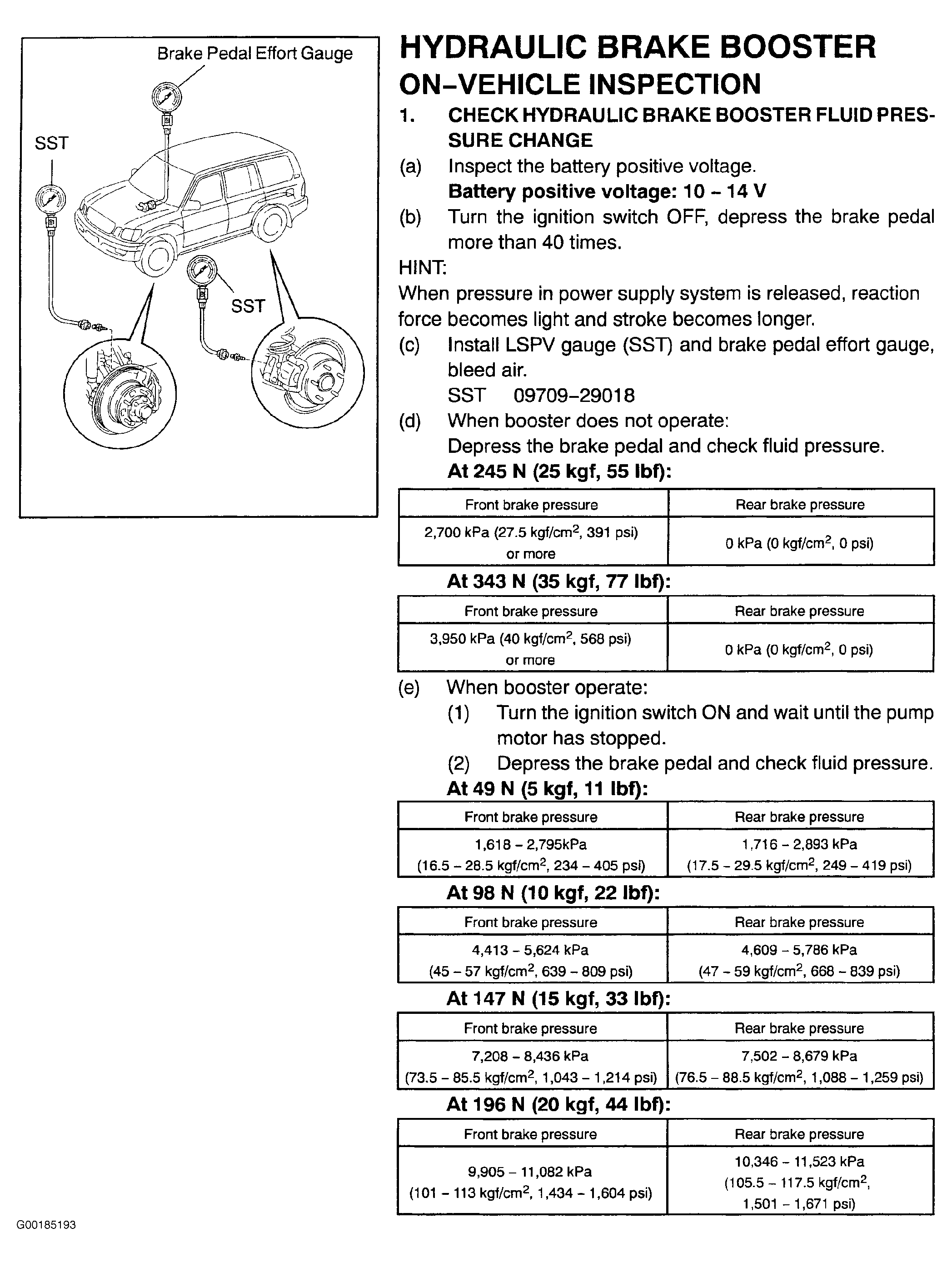

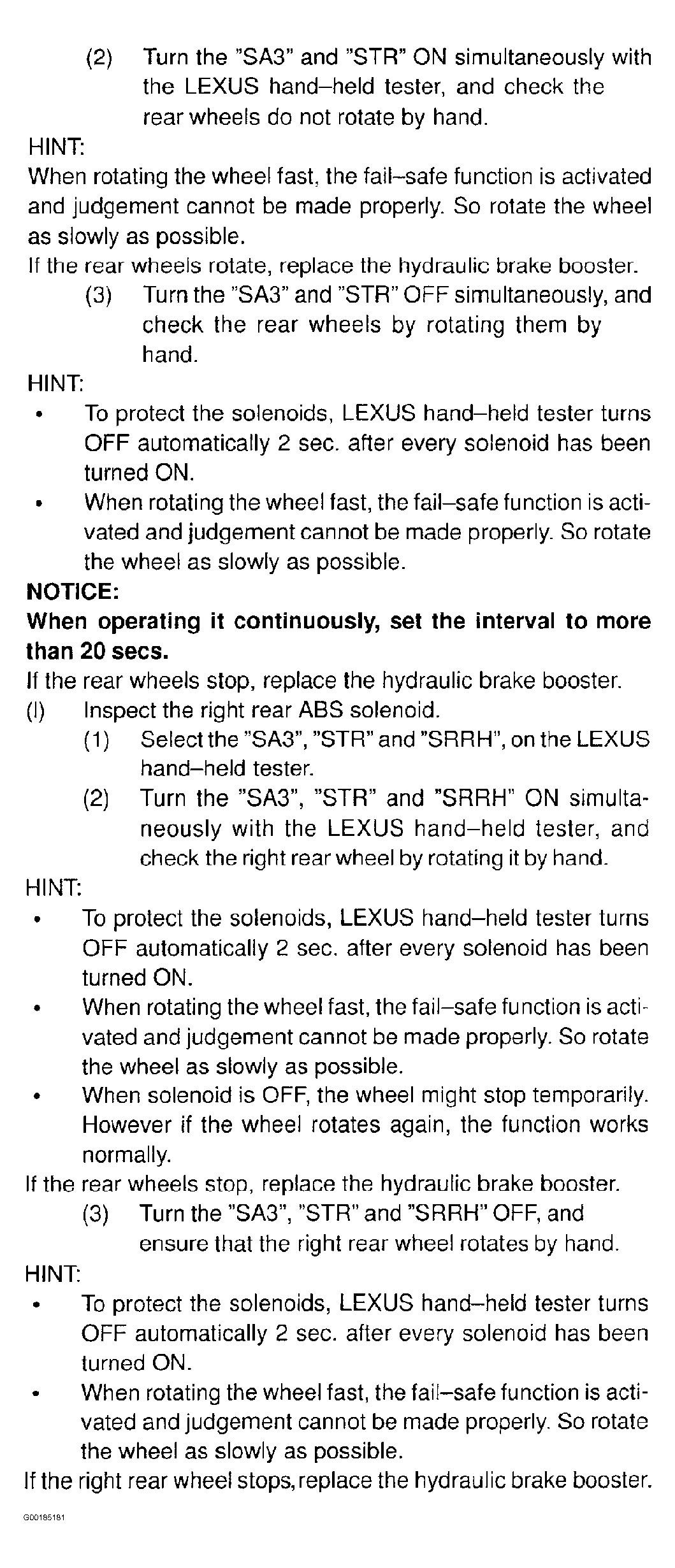

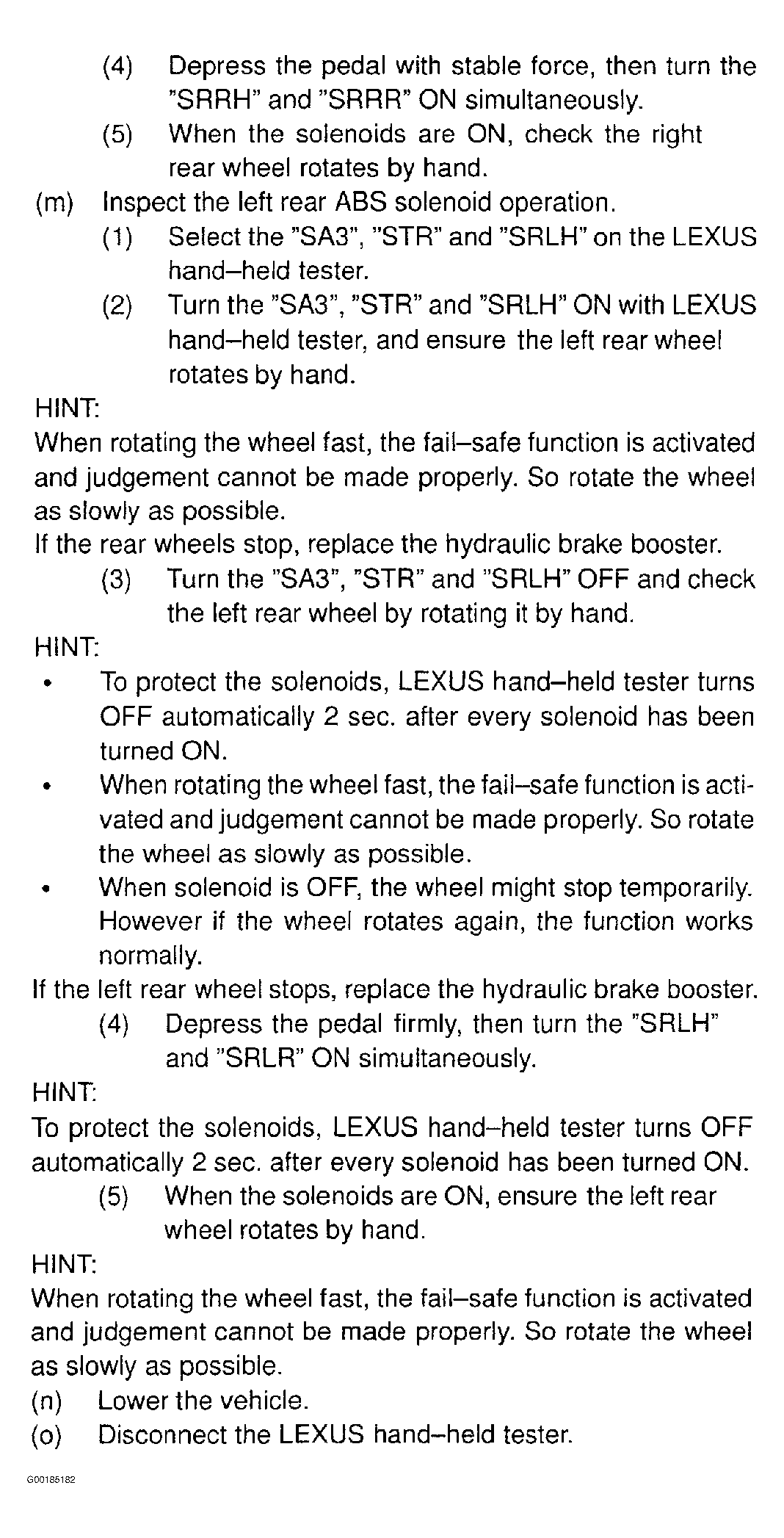

For on vehicle testing of hydraulic brake booster on LX 470 see Fig 1 and Fig 3-Fig 11 .

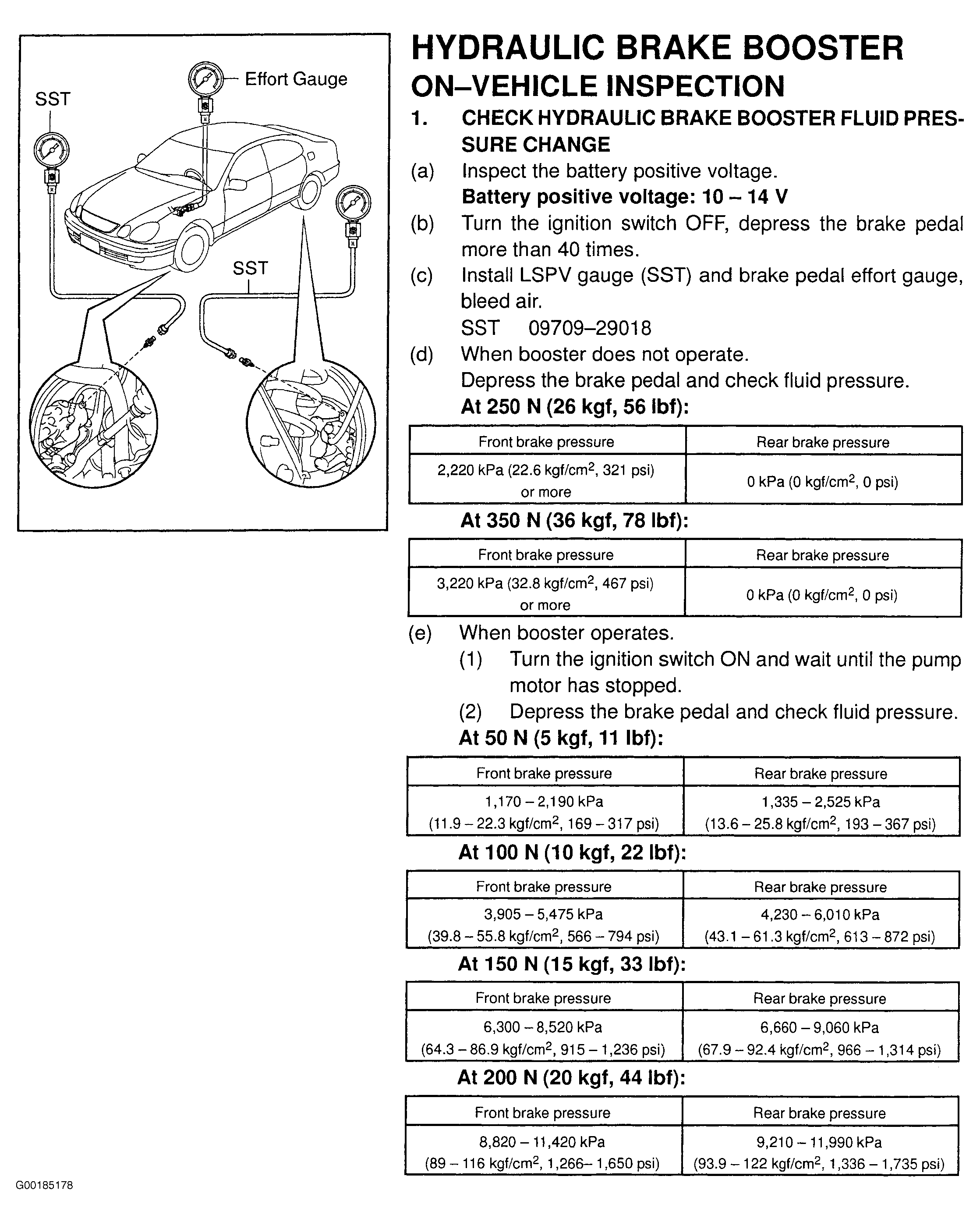

For on vehicle testing of hydraulic brake booster on GS 300 & G S430 see Fig 2-Fig 11 .
