Removal (LS 430)

  1. Remove master cylinder. See MASTER CYLINDER .
  2. Remove No. 1 under cover and No. 1 safety pad. Remove clip and return spring. See Fig 1.
  3. Remove clevis pin.
  4. Remove booster installation nuts and clevis. Pull out brake booster and gasket.

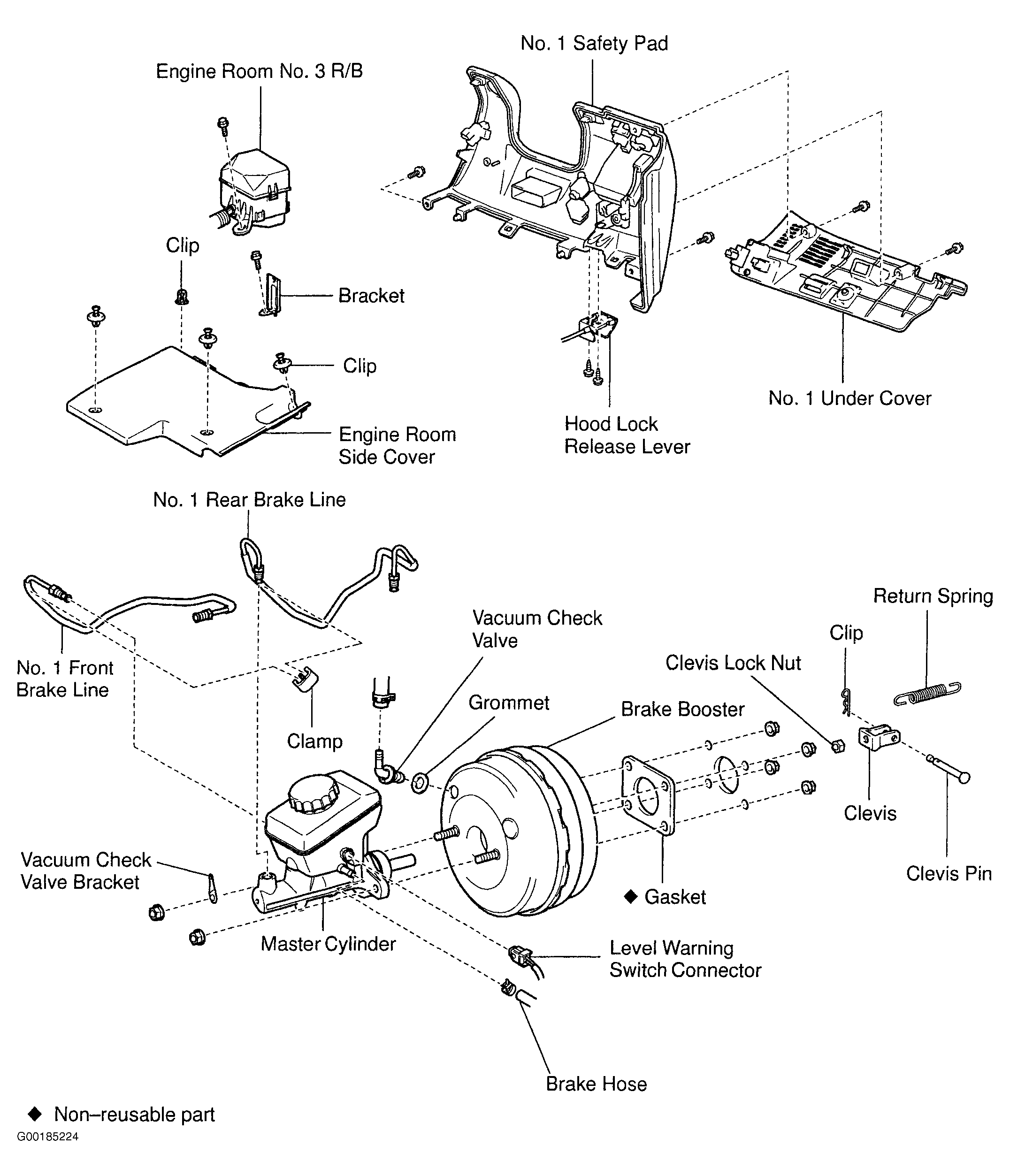

Fig 1: Identifying Brake Booster Components (LS 430)
G00185224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
