Removal & Installation (LX 470 & RX 300)

1. Remove front wheel.
2. Remove union bolt and 2 gaskets from caliper. Disconnect flexible hose from caliper. Use a container to catch brake fluid as it drains out. For LX 470, see Fig 1. For RX 300, see Fig 2.
3. Remove 2 mounting bolts and caliper.
4. On LX 470, remove clip and 2 pins. Remove 2 pad retainer clips. On all vehicles, Remove 2 pads, anti-squeal shims and pad retainers.
5. To install, reverse removal procedure. Tighten mounting bolts to specification. See TORQUE SPECIFICATIONS .
6. Using new gaskets, install flexible hose and tighten union bolt to specification. See TORQUE SPECIFICATIONS .
7. Fill brake reservoir with brake fluid and bleed brake system. See BLEEDING BRAKE SYSTEM .
8. Check system for leaks.

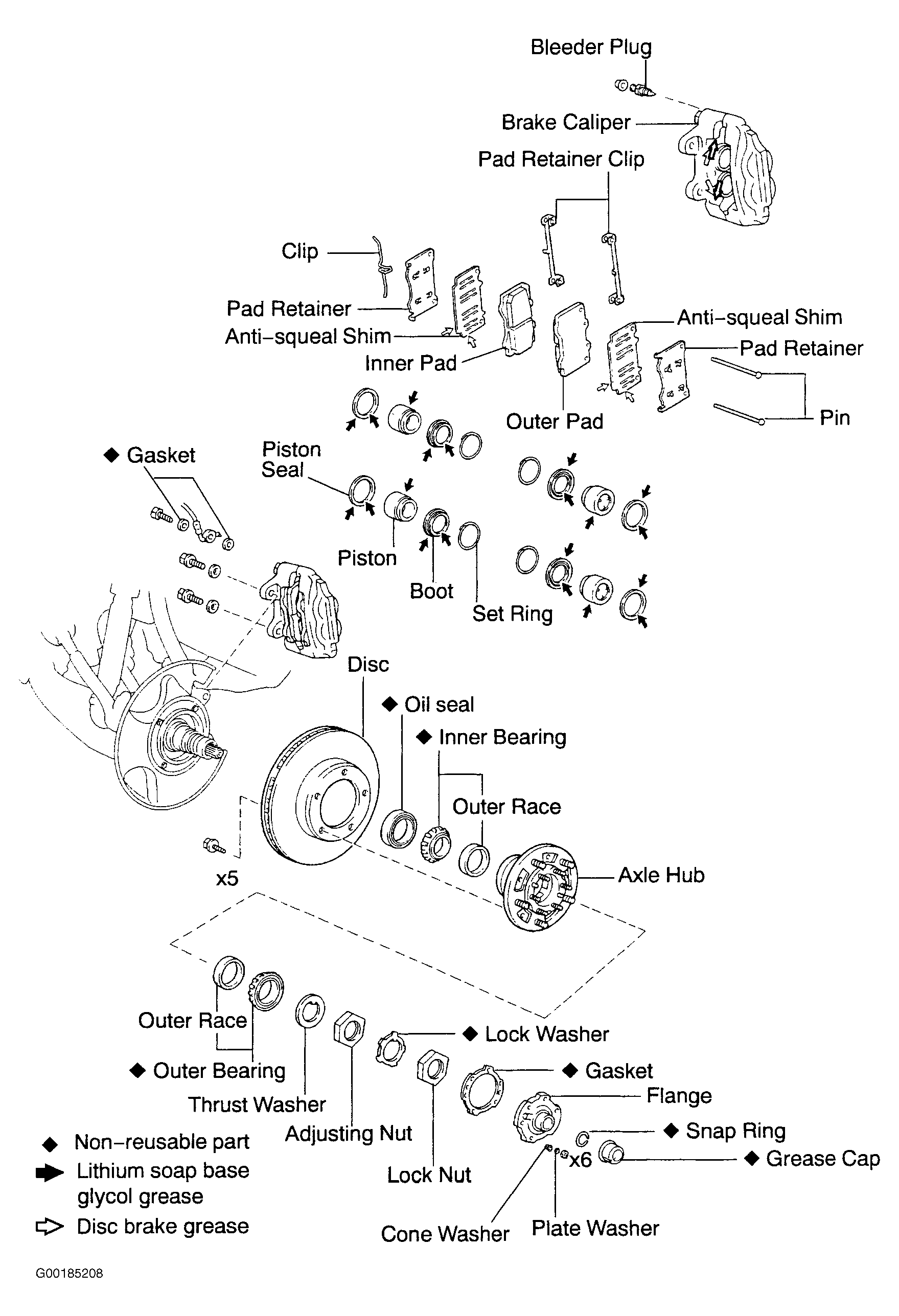

Fig 1: Identifying Front Brake Components (LX 470)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

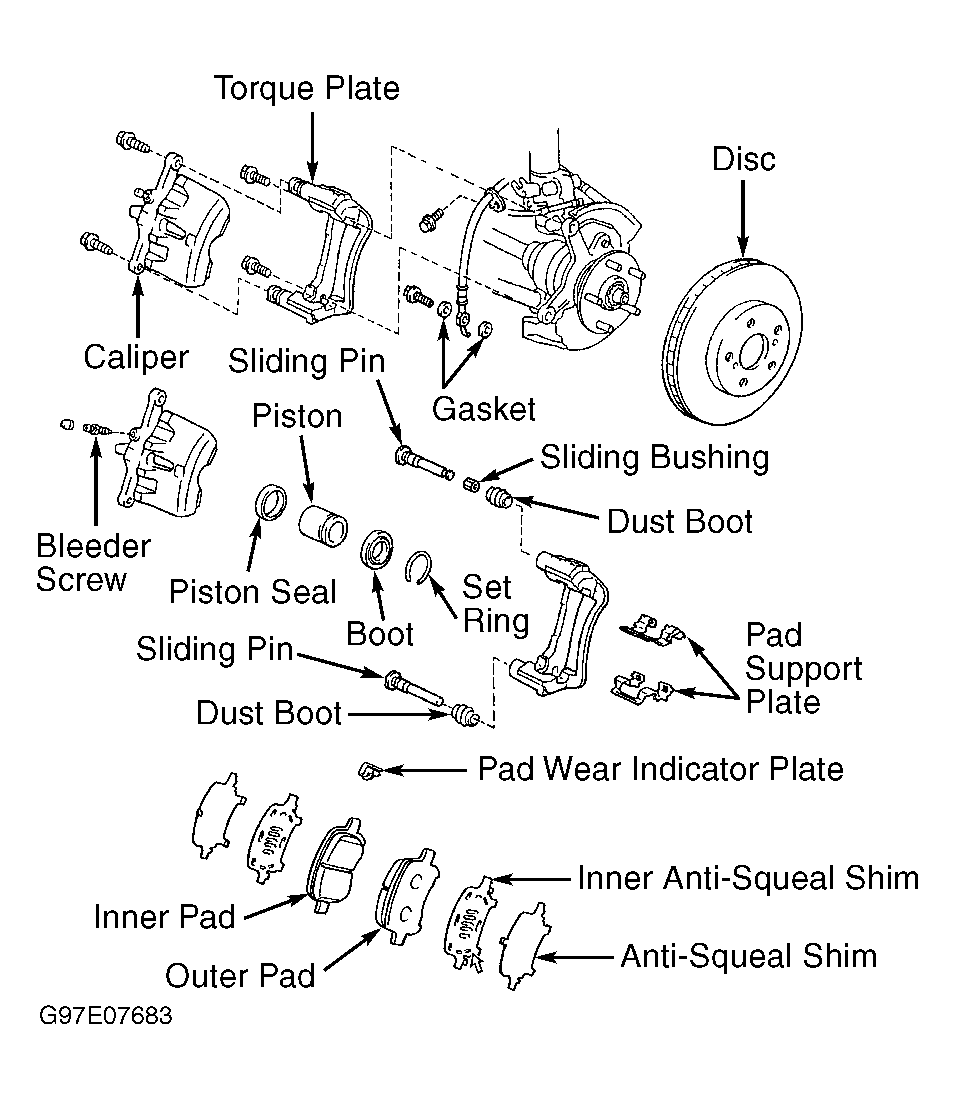

Fig 2: Identifying Front Disc Brake Assembly (RX 300)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
