Assembly (GS 300, GS 430, IS 300 & SC 430)

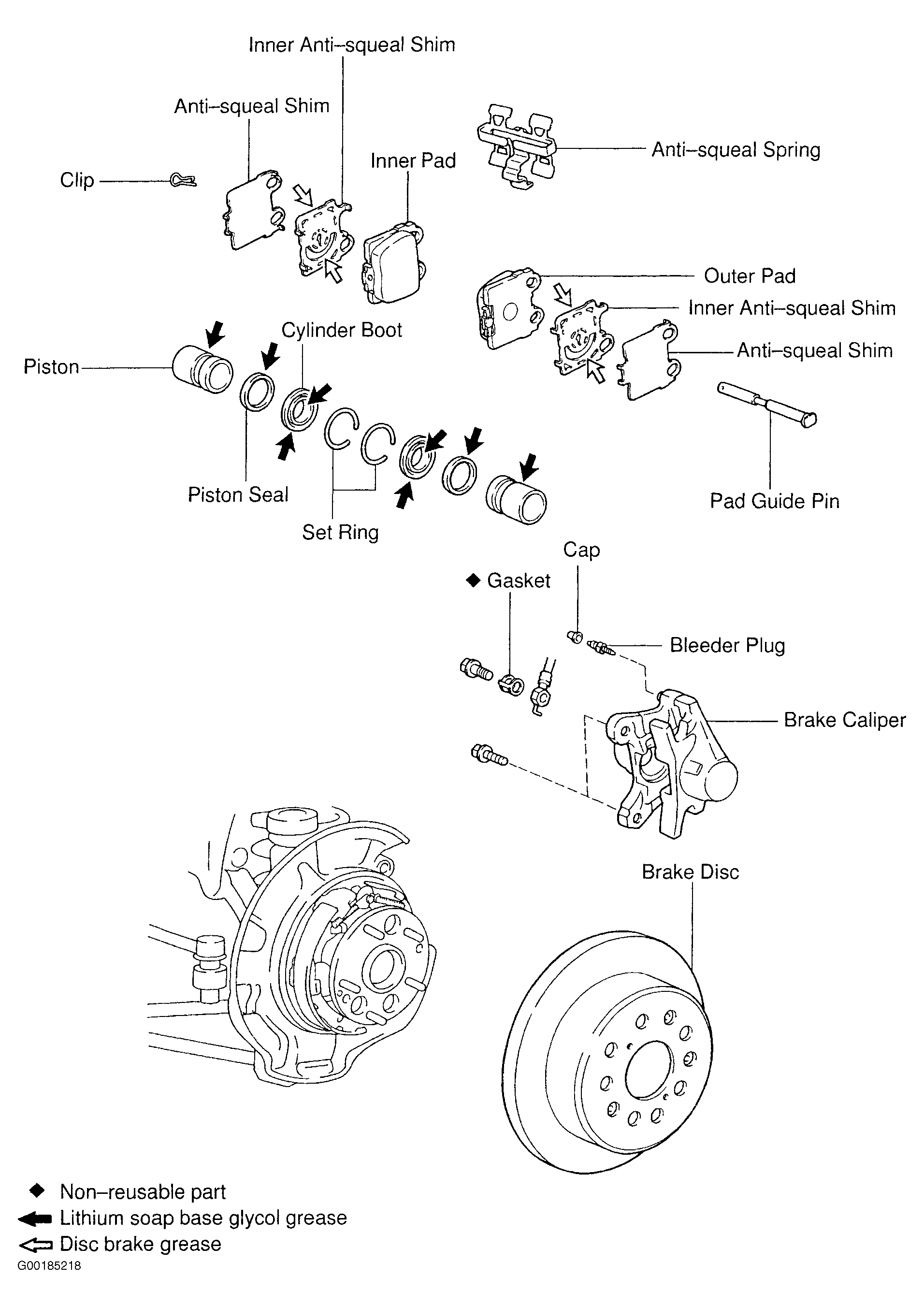

  1. To assemble, reverse disassembly procedure. Apply lithium soap base glycol grease to pistons, piston seals and cylinder boot. See Figure.
  2. Install rear caliper. See REAR BRAKE CALIPER  under REMOVAL & INSTALLATION.
