Hydraulic Brake Booster: Notes

NOTE: Hydraulic brake booster is only used on GS 300, GS 430 & LX 470. See Figure or Fig 1 .

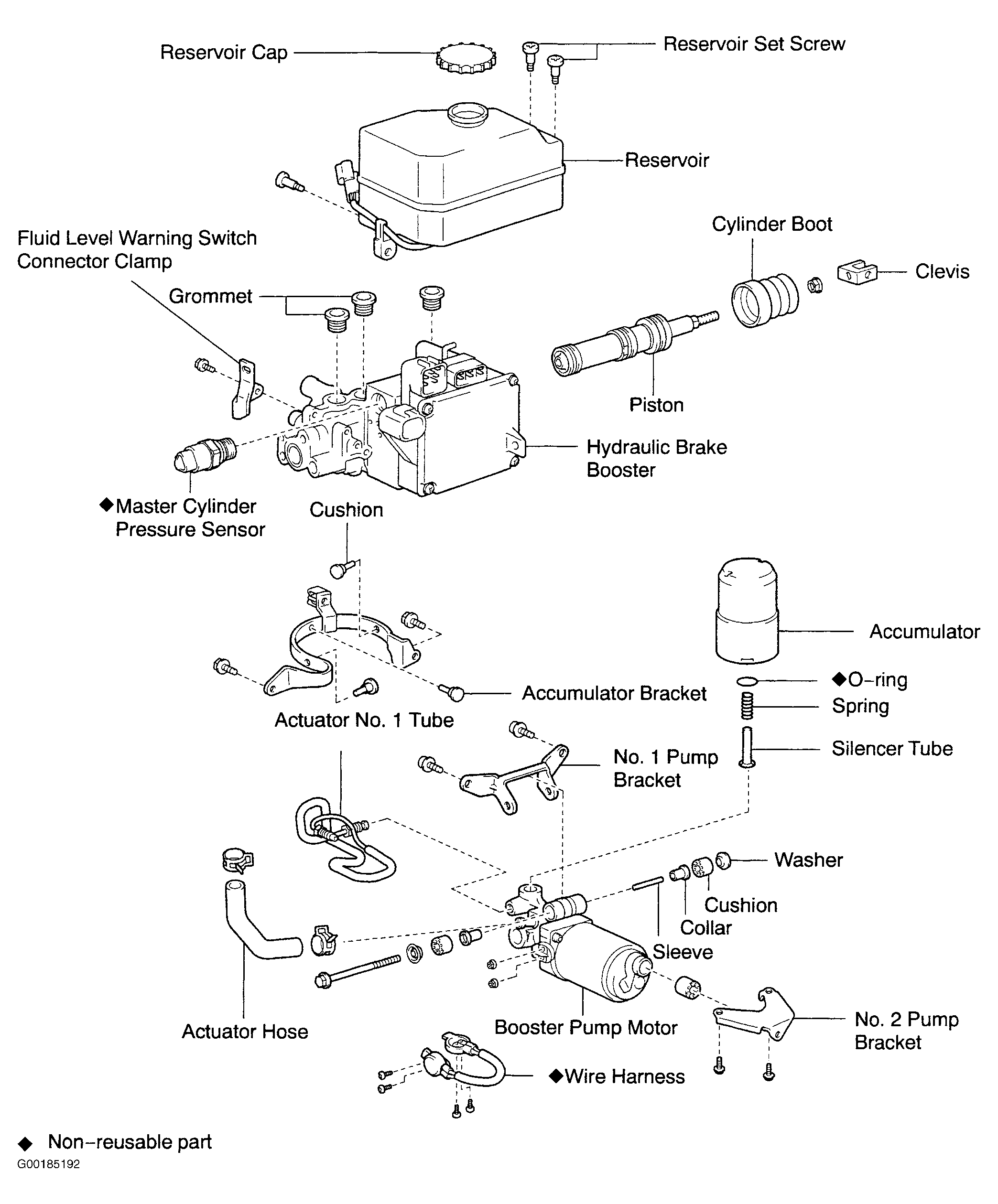

Fig 1: Identifying Hydraulic Brake Booster Components (LX 470)
G00185192Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
