Lx 470

  1. Pull parking brake lever up as far as possible and count number of clicks. There should only be 4-6 clicks. If incorrect, continue procedure.
  2. Ensure rear brake shoe clearance has been adjusted. See PARKING BRAKE SHOE CLEARANCE .
  3. Loosen lock nut and turn buckle until lever travel is correct. See Fig 1.
  4. Tighten lock nut to specification. See TORQUE SPECIFICATIONS .

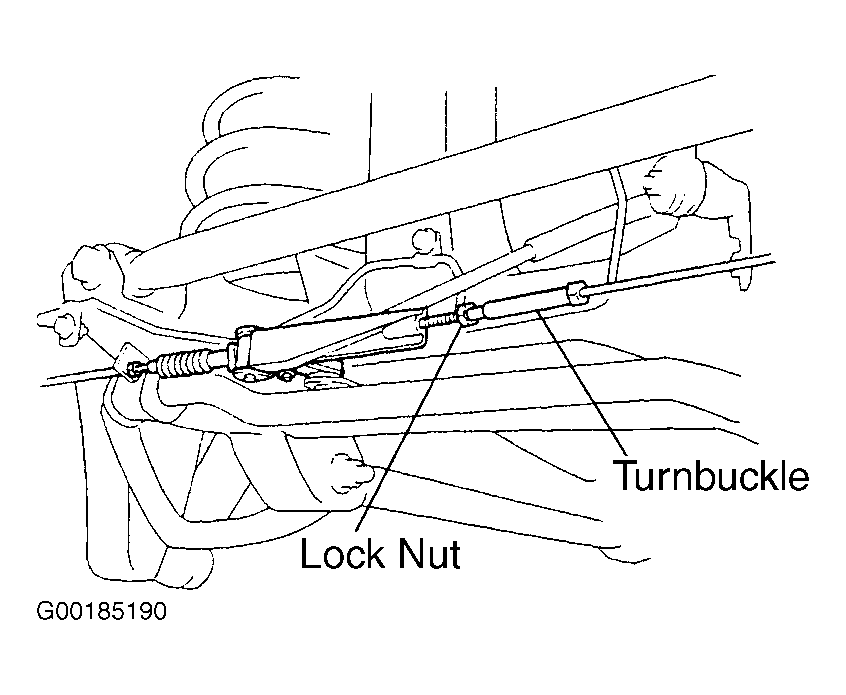

Fig 1: Adjusting Parking Brake Lever (LX 470)
G00185190Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
