Fuel Gauge Resistance

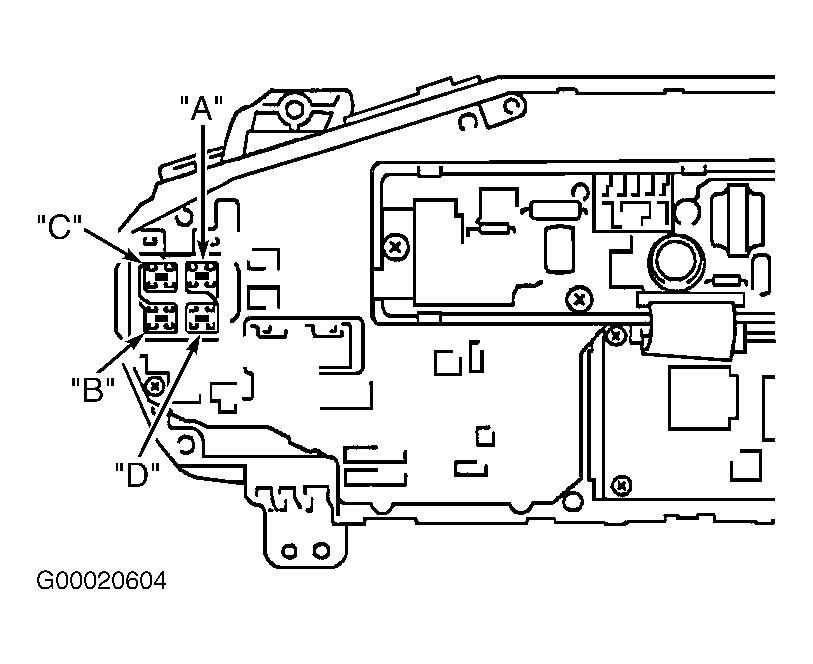

Remove instrument cluster. See INSTRUMENT CLUSTER under REMOVAL & INSTALLATION. Measure resistance between specified terminals on back of instrument cluster. See FUEL GAUGE RESISTANCE table. See Fig 1. If resistance is not as specified, replace fuel gauge.
FUEL GAUGE RESISTANCE
| Terminals | Ohms (Approximate) |
|---|---|
| A & B | 250 |
| C & D | 250 |
