Disassembly & Reassembly

Remove 6 screws and remove cover from meter case. See Fig 1. Remove 8 screws and telltale light assembly. See Fig 2. Disconnect flat circuit plate printed circuit. Remove 4 screws and meter ECU plate assembly. See Fig 3.
Remove meter case and meter circuit plate, using care not to break 5 tabs on meter case. Remove one screw and remove meter glass and meter plate. To assemble, reverse disassembly procedure.

Fig 1: Removing 6 Instrument Cluster Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

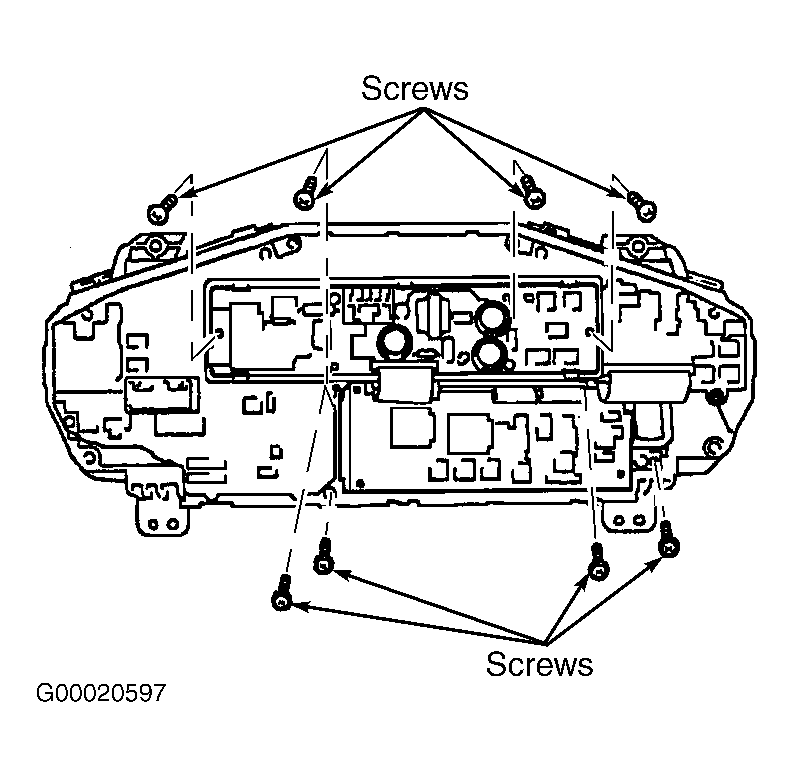

Fig 2: Removing 8 Instrument Cluster Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

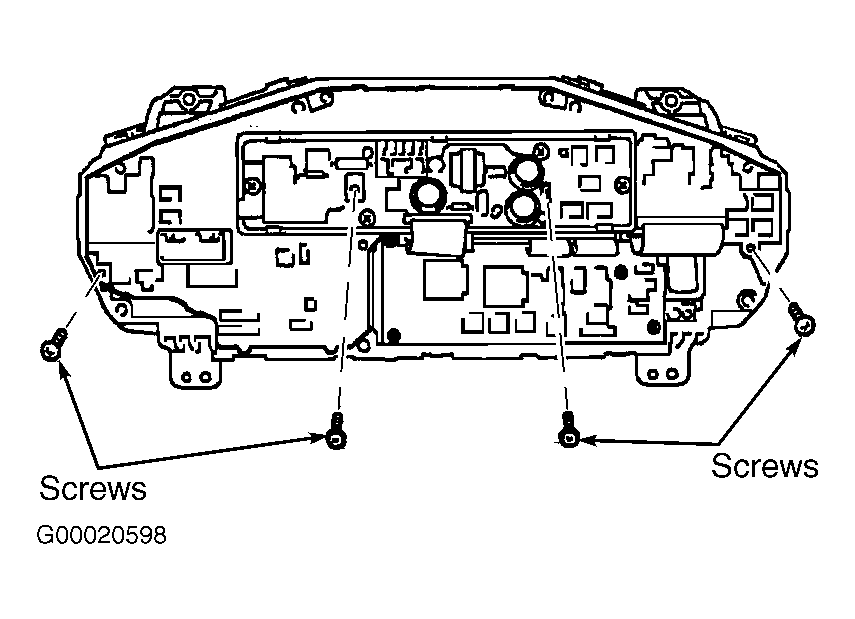

Fig 3: Removing 4 Instrument Cluster Screws
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
