Tachometer Resistance

Remove instrument cluster. See INSTRUMENT CLUSTER  under REMOVAL & INSTALLATION. Measure resistance between specified terminals on back of instrument cluster. See Fig 1. See TACHOMETER RESISTANCE  table. If resistance is not as specified, replace tachometer.

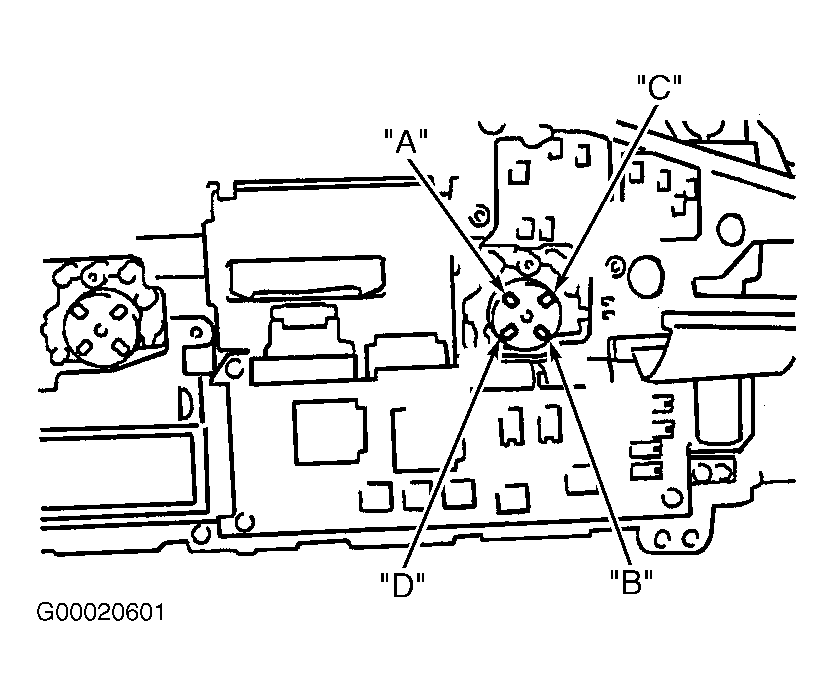

Fig 1: Identifying Tachometer Terminals At Rear Of Instrument Cluster
G00020601Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
TACHOMETER RESISTANCE

Tachometer Resistance Ohms (Approximate)
A & B 250
C & D 250
