Engine Coolant Temperature Gauge Resistance

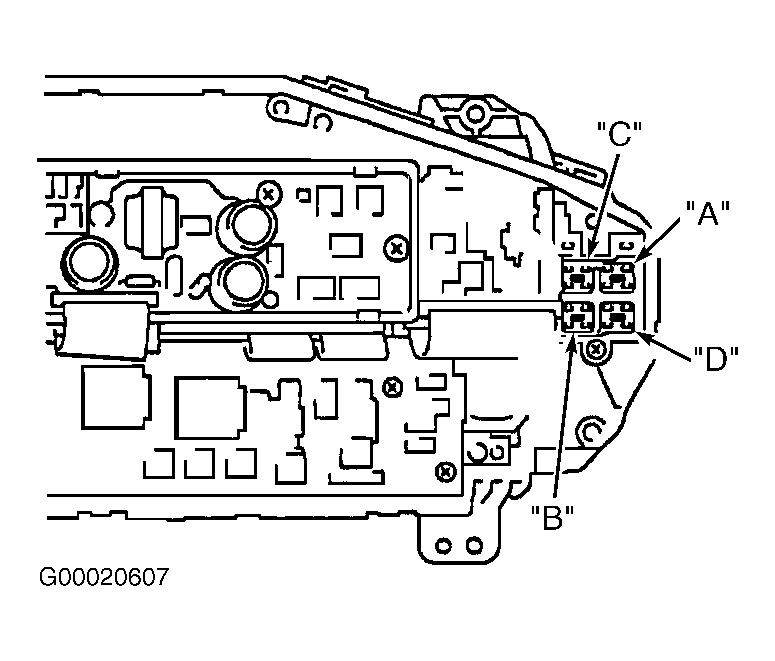

Remove instrument cluster. See INSTRUMENT CLUSTER under REMOVAL & INSTALLATION. Measure resistance between specified gauge terminals on back of instrument cluster. See ENGINE COOLANT TEMPERATURE GAUGE RESISTANCE table. See Fig 1. If resistance is not as specified, replace engine coolant temperature gauge.
ENGINE COOLANT TEMPERATURE GAUGE RESISTANCE
| Terminals | Ohms (Approximate) |
|---|---|
| A & B | 250 |
| C & D | 250 |
