Brake Pad Clicking Noise (BR003-00)

Publication date: 2000-10-20
Reference number: BR003-00

BRAKE PAD CLICKING NOISE

BRAKE PAD CLICKING NOISE

TECHNICAL SERVICE BULLETIN

Reference Number(s): BR003-00, Date of Issue:  October 20, 2000
LEXUS: 1990 - 2000 All Models
SECTION: Brakes
COPYRIGHT: © 2018 Lexus, a division of Toyota Motor Sales, USA License Agreement TMS1002

Introduction

A clicking type noise may be noticed when first applying the brakes after changing vehicle travel direction (Drive/Forward to Reverse, Reverse to Drive/Forward)  . This is a normal noise caused by the required brake pad-to-caliper clearances. When the direction of travel is changed, the brake pads may "shift" towards the new direction of travel. When the brake pad contacts the caliper, a clicking noise may be heard.

To minimize this clicking noise, a disc brake caliper grease has been made available for use during brake service/maintenance operations. Under normal usage conditions this grease should be effective for a period of 6 months to 1 year.

Applicable Vehicle

1990 - 2000  model year Lexus vehicles, all models.

Parts Information

PARTS INFORMATION

PREVIOUS PART NUMBER CURRENT PART NUMBER PART NAME
N/A 08887-80609 Disc Brake Caliper Grease (50 g tube)

Warranty Information

WARRANTY INFORMATION

OP CODE DESCRIPTION TIME OPN T1 T2
N/A Not Applicable to Warranty --- --- --- ---

Application Procedure

There are two types of brake calipers: floating and fixed. Check the type of brake caliper installed on the vehicle by removing the wheel assembly.

  1. Floating Type Brake Caliper
    1. Lift up or remove the brake caliper and suspend it securely.

      HINT: Do not disconnect the flexible hose from the brake caliper.

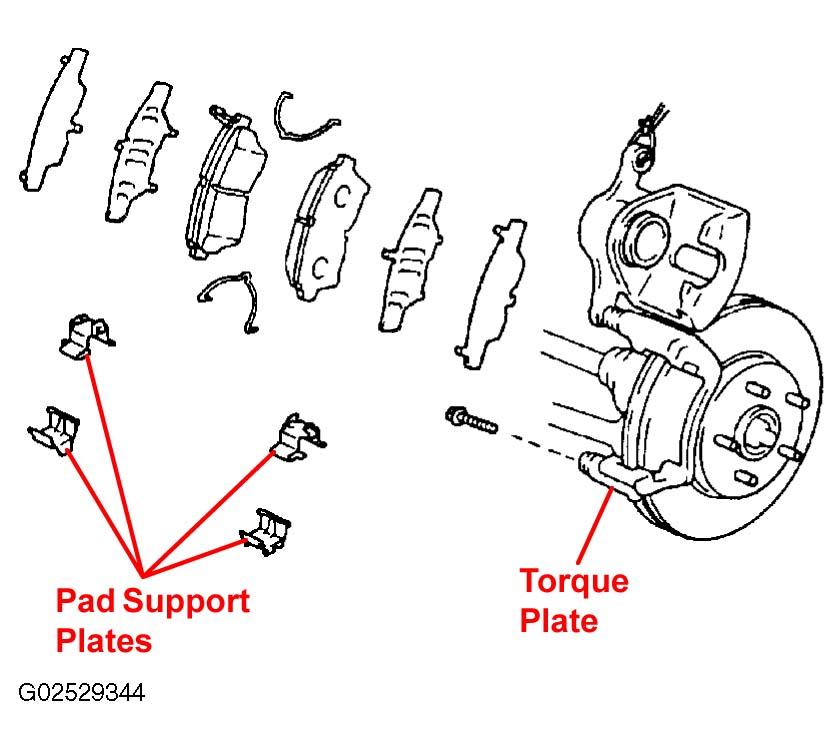

      Fig 1: Floating Type Brake Caliper - Exploded View
      G02529344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. If equipped with anti-squeal spring: Remove the anti-squeal springs.
    3. Remove the brake pads with anti-squeal shims.
    4. Remove the pad support plates from the torque plate. Clean any dust from the pad support plates, torque plates and brake pads.
    5. Apply a small amount of the disc brake caliper grease (1-2 mm thick) to both sides of the pad support plates.
      NOTE: Do NOT apply grease to the friction surfaces of the brake pads or the disc rotor.

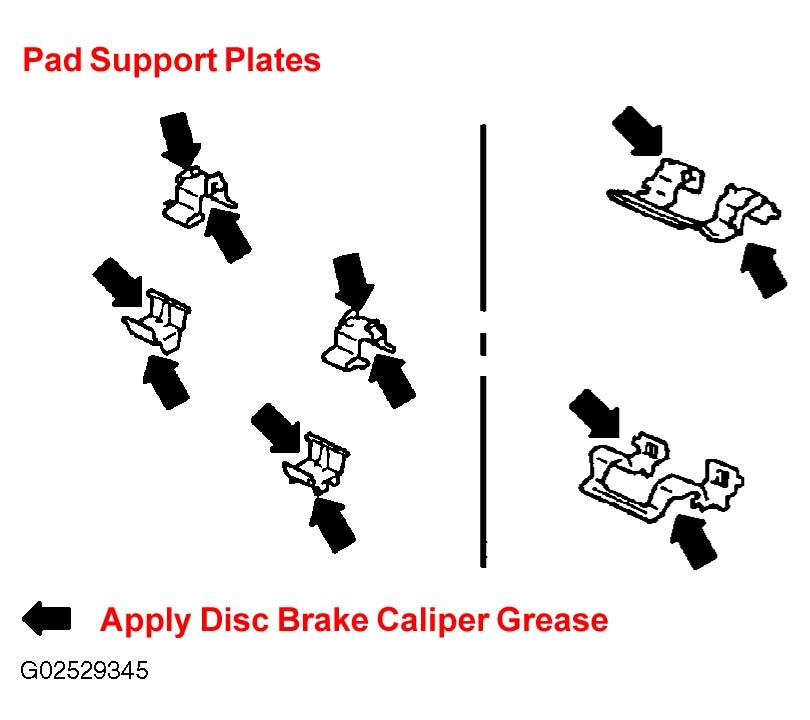

      Fig 2: Pad Support Plates
      G02529345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    6. If the pad support plate is fixed to the torque plate with adhesive tape, perform the operation according to the following flow chart (see Fig 3).

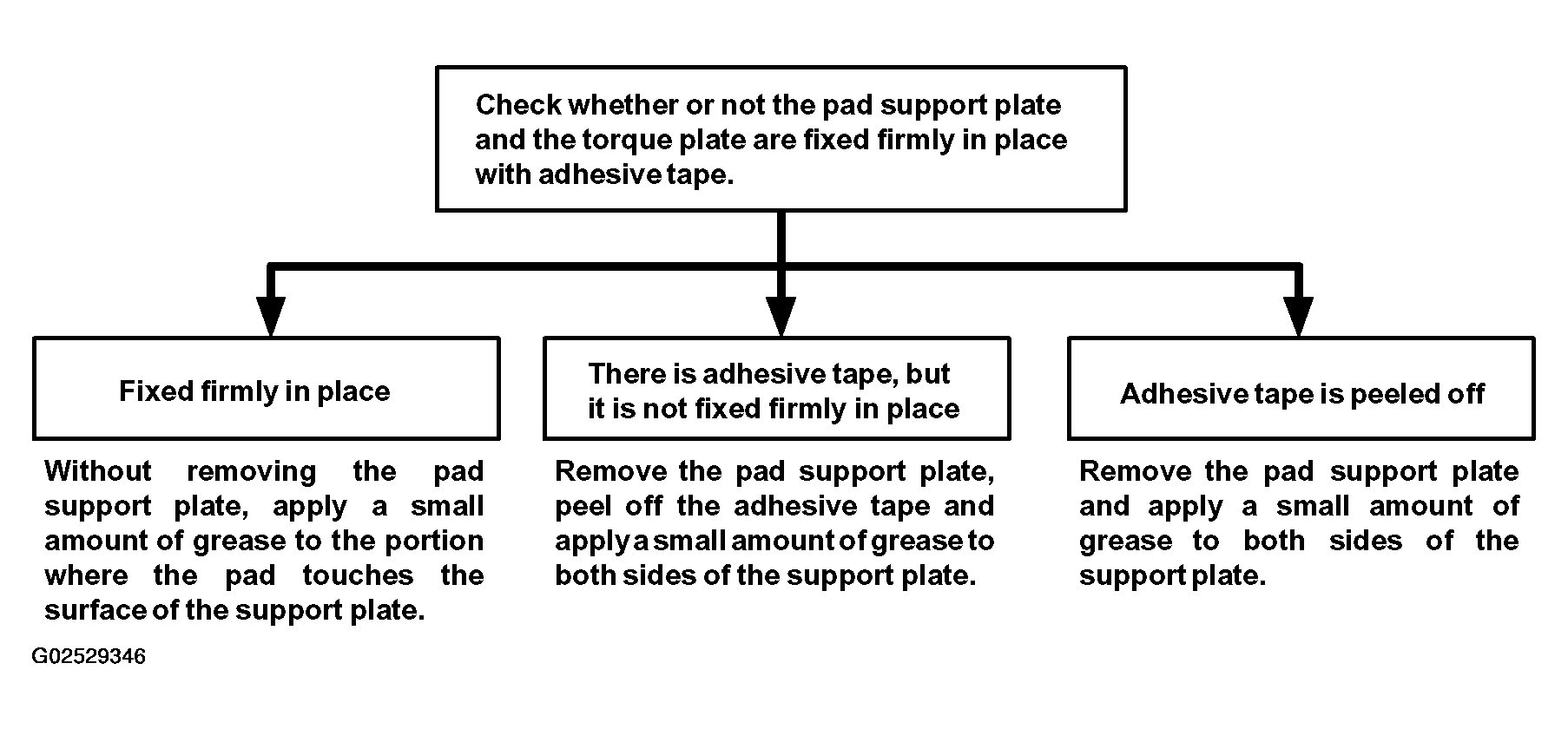

      Fig 3: Flow Chart For Application Of Grease
      G02529346Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Apply a small amount of the disc brake caliper grease (1-2 mm thick) to the caliper as indicated in the illustration (see Fig 4).

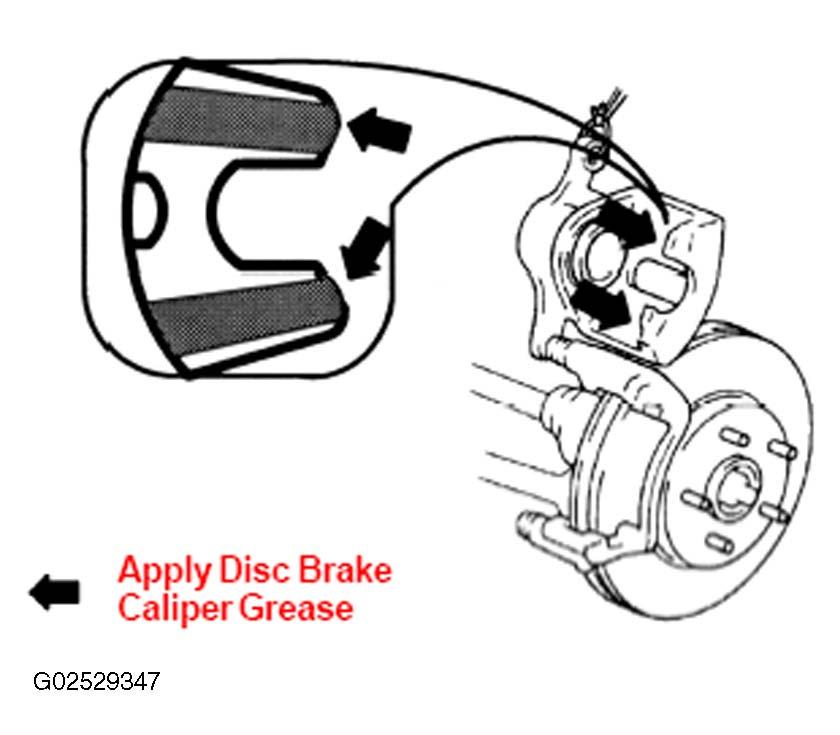

      Fig 4: Apply Disc Brake Caliper Grease (Floating Type Brake Caliper)
      G02529347Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    8. Install the brake pads with the anti-squeal shims.
    9. If equipped with anti-squeal spring: Install the anti-squeal springs.
    10. Press the piston in firmly and install the brake caliper.
      NOTE:
      • Clean excess grease from brake pad and caliper.
      • Do NOT apply grease to the friction surfaces of the brake pads or the disc rotor.
    11. Install the wheel assembly.
  2. Fixed Type Brake Caliper

    There are two types of brake pads:

    • Type "A"  : Has a projection on the upper and lower side of the brake pad. (See Fig 5.)
    • Type "B"  : Has a flat upper and lower edge on the brake pad backing plate.

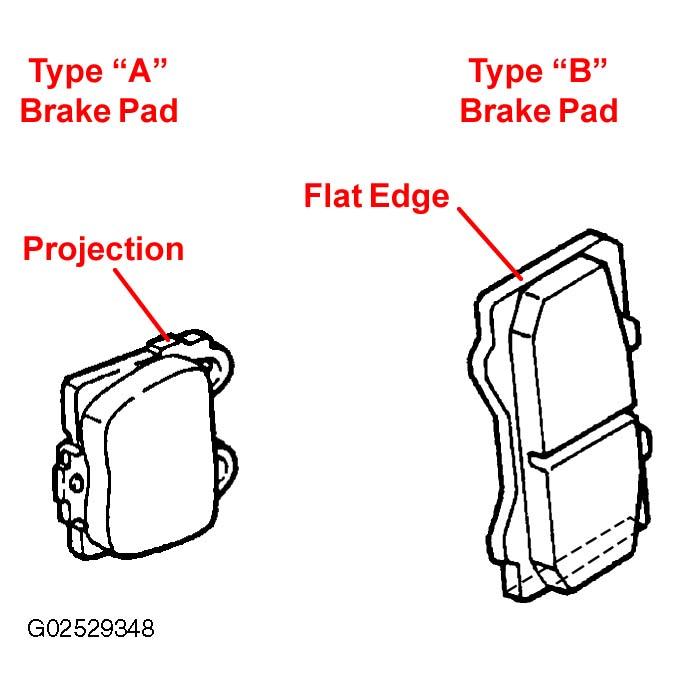

    Fig 5: Brakes Pad
    G02529348Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    Type "A" Brake Pad

    1. Remove the anti-squeal spring, clip and pad guide pin.
    2. Remove the brake pads with the anti-squeal shims.
    3. Clean any dust from the brake pads.

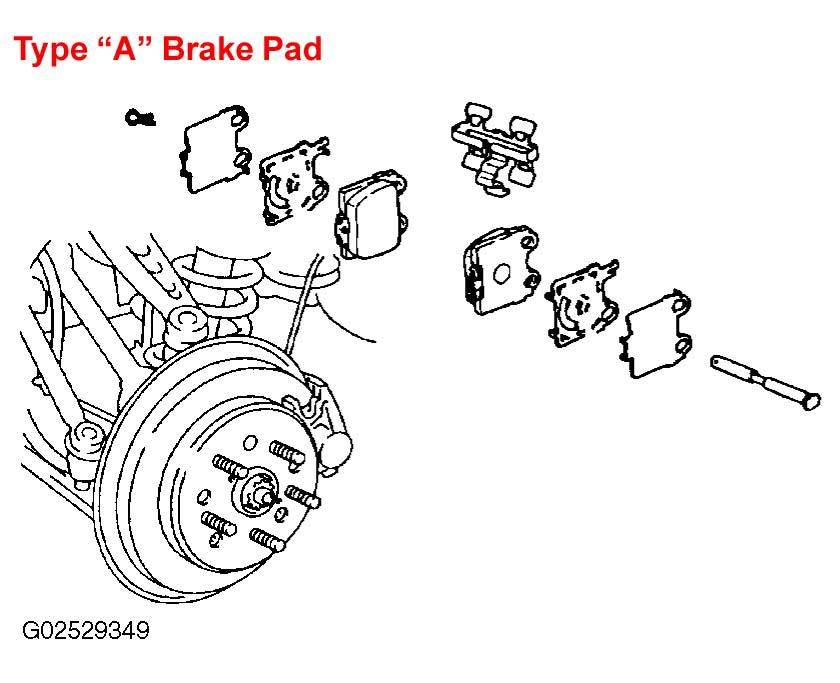

      Fig 6: Type "A" Brake Pad
      G02529349Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Apply a small amount of the disc brake caliper grease (1-2 mm thick) to the areas indicated in the illustration (see Fig 7).

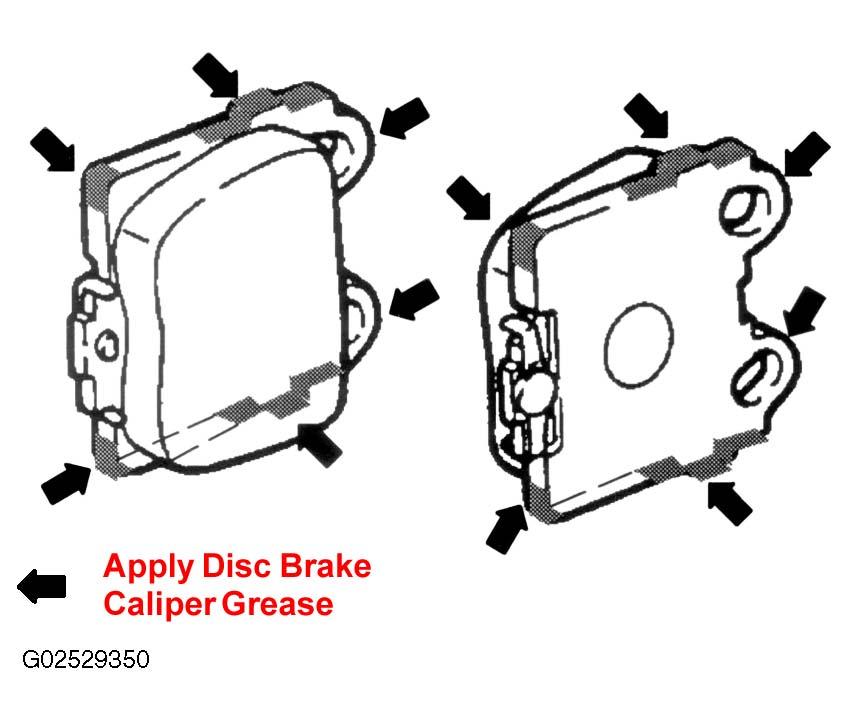

      Fig 7: Apply Disc Brake Caliper Grease (Type "A" Brake Pad)
      G02529350Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Do NOT apply grease to the friction surfaces of the brake pads or the disc rotor.
    5. Install the brake pads with the anti-squeal shims.
      NOTE: Clean excess grease from the brake pads and caliper.
    6. Install the pad guide pin, clip and anti-squeal spring.
    7. Install the wheel assembly.

    Type "B" Brake Pad

    1. Remove the clip, pins and anti-rattle spring/pad retainer clip.
    2. Remove the brake pads with the anti-squeal shims.
    3. Clean any dust from the brake pads.

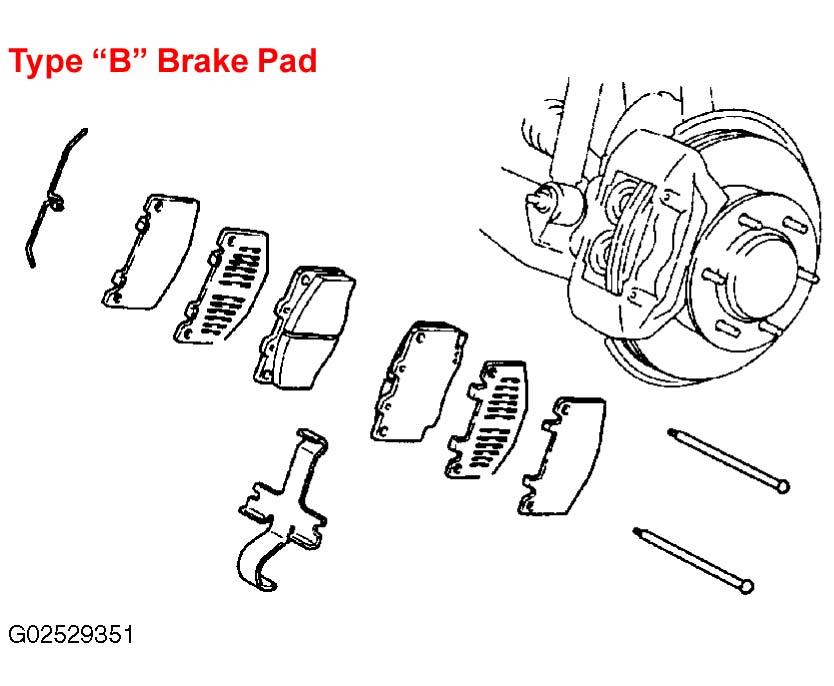

      Fig 8: Type "B" Brake Pad
      G02529351Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Apply a small amount of the disc brake caliper grease (1-2 mm thick) to the areas indicated in the illustration (see Fig 9).

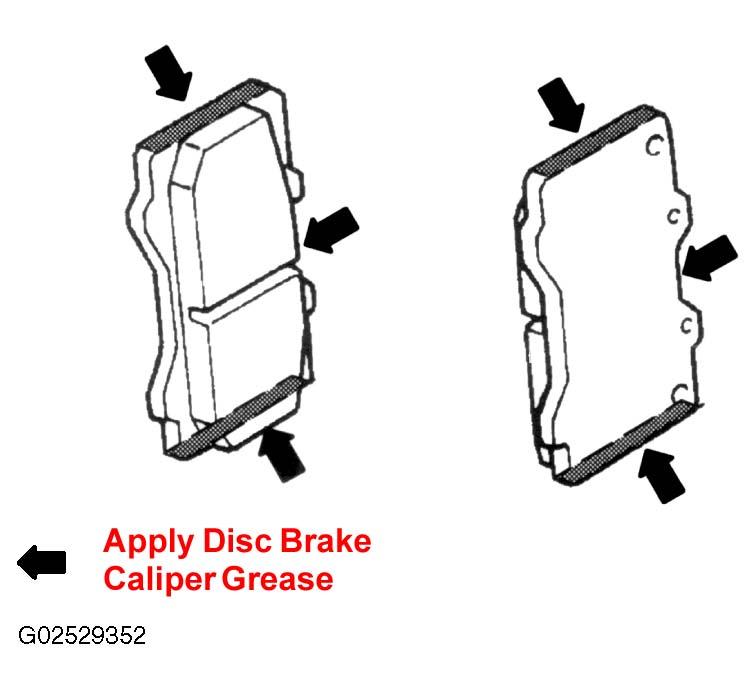

      Fig 9: Apply Disc Brake Caliper Grease (Type "B" Brake Pad)
      G02529352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Do NOT apply grease to the friction surfaces of the brake pads or the disc rotor.
    5. Install the brake pads with the anti-squeal shims.
      NOTE: Clean excess grease from the brake pads and caliper.
    6. Install the pad guide pin, clip and anti-squeal spring.
    7. Install the wheel assembly.
