Reassembly (GS300, GS400, SC300 & SC400)

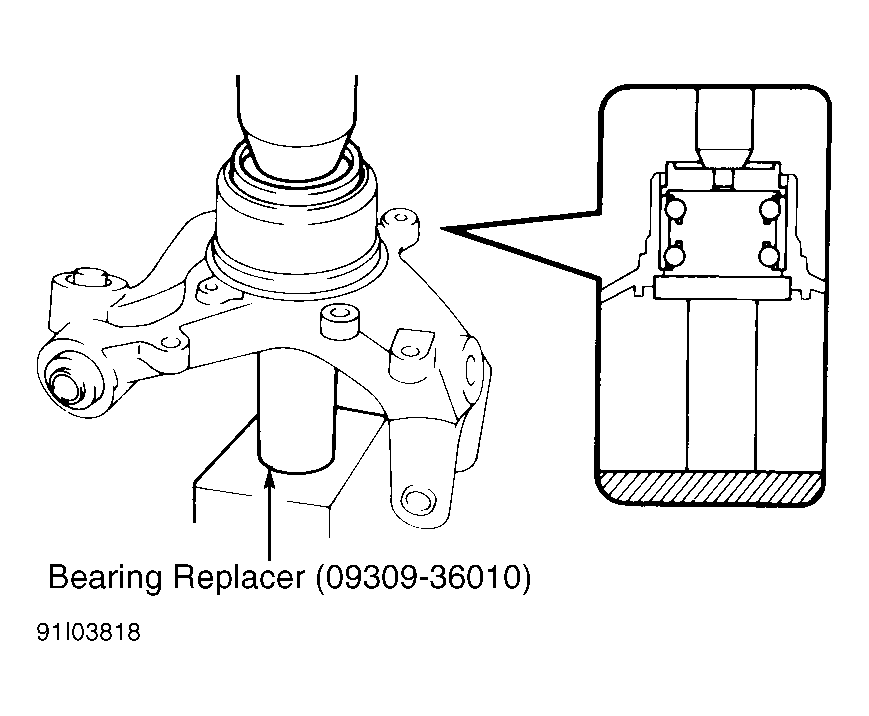

  1. Using Bearing Replacer (09309-36010) and Seal Installer (09608-32010), press bearing into hub assembly. See Figure. Install bearing snap ring. Install snap ring and outer seal.
  2. Temporarily install backing plate onto hub assembly. Install inner bearing race. Press axle hub into hub assembly. Using seal installer, install inner oil seal and dust shield.
