Removal (ES300)

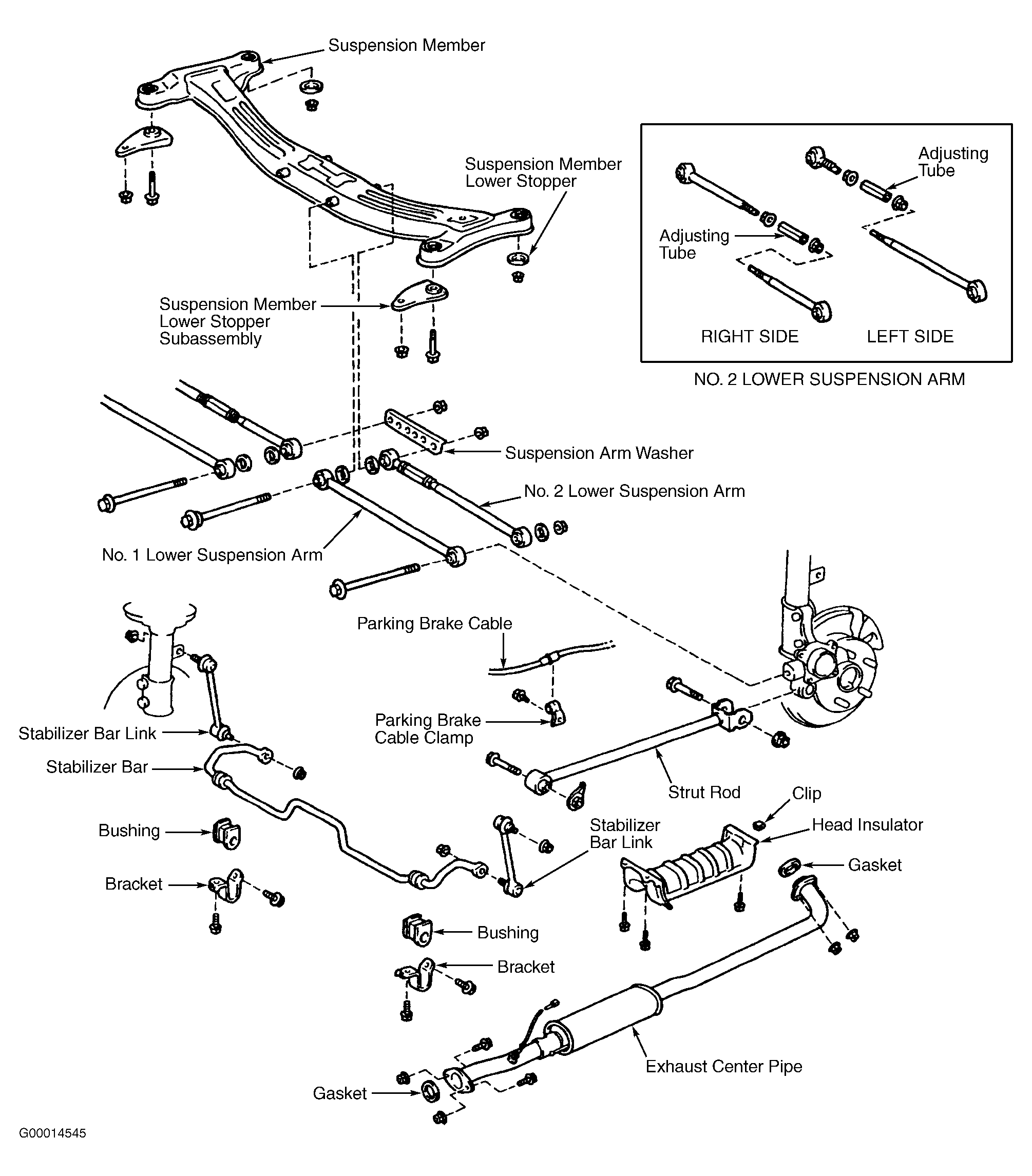

  1. Raise and support vehicle. Remove rear wheels. Remove exhaust center pipe. Disconnect parking brake cable. Remove attaching bolts and nuts. Remove strut rod. See Figure.
  2. Remove 3 nuts and washers. Remove No. 2 lower suspension arm. Remove "LH" and "RH" stabilizer brackets.
  3. Support suspension member with jack. Remove 4 nuts, 2 bolts and suspension member lower stoppers. Remove lower suspension member. Remove No. 1 lower suspension arm with 2 bolts and washer.
