Installation (GS300 & GS400)

To install, reverse removal procedure. Align reference marks made during removal. Tighten bolts to specification. See TORQUE SPECIFICATIONS . Check wheel alignment. See SPECIFICATIONS & PROCEDURES article in WHEEL ALIGNMENT.

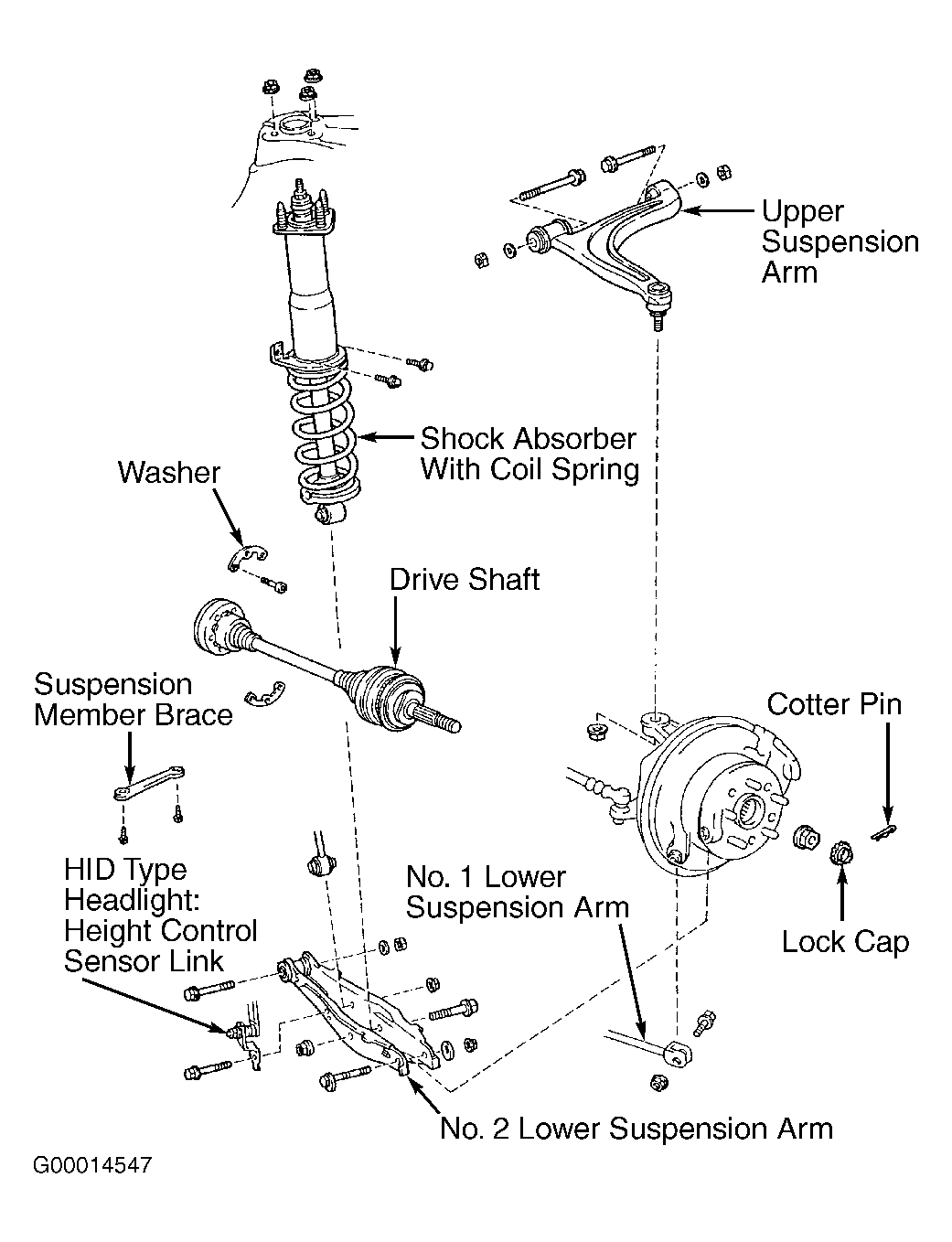

Fig 1: Exploded View Of Rear Suspension (GS300 & GS400)
G00014547Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
