Shaft Seal: Installation

  1. Lubricate new "O" ring with refrigerant oil and install using "O" Ring Installer (J-33011). Expand seal using shaft "O" ring installer. Insert installer into compressor until it bottoms. Move slide on installer downward until "O" ring is released into lower groove. Rotate installer to seat "O" ring and remove installer.
  2. Lubricate shaft seal with refrigerant oil. Install shaft seal onto Seal Remover/Installer (J-23128-A). Install shaft seal so flared side of lip seal is installed toward compressor. Install Seal Protector (J-34614) into shaft seal lip and position seal protector over compressor shaft.
  3. Push shaft seal into compressor using a rotary motion until seal bottoms. Use care to not move "O" ring. Remove installer. Install new snap ring with flat side against seal. Using seal remover/installer, push snap ring into snap ring groove. Clean excess refrigerant oil from compressor shaft and neck. Install clutch plate and hub assembly onto compressor shaft. See CLUTCH COIL & BEARING ASSEMBLY .

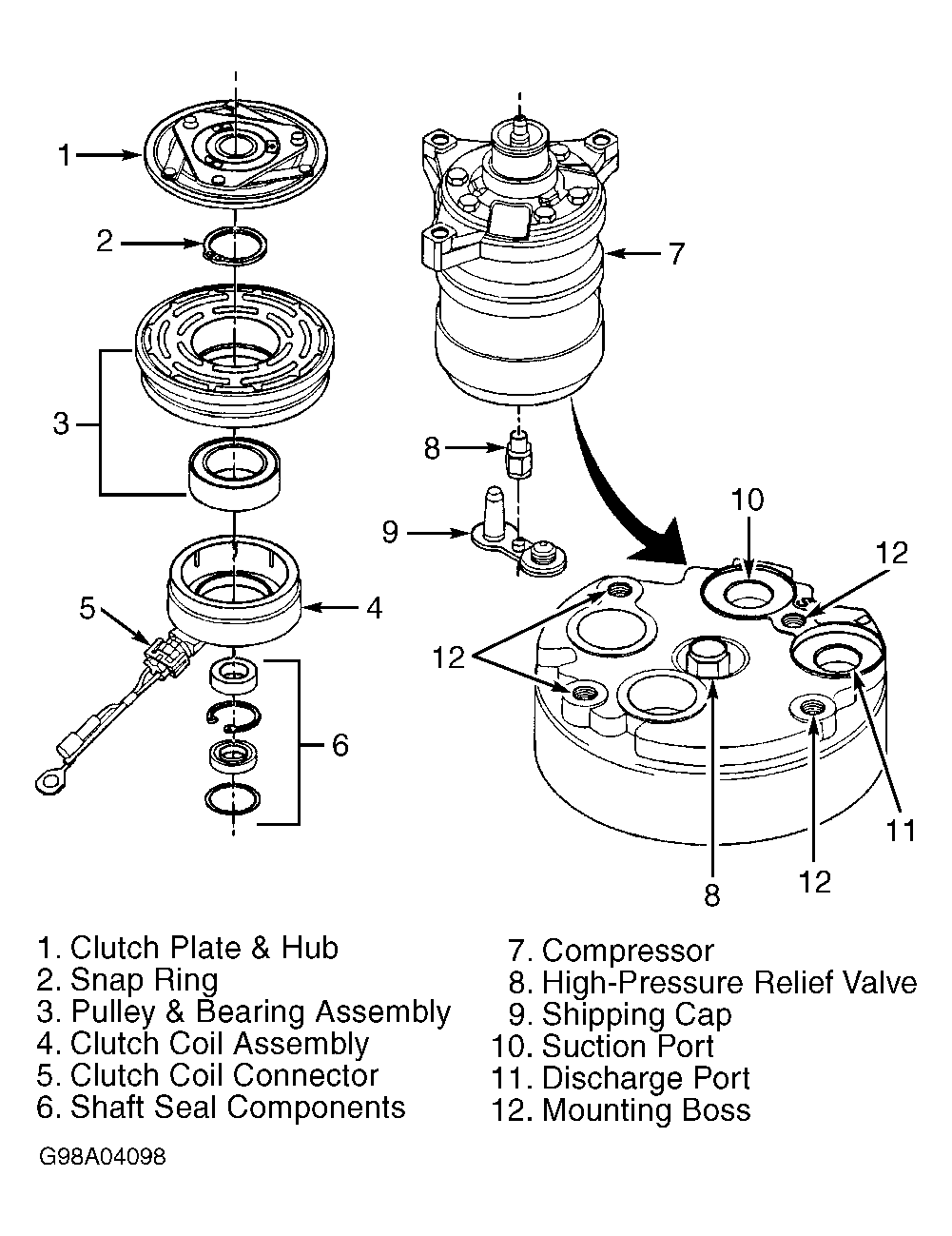

Fig 1: Exploded View Of Compressor (Harrison HD6/HT6 6-Cyl.)
G98A04098Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
