Rear Brake Pads: Removal

  1. Raise and support vehicle. Remove rear wheels. Check brake pad thickness. See DISC BRAKE SPECIFICATIONS .
  2. On ES300 and RX300 2WD, remove flexhose bracket from shock absorber. On all models, hold bottom sliding pin and remove installation bolt. Without disconnecting flexhose, lift bottom of brake caliper up, and suspend it using wire.

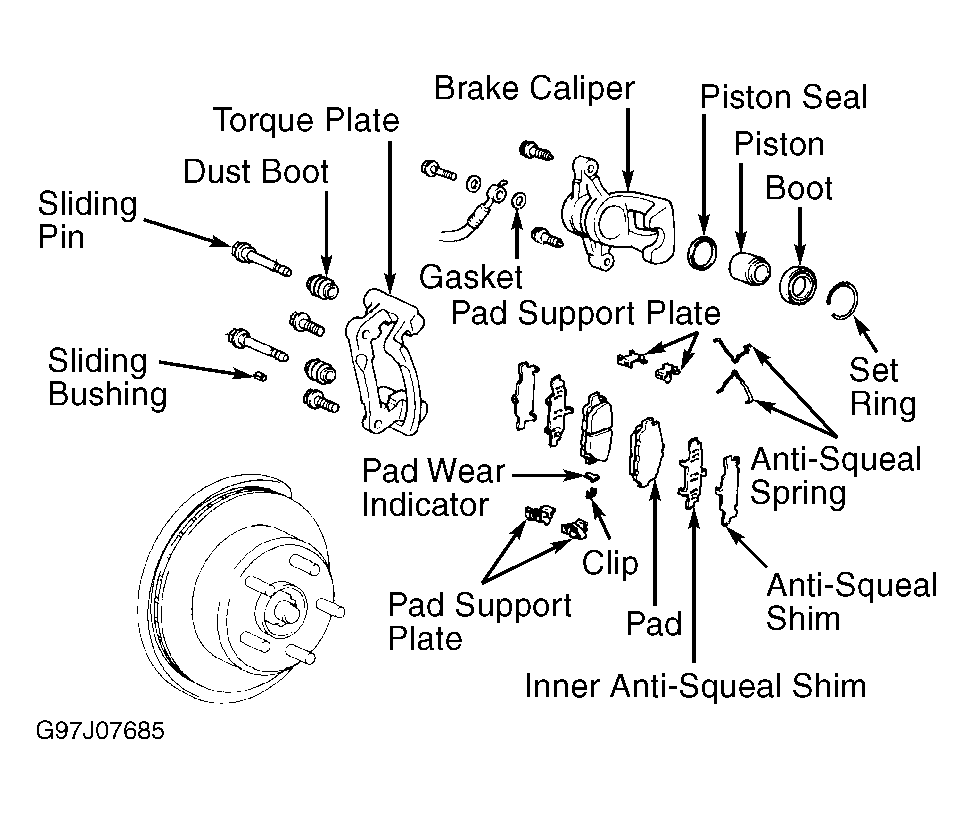

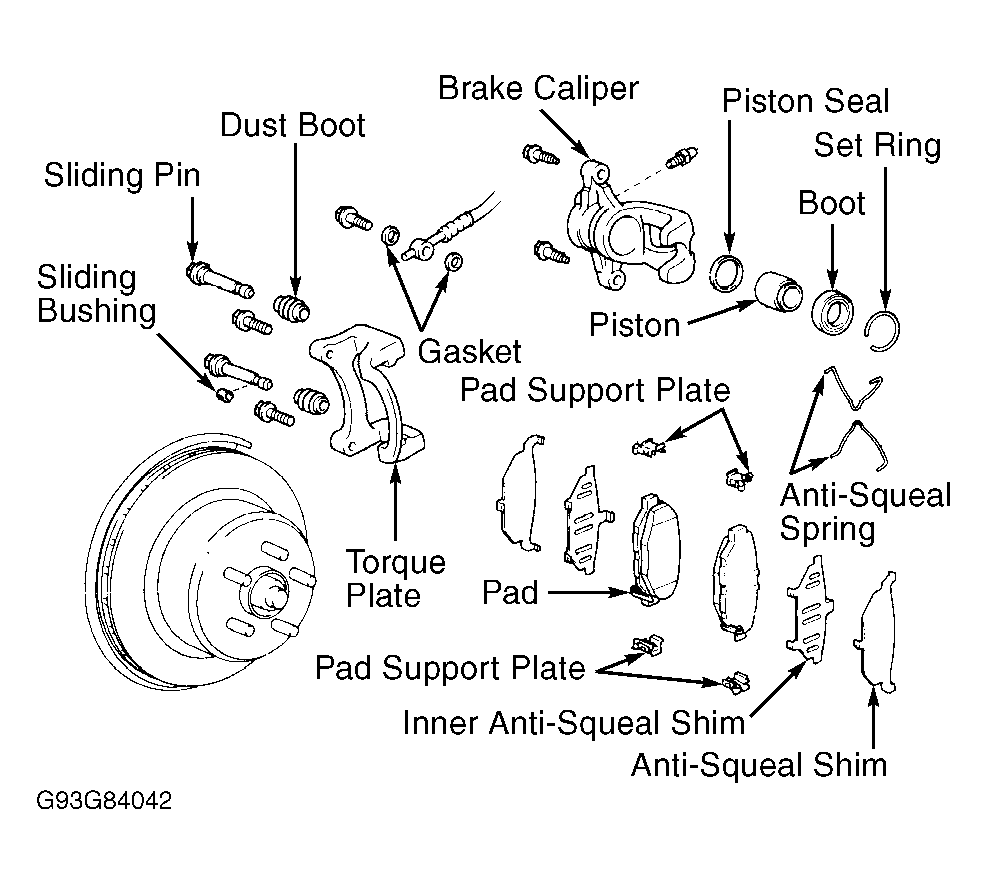

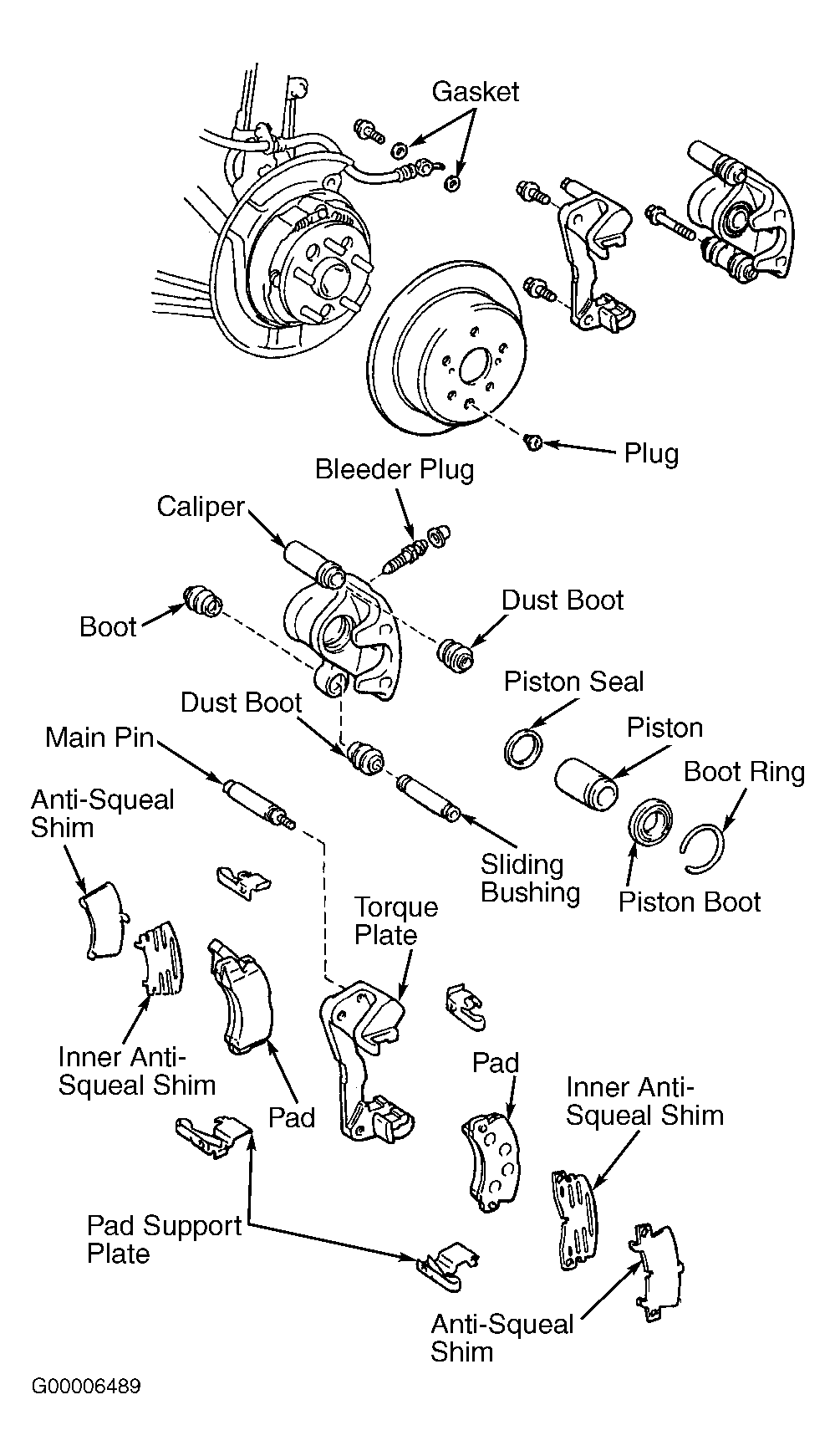

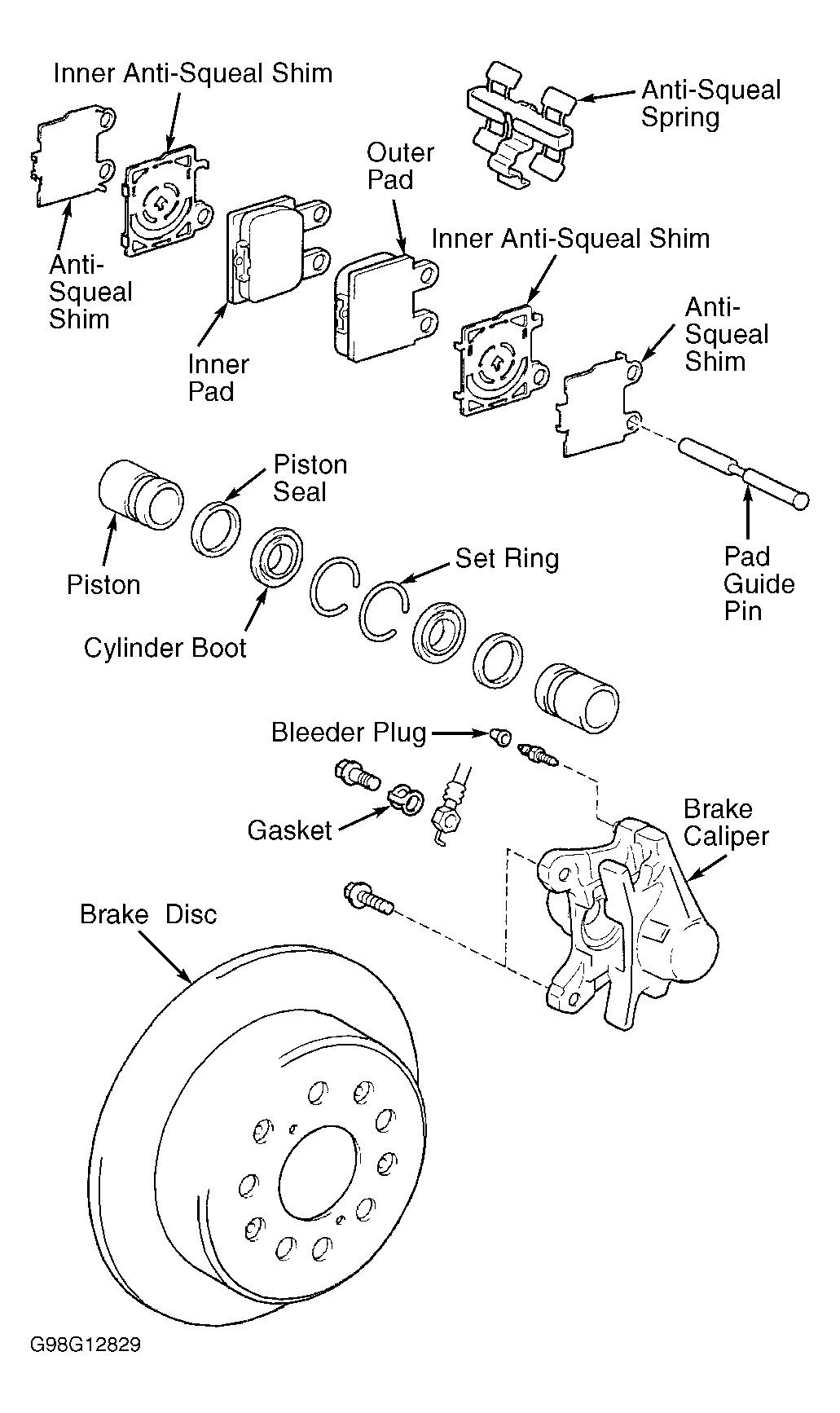

  3. Remove 2 brake pads, 4 anti-squeal shims and 4 pad support plates. See Figure,FigureFigure or Figure . Check rotors for minimum thickness and lateral runout.
