Parking Brake: Removal

Remove rear wheels. Remove 2 mounting bolts and remove disc brake assembly. Support disc brake assembly so that flexhose is not stretched. Using paint, place match marks on disc and hub for installation reference. Remove disc brake rotor. If disc brake rotor cannot be removed, remove adjustor hole plug and loosen parking brake shoe adjustment.
Remove 2 parking brake shoe return springs. See Fig 1. Remove shoe strut with spring. Remove front shoe hold-down cup, spring, backing plate and pin. Remove front and rear shoes, adjuster and tension springs. Remove rear shoe hold-down cup, spring, pin and backing plate. Remove cable from parking brake lever.

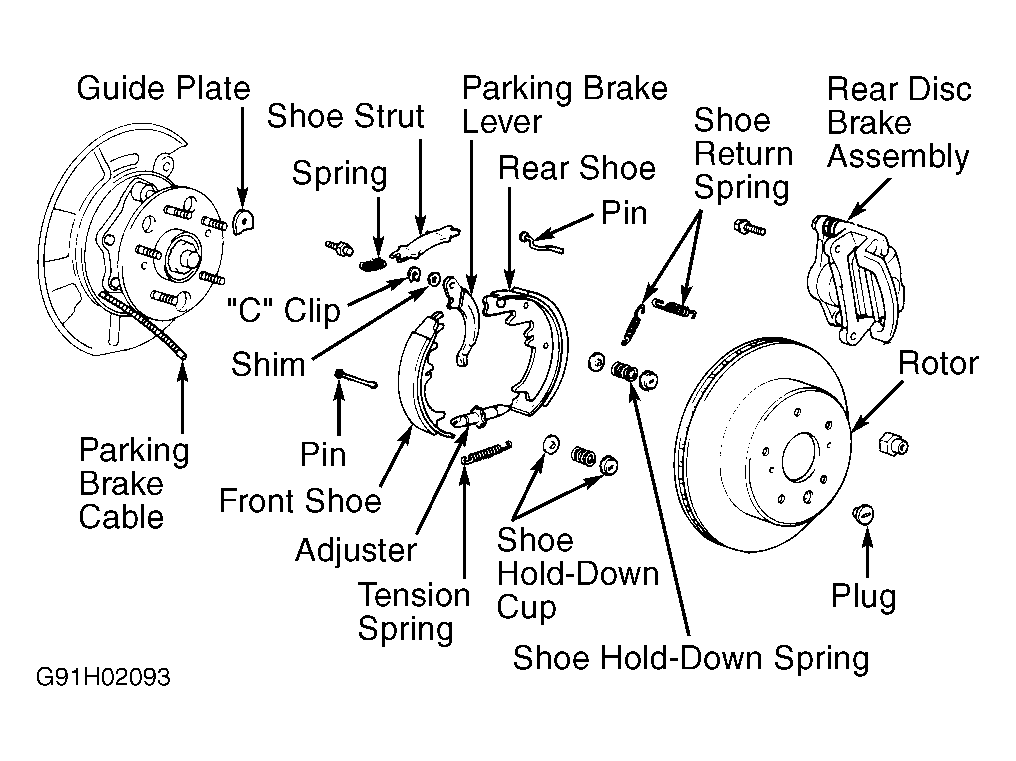

Fig 1: Exploded View Of Parking Brake Assembly
