Description & Operation
WARNING:
Deactivate air bag system before performing any service operation. See AIR BAG RESTRAINT SYSTEMS article.
DO NOT apply electrical power to any component on steering column without first deactivating air bag system. Air bag may deploy.

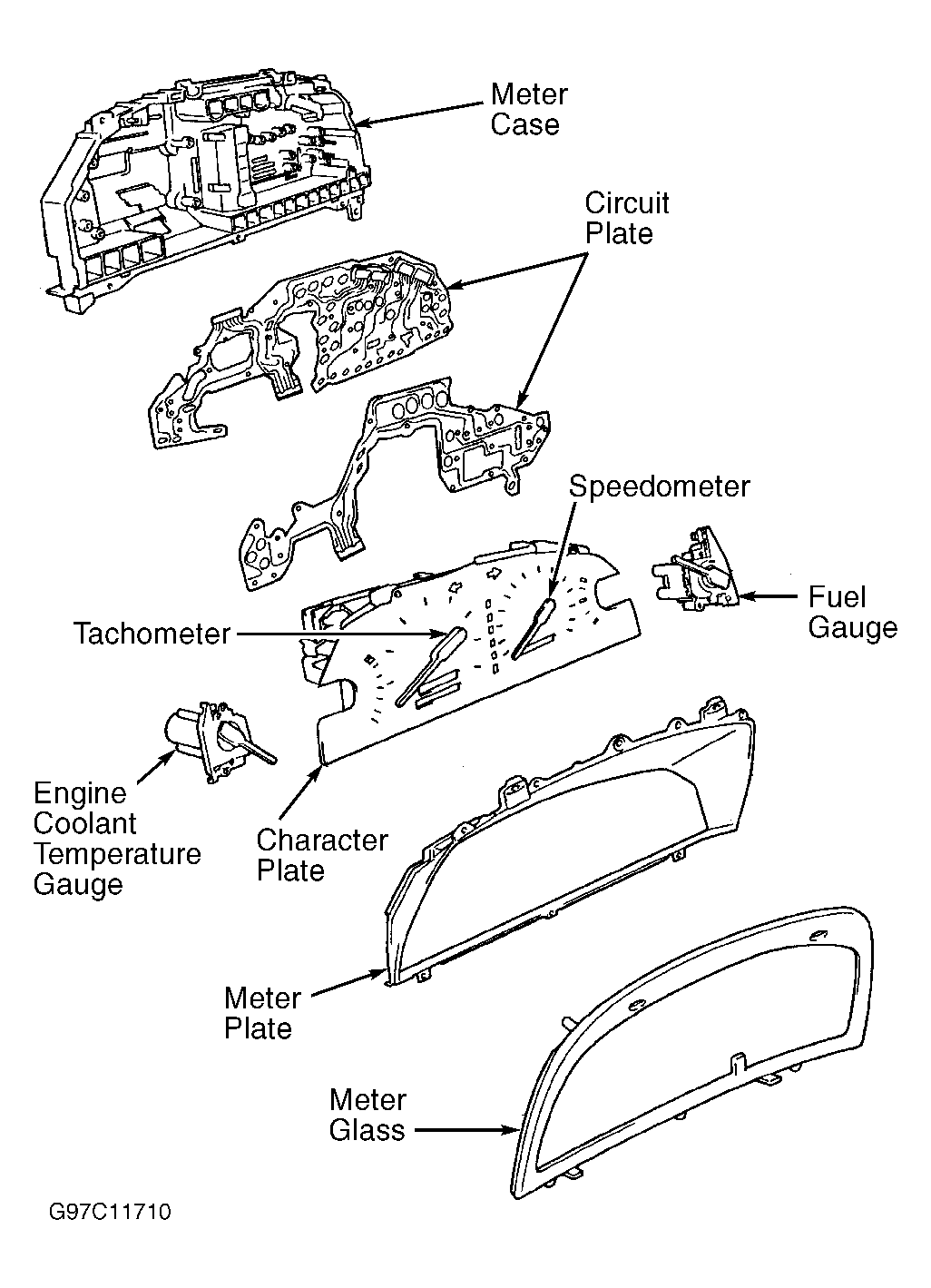

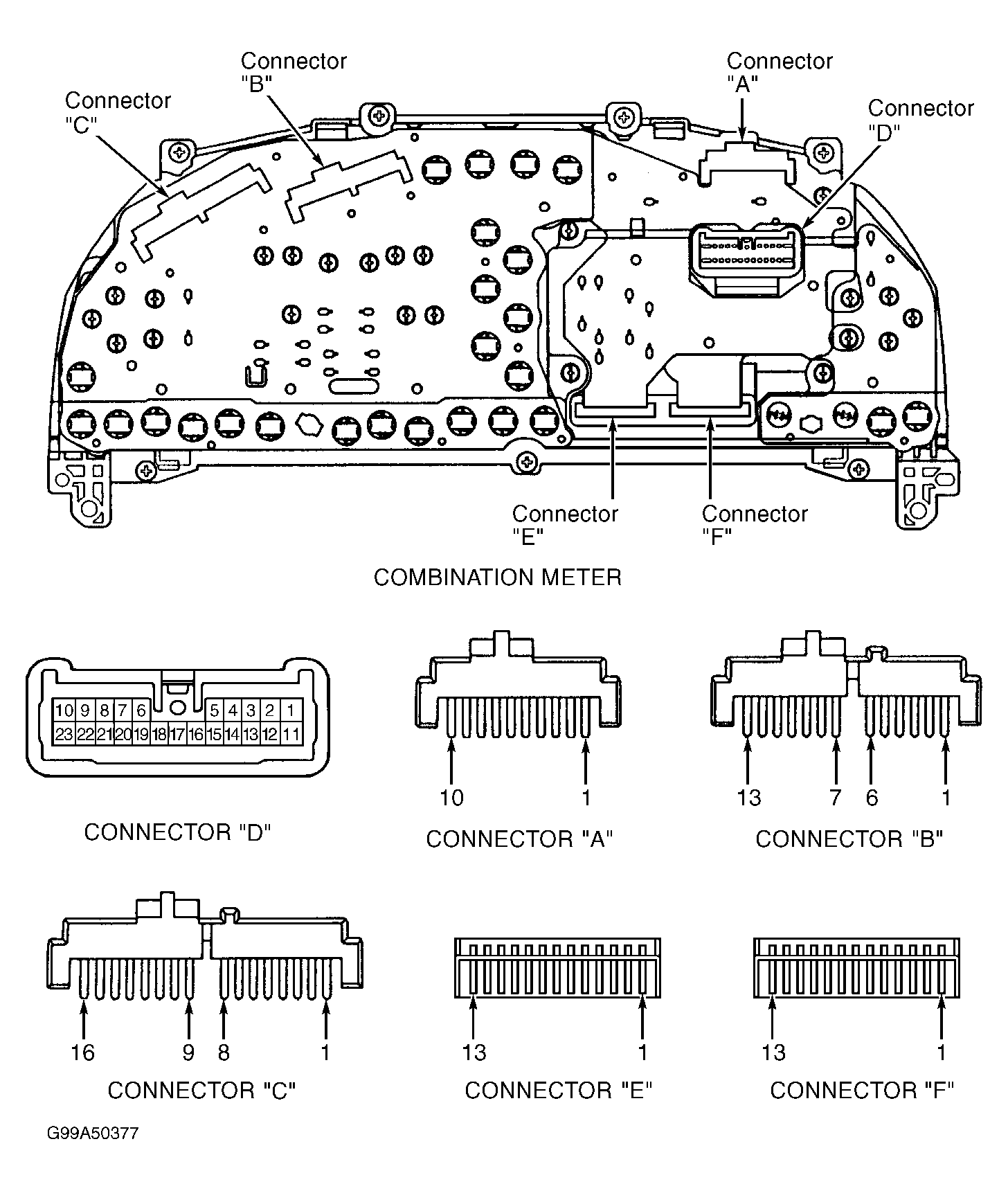

Instrument cluster uses analog (needle-type) speedometer, tachometer and gauges. A circuit plate (printed circuit) on back of instrument cluster conducts current between components. See Fig 1 and Fig 2 .
