Diagnosis & Repair
- Remove air cleaner and battery clamp cover to gain access to ABS/TRAC/VSC actuator. Disconnect ABS/TRAC/VSC actuator connectors. Check resistance between terminal No. 4 at ABS/TRAC/VSC actuator A34 connector and specified terminals at ABS/TRAC/VSC actuator A36 connector. See ABS SOLENOID RESISTANCE CHECK table. See Fig 1. If resistance is as specified, go to next step. If resistance is not as specified, replace ABS/TRAC/VSC actuator.ABS SOLENOID RESISTANCE CHECK

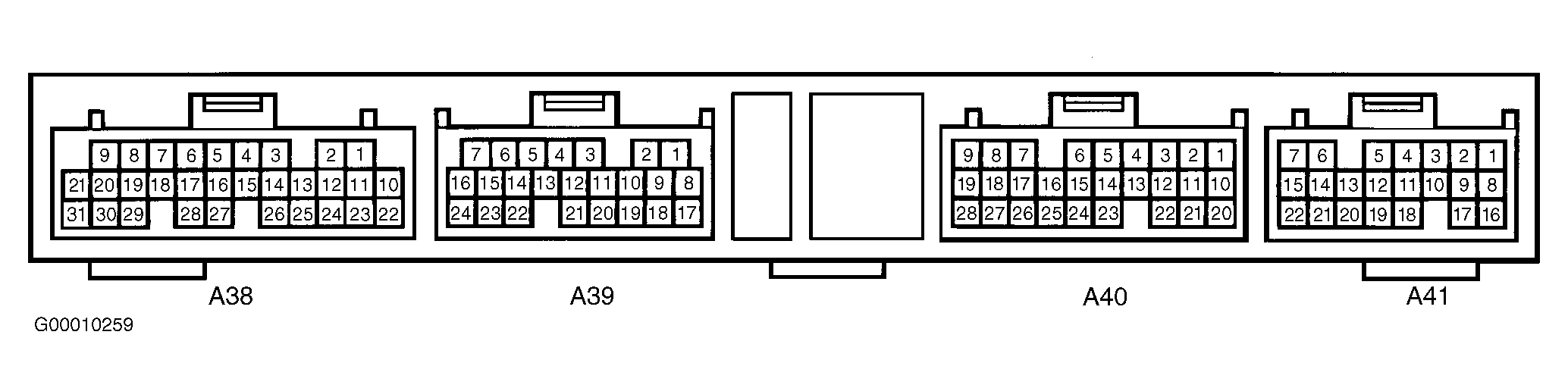

ABS/TRAC/VSC Actuator A36 Connector Terminal No. (1) Ohms 2 8-10 3 3-6 4 8-10 5 8-10 6 3-6 7 3-6 10 3-6 12 8-10 (1) Measure resistance between terminal No. 4 at ABS/TRAC/VSC actuator A34 connector and connector A36 terminals listed. See Fig 1. - Disconnect ABS/TRAC/VSC ECU harness connectors. ABS/TRAC/VSC ECU is located behind right kick panel. See Figure. Check for open or short in ABS solenoid circuits between ABS/TRAC/VSC actuator and ABS/TRAC/VSC ECU. See ABS SOLENOID CIRCUIT CHECK table. See Figure and Fig 1 . Repair wiring as necessary. If wiring is okay, clear DTCs. See CLEARING DIAGNOSTIC TROUBLE CODES under DIAGNOSIS & TESTING. Test drive vehicle and retrieve codes. See RETRIEVING DIAGNOSTIC TROUBLE CODES under DIAGNOSIS & TESTING. If code is still present, replace ABS/TRAC/VSC ECU.
ABS SOLENOID CIRCUIT CHECK
| ABS/TRAC/VSC Actuator A36 Connector Terminal No. | Wire Color | ABS/TRAC/VSC ECU Connector (Terminal No.) |
|---|---|---|
| 2 | Blue/Red | A38 (21) |
| 3 | Blue | A41 (8) |
| 4 | Yellow/Black | A41 (16) |
| 5 | Violet/White | A41 (7) |
| 6 | Yellow | A38 (9) |
| 7 | Light Green/Red | A38 (7) |
| 10 | Blue/Black | A41 (1) |
| 12 | Red | A38 (21) |
