Rear Suspension (G3260211)

Torque Specification

NOTE: Numbers with a green background are a single use components.

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM		LB-FT		LB-IN

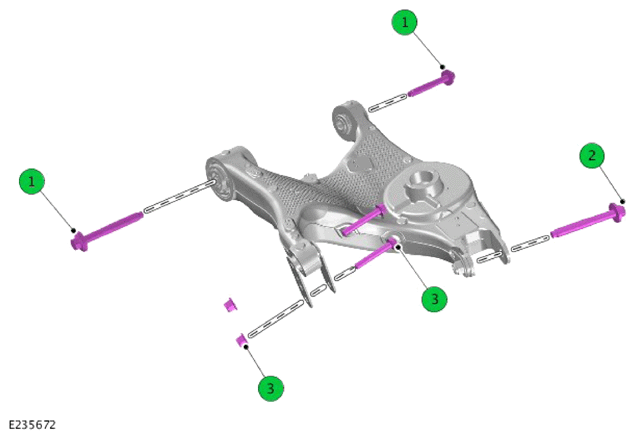

1	Lower control arm inner bolt to subframe	Stage 1: 70	Stage 2: 240°	Stage 1: 52	Stage 2: 240°	-
2	Lower control arm outer nut and bolt to wheel knuckle	Stage 1: 70	Stage 2: 240°	Stage 1: 52	Stage 2: 240°	-
3	Lower control arm integral link nuts and bolts	Stage 1: 48	Stage 2: 60°	Stage 1: 35	Stage 2: 60°	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

NOTE: Torque must be applied to the bolt.

TORQUE SPECIFICATION

	DESCRIPTION	NM		LB-FT		LB-IN

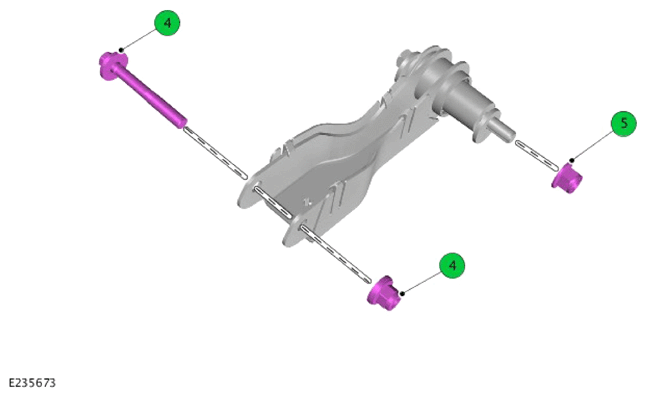

4	Toe link outer nut and bolt to wheel knuckle	Stage 1: 60	Stage 2: 180°	Stage 1: 44	Stage 2: 180°	-
5	Toe link inner nut and bolt to subframe	Stage 1: 70	Stage 2: 60°	Stage 1: 52	Stage 2: 60°	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM		LB-FT		LB-IN

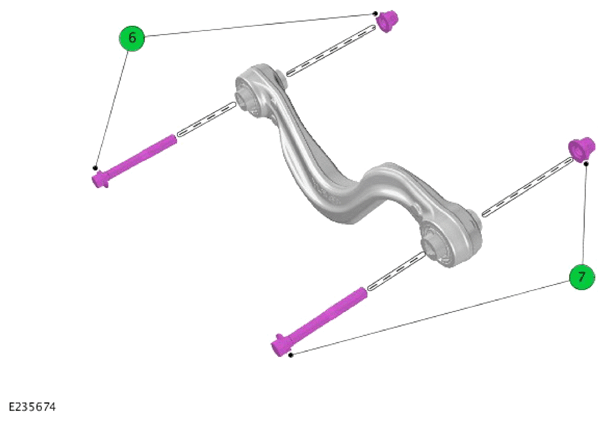

6	Upper control arm inner nut and bolt	Stage 1: 40	Stage 2: 180°	Stage 1: 30	Stage 2: 180°	-
7	Upper control arm outer nut and bolt	Stage 1: 40	Stage 2: 180°	Stage 1: 30	Stage 2: 180°	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM		LB-FT		LB-IN

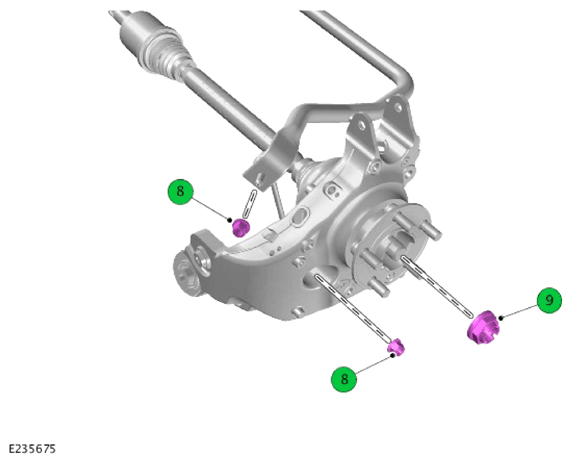

8	Stabilizer bar link nut	70		51		-
9	Halfshaft nut	Stage 1: 300	Stage 2: Loosen 90°	Stage 1: 221	Stage 2: Loosen 90°
-		Stage 3: 80	Stage 4: 60°	Stage 3: 59	Stage 4: 60°
		Stage 3: 100	Stage 4: 90°	Stage 3: 74	Stage 4: 90°	-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM		LB-FT		LB-IN

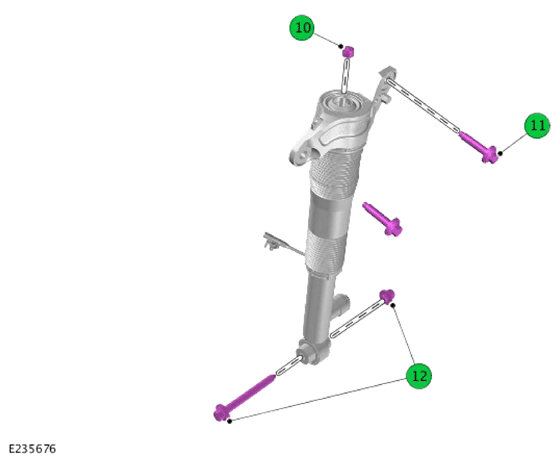

10	Shock absorber top nut	30		22		-
11	Shock absorber upper bolts	Stage 1: 60	Stage 2: 60°	Stage 1: 44	Stage 2: 60°	-
12	Shock absorber lower nut and bolt	170		125		-

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM		LB-FT		LB-IN

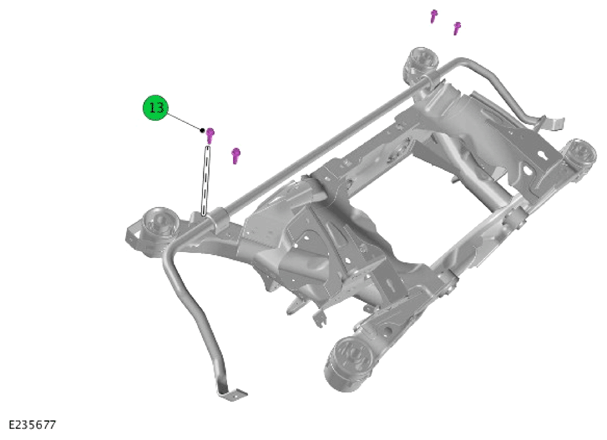

13	Stabilizer bar bracket bolt	60		52		-

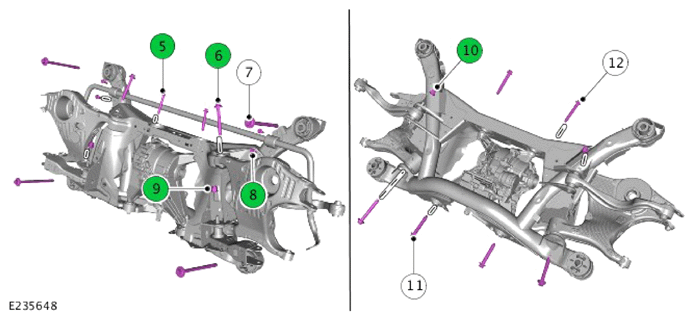

Rear Subframe Specification

COMPONENT TORQUE LOCATION
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM		LB-FT		LB-IN
5	Rear lower control arm nuts	70		51		-
6	Rear lower control arm bolts	Stage 1: 70	Stage 2: 240°	Stage 1: 51	Stage 2: 240°	-
7	Rear subframe to body bolts	Stage 1: 110	Stage 2: 120°	Stage 1: 81	Stage 2: 120°	-
8	Rear stabilizer bar bolts	60		44		-
9	Tie-rod nuts	Stage 1: 70	Stage 2: 60°	Stage 1: 51	Stage 2: 60°	-
10	Rear upper control arms nuts	Stage 1: 40	Stage 2: 140°	Stage 1: 29	Stage 2: 140°	-
11	Rear Drive Unit (RDU) front bolts	175		129		-
12	RDU rear bolts	110		81		-
