Wheel Knuckle (G2296782): Removal

CAUTION:

If a new wheel knuckle or wheel hub is to be installed a new wheel bearing will be required.
Do not use air tools to remove or install the halfshaft nut.
The suspension arm nuts and bolts must be tightened with the suspension arms in the normal ride position. Failure to follow this instruction may result in premature failure of the bush.
To prevent damage to the Constant Velocity joint (CV), do not allow the halfshaft to hang unsupported or allow the CV joints to over articulate.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

The following step(s) applies to:

All vehicles

Before replacing the wheel knuckle, make sure to have followed the diagnosis and testing procedure.
Refer to: SUSPENSION ARMS .
Raise and support the vehicle on a suitable 2 post lift.
Refer to: JACKING AND LIFTING .
Remove the wheel and tire.
Refer to: WHEEL AND TIRE .

The following step(s) applies to:

4WD vehicles
NOTE: This step requires the aid of another technician.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

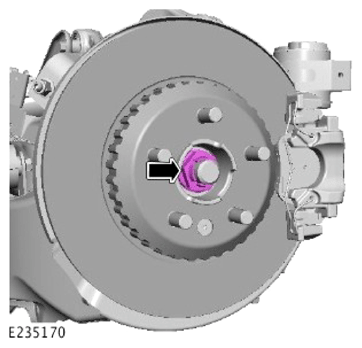

Apply the foot brake and remove the halfshaft nut.

The following step(s) applies to:

All vehicles
Remove the shock absorber.
Refer to: SHOCK ABSORBER .
Remove the brake disc.
Refer to: BRAKE DISC .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

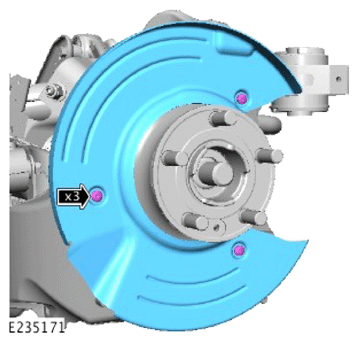

- Remove the 3 bolts.
- Remove the brake disc backplate.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

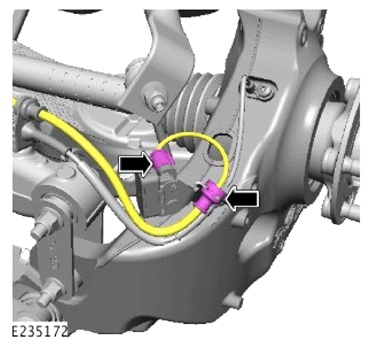

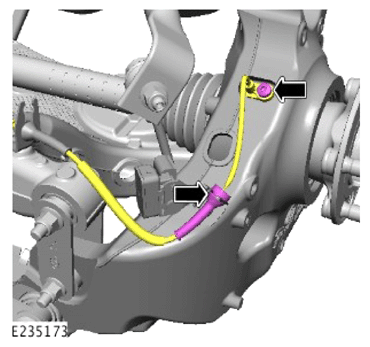

- Disconnect the electrical connector.
- Release the accelerometer sensor wiring harness.
- Reposition the accelerometer sensor wiring harness away from the wheel knuckle.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the bolt.
- Reposition the wheel speed sensor away from the wheel knuckle.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

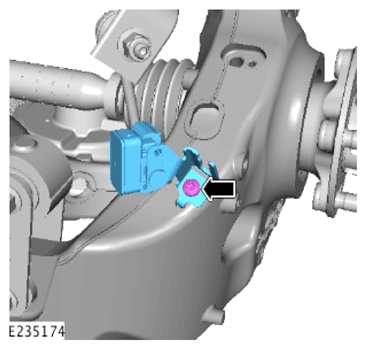

- Remove the bolt.
- Remove the accelerometer sensor.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

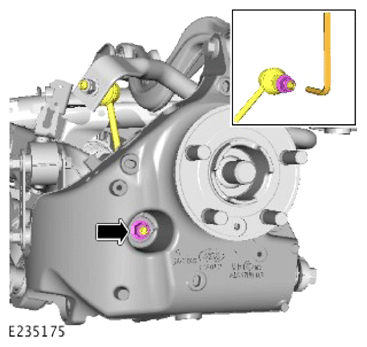

- Remove and discard the nut.
- Reposition the stabilizer bar link.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

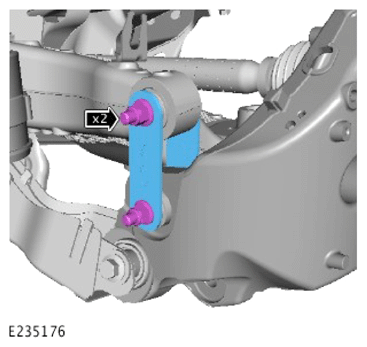

- Remove and discard the 2 nuts and bolts.
- Remove the integral link.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

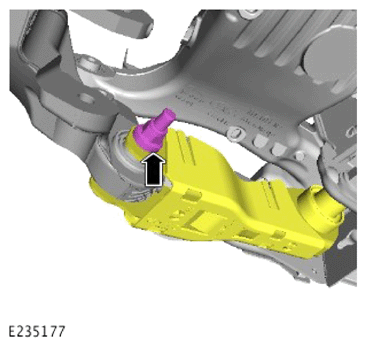

- Remove and discard the nut and bolt.
- Reposition the tie-rod away from the wheel knuckle.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

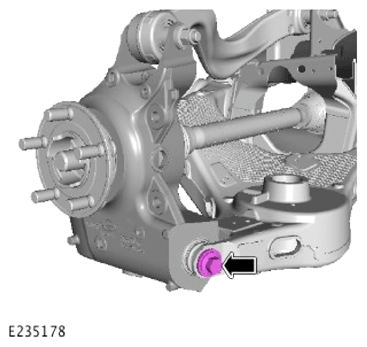

Remove and discard the lower control arm to wheel knuckle nut and bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

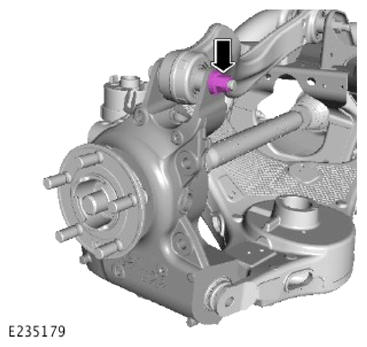

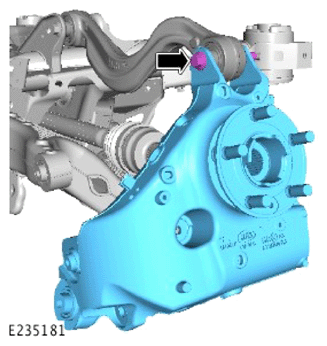

Remove and discard the upper control arm to wheel knuckle nut.

The following step(s) applies to:

4WD vehicles
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

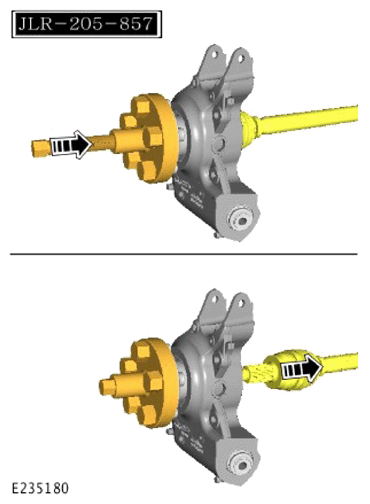

Use the special tool too release the halfshaft.

Special Tool(s): 205-857
Remove the special tool.
The following step(s) applies to:

All vehicles
CAUTION: This step requires the aid of another technician.

NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove and discard the upper control arm to wheel knuckle bolt.
- Remove the wheel knuckle.
